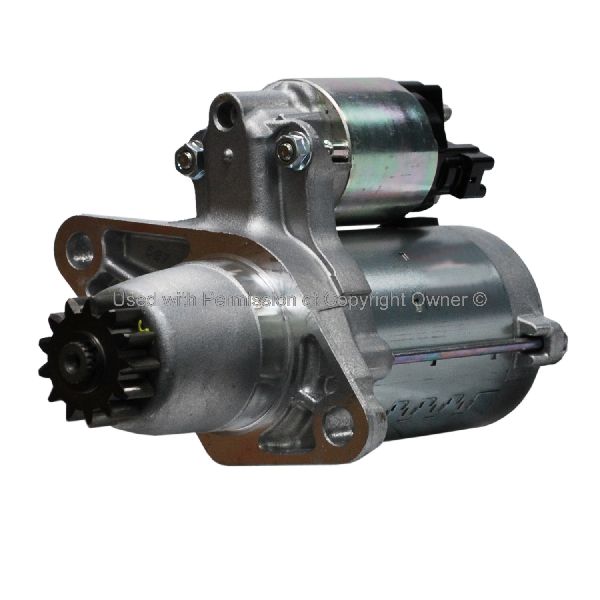

A Guide to the Starter Motor for the 2007-2012 Toyota Camry
Understand the signs of a failing starter and learn how to choose the right replacement for your Camry.
- A single, loud click with no engine crank is a classic symptom of a failed starter, not a dead battery.
- There are no recalls or major known defects for the starter on the 2007-2012 Camry; failures are typically due to age and use.
- The original Denso starter is very high quality; a remanufactured OEM unit is a strong, cost-effective replacement option.
- DIY replacement is possible and involves removing the battery and battery tray to access the two bolts holding the starter.
Is Your Camry's Starter Failing?
The starter motor on the 2007-2012 Toyota Camry is generally reliable, just like the car itself. However, after many years and thousands of starts, it will eventually wear out. It's important to know the symptoms so you can address the issue before you're stuck in a parking lot. Often, the first sign is not a complete failure, but an intermittent problem that gets worse over time.
Common Symptoms of a Bad Starter:
- Single Loud Click: You turn the key, hear a single, sharp "click" from the engine bay, but the engine doesn't crank. This often means the starter's solenoid is engaging, but the motor itself isn't turning.
- No Noise at All: If your dashboard lights and radio turn on but you get silence when you turn the key, the starter could be the culprit. This can be confused with a dead battery, but if the lights are bright, the starter is a likely suspect.
- Grinding Noise: A harsh grinding or whirring sound when you try to start the car can indicate the starter gear is not engaging properly with the engine's flywheel, or it is already damaged.
- Intermittent Starting: The car fails to start, but then starts normally on the second or third try. This is a classic sign of a starter with worn internal components, and it will eventually fail completely.
Is It the Battery or the Starter?
Many starter problems mimic a weak battery. If your car won't start, the first and easiest thing to check is the battery. If a jump-start gets the engine running immediately, your battery is the likely problem. If you hear a rapid clicking sound, that also points to a low battery. A single, loud click, however, points more directly to the starter motor.
Choosing a Replacement Starter: OEM vs. Aftermarket
Your Camry came from the factory with a high-quality starter made by Denso. Many mechanics consider these to be very durable. When it fails, you have a few options.
- New OEM (Denso): This is the highest quality and most expensive option. You are getting the exact same part that Toyota would install.
- Remanufactured OEM: A used Denso starter that has been rebuilt with new wear-and-tear components. This is a great option that balances cost and quality.
- New Aftermarket: This is where brands like ACDelco and MPA come in. A new aftermarket starter is built from all-new components, but not by the original manufacturer. Quality can range from excellent to poor. For a reliable car like the Camry, choosing a reputable aftermarket brand is a good way to save money without sacrificing dependability.
Many experienced Toyota mechanics recommend rebuilding the original Denso starter or using a remanufactured OEM unit because the core quality is so high. However, if that's not an option, a new starter from a quality aftermarket brand like ACDelco or MPA is a perfectly valid repair. MPA specializes in starters and alternators and performs extensive testing. ACDelco is a globally recognized brand that ensures its parts meet specific performance standards.
Starter Replacement Cost for 2007-2012 Toyota Camry
The cost to replace your starter can vary widely based on the part you choose and who does the work. Doing it yourself saves on labor but requires time and tools. Below are typical cost ranges.
| Part or Service | Estimated Cost |
|---|---|
| Shop Labor | $150 - $230 |
| New Aftermarket Part (ACDelco, MPA) | $104 - $205 |
| Remanufactured Part | $140 - $290 |
| New OEM Part (Denso) | $160 - $275 |
| Used OEM Part | $50 - $100 |
Frequently Asked Questions
Are there any recalls on the starter for this Camry?
No. As of late 2024, there are no specific recalls or technical service bulletins (TSBs) from Toyota or the NHTSA for starter motor failure on the 2007-2012 Toyota Camry.
Can I replace the starter myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill. The starter is located under the battery, so you must remove the battery and its tray to get access. It is held on by two bolts. The job is slightly more difficult on the V6 engine than the 4-cylinder due to tighter space. Always disconnect the negative battery terminal before beginning work.
What's the difference between a new and a remanufactured starter?
A new starter is made with 100% new components. A remanufactured starter starts with a used OEM core (the main housing), which is then disassembled, cleaned, and rebuilt with new internal parts that wear out, like brushes, contacts, and bearings. A quality remanufactured starter can be just as reliable as a new one and is a good, cost-effective option.
My old starter passed a bench test at the parts store. Could it still be bad?
Yes. A bench test at a parts store is not always accurate because it doesn't simulate the real-world load of turning an engine. A starter can have an intermittent fault that only appears when it gets hot or is under load. If tapping on the starter with a hammer makes it work, that's a very strong sign the starter itself is failing, regardless of what a bench test says.
Technical Specifications
OEM Part Numbers: 28100-20020 28100-0A010 28100-28040 28100-28041 28100-0A011 28100-20021
Voltage: 12V. The OEM manufacturer is Denso. Both 4-cylinder and V6 engines use a 12V starter, but ensure the part number matches your specific engine for correct fitment.
