A Guide to the 2007-2013 Chevrolet Avalanche Suspension Stabilizer Bar Link Kit
Eliminate front-end clunks and restore your truck's handling by choosing the right stabilizer link kit.
- A clunking noise from the front end over bumps is the #1 symptom of a bad stabilizer link.
- Always replace stabilizer links in pairs to maintain balanced handling and avoid a repeat repair.
- This is a common DIY repair, but rusted fasteners can be a challenge in some climates.
- Aftermarket brands like Delphi and Moog can offer OE-quality or even upgraded designs compared to the stock parts.
Is Your Avalanche Making a Clunking Noise?
A worn-out stabilizer bar link is one of the most common sources of noise from the front suspension. As the internal components wear, they become loose and create a distinct sound as the suspension moves. 🎬 Watch: How to identify the source of your front-end clunking. If you're hearing these noises, it's likely time for a replacement.
Symptoms of a Failing Stabilizer Link
- Clunking or Rattling Sounds: The most frequent symptom is a metallic clunking or knocking noise when driving over bumps, potholes, or uneven surfaces.
- Poor Handling: Your truck may feel less stable, especially when cornering or changing lanes at speed. This is often described as a "loose" or "floaty" feeling.
- Excessive Body Roll: You might notice the truck leans or sways more than usual during turns.
- Visible Wear or Damage: In some cases, the link may be visibly bent, or the rubber bushings may be cracked or missing. On Avalanches, it's not uncommon for the original links to rust and break completely.
Known Issues for 2007-2013 Chevrolet Avalanche
General Motors issued a Preliminary Information bulletin (PIT5049A) for this generation of Avalanche and related trucks regarding a "Rattle Squeak Clunk Bump Noise From Front Suspension." Another bulletin (TSB #15-NA-082) also addresses a clunking noise from the front of the vehicle during turns or over bumps. While these bulletins don't exclusively blame the stabilizer links, the symptoms described perfectly match those of a link failure, indicating it's a known issue on this platform.
Choosing the Right Aftermarket Stabilizer Link
The original stabilizer links on the 2007-2013 Avalanche are a simple design that can be prone to rust and wear. Aftermarket parts often provide comparable or even improved durability. Here’s a breakdown of the available brands.
Brand Tiers
- OE-Equivalent (Delphi): Delphi was an original equipment manufacturer for GM, so their parts are considered a direct, high-quality replacement. They often feature robust construction and advanced anti-corrosion coatings for longevity.
- Premium Aftermarket (Moog): Moog is well-known for its "Problem Solver" line, which often features improvements over the original design, such as greasable fittings for extended life. While some users report a decline in quality in recent years, they remain a popular choice for those wanting a heavy-duty option.
- Standard Aftermarket (Dorman, Mevotech): These brands offer a good balance of affordability and performance for daily driving. Dorman is a common, cost-effective choice, while Mevotech offers various quality tiers. They are solid options for a standard repair.
- Economy (Suspensia): This brand provides a budget-friendly option for getting the job done. It meets the basic requirements to fix the problem at the lowest cost.
| Brand | Typical Tier | Key Feature |
|---|---|---|
| Delphi | OE-Equivalent | Often an original GM supplier; high-quality, corrosion-resistant parts. |
| Moog | Premium / Heavy-Duty | Often features greasable fittings and a more robust design. |
| Dorman | Standard / Value | Cost-effective option for everyday driving needs. |
| Mevotech | Standard / Value | Balances quality and affordability; may offer heavy-duty lines. |
| Suspensia | Economy | Budget-friendly, basic replacement. |
Pro-Tip: Greasable vs. Sealed Links
Some aftermarket links (like many from Moog) come with grease fittings (zerks). These allow you to add fresh grease periodically, which can flush out contaminants and extend the part's life. However, they require regular maintenance. Sealed links, like the original parts, are maintenance-free but must be replaced when they wear out.
Frequently Asked Questions (FAQ)
Do I need to replace stabilizer links in pairs?
Yes, it is highly recommended to replace both the left and right stabilizer links at the same time. Since they experience the same amount of wear, the other side is likely not far from failing. Replacing them in pairs ensures balanced handling and prevents you from having to do the same job twice.
Is a wheel alignment needed after replacing stabilizer links?
No, a wheel alignment is not necessary after replacing the stabilizer bar links. This part does not affect your vehicle's alignment angles (caster, camber, or toe).
How difficult is it to replace the stabilizer links on a 2007-2013 Avalanche?
This is a common DIY job that is considered fairly easy. The main difficulty can be removing rusted nuts. In salt-belt regions, you may need a cutting tool to remove the old part. 🎬 Watch: Tips for removing rusted links on an Avalanche. You will need basic hand tools, and it may be necessary to use a pry bar or a jack under the control arm to help line up the bolt holes during installation.

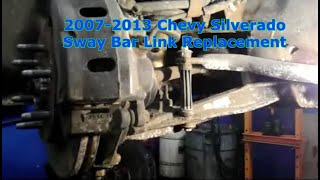

🎬 See this step-by-step stabilizer link replacement on an Avalanche.What is the difference between a stabilizer bar link and a stabilizer bar bushing?
The stabilizer bar link is the long rod that connects the end of the stabilizer bar to the control arm. The stabilizer bar bushing is the rubber mount that holds the main stabilizer bar to the truck's frame. While both can cause clunking noises, link failure is generally more common and produces a sharper, more distinct rattle over bumps.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25918049

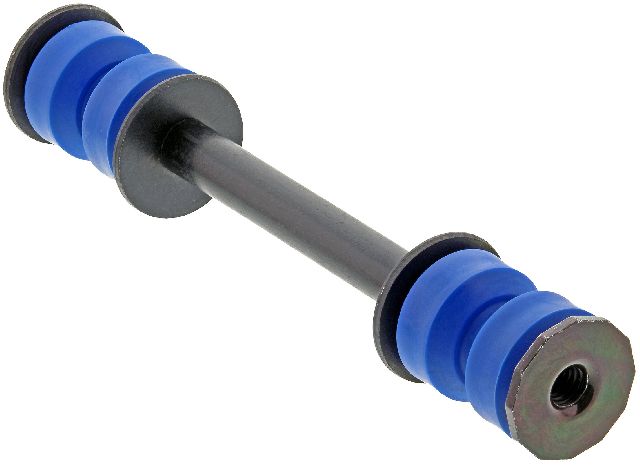

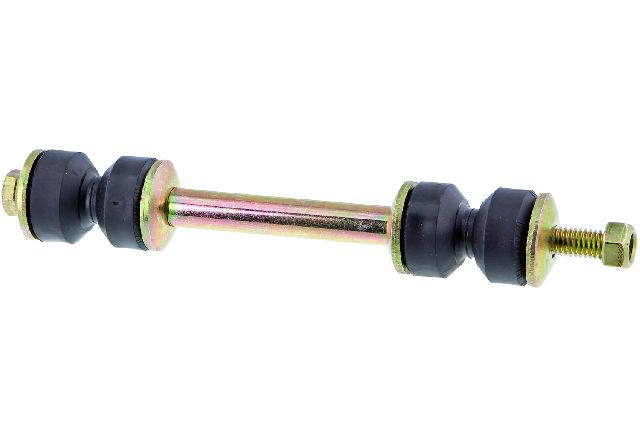

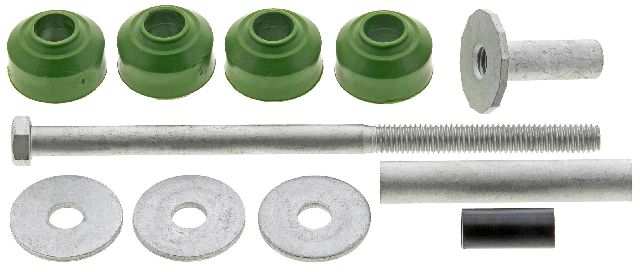

The front stabilizer link for the 2007-2013 Avalanche is a long bolt-and-bushing style assembly that connects the stabilizer bar to the lower control arm. The same part is typically used for both the left and right sides.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
