A Guide to Universal Joints for the 2007-2013 Chevrolet Avalanche
Hearing a clunk or feeling a vibration? Your Avalanche's U-joints might be the cause.
- A 'clunk' when shifting or a vibration at speed are the most common signs of a failing U-joint on your Avalanche.
- For maximum durability, choose a high-quality, non-greasable (sealed) U-joint from a brand like Dana/Spicer.
- Replacing U-joints is a DIY-possible job, but requires a press or large vise to avoid damaging parts.
- Ignoring a bad U-joint can lead to a dangerous driveshaft failure; address symptoms promptly.
Is My Avalanche's U-Joint Failing?
U-joints are wear-and-tear items. The needle bearings inside them can wear out from stress and a lack of grease. When they start to fail, your truck will give you clear warning signs. Ignoring them can lead to the driveshaft separating from the truck, which is a very dangerous and expensive failure.
Key Symptoms of a Bad U-Joint:

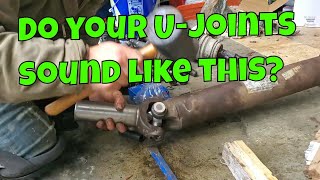

🎬 Watch: How to tell if your U-joint is bad- Clunking Noise: The most common sign is a loud 'clunk' or ringing sound when you shift from Park into Drive or Reverse. This is caused by excessive play in the worn-out joint.
- Vibration at Speed: You may feel a vibration throughout the truck that gets worse as you accelerate to highway speeds. This is often confused with an out-of-balance tire, but a U-joint vibration is felt more in the floor and seat.
- Squeaking or Chirping: A repetitive squeaking noise that matches the rotation of the driveshaft at low speeds (5-10 mph) is a classic sign of a dry, failing U-joint.
- Leaking Fluid: In some cases, severe vibrations from a bad U-joint can damage the seal at the back of the transmission, causing a fluid leak.
A Word on Factory U-Joints
The original U-joints on many 2007-2013 Avalanche models were made with a plastic injection method to hold the caps in place instead of traditional snap rings. Removing these often requires heating the yoke with a torch to melt the plastic out. 🎬 See how to service these plastic injected factory joints Be prepared for this extra step if you are replacing the original joints for the first time.
Choosing the Right Aftermarket U-Joint
When you shop for a new U-joint, you'll see two main types: greasable and non-greasable (sealed). You will also find several brands at different quality levels.
Greasable vs. Non-Greasable
- Non-Greasable (Sealed): These are solid-body U-joints and are considered stronger because the main body (cross) isn't drilled out for grease channels. High-quality sealed joints from brands like Spicer often last longer than the original factory parts and require no maintenance. This is the best choice for most owners.
- Greasable: These have a zerk fitting that allows you to add fresh grease. This can help push out water and contaminants, which is useful for trucks that see heavy off-road or boat ramp use. However, they are slightly weaker in design and require regular greasing. If you don't plan on greasing them with every oil change, a sealed joint is a better option.
Aftermarket Brand Tiers
Not all brands are created equal. For a heavy truck like the Avalanche, choosing a quality U-joint is important for safety and longevity.
- Premium (Best Quality): Dana/Spicer is widely considered the top choice. They are an original equipment manufacturer for many brands and their solid, non-greasable joints are known for being the strongest and most durable.
- High-Quality (Good Alternative): Moog and SKF are well-known aftermarket brands. Moog's quality has become more variable recently according to some mechanics, but their "Super Strength" line is still a popular choice. SKF is another reputable bearing manufacturer.
- Standard / OEM-Equivalent: ACDelco offers multiple lines. Their "Genuine GM" parts are the original factory part, while their "Professional" series is a quality aftermarket part that meets OEM standards.
- Economy: Brands like GMB offer a more budget-friendly option that meets basic OEM specifications. These can be a decent choice for a truck with a lot of miles where budget is the main concern.
Pro Tip: When replacing U-joints, it's best to replace them in pairs on the same driveshaft. Also, carefully mark the driveshaft's orientation to the yokes before you remove it. Re-installing it in the same position is critical to prevent new vibrations.
Typical Replacement Costs
The cost to replace your Avalanche's U-joints depends on the brand you choose and whether you do the work yourself.
| Item | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Single) | $20 - $75 |
| New OEM U-Joint (Single) | $50 - $200 |
| Shop Labor (1-2 Joints) | $200 - $450 |
Frequently Asked Questions
How many U-joints does my 2007-2013 Avalanche have?
A two-wheel-drive (RWD) Avalanche has two U-joints on its rear driveshaft. A four-wheel-drive (4WD) model has those two, plus two more on the front driveshaft for a total of four.
Can I replace just one bad U-joint?
Yes, but it's not recommended. If one U-joint has failed, the other one on that same driveshaft has experienced the same amount of wear and is likely to fail soon. It is more efficient and safer to replace both at the same time.
Do I need to balance the driveshaft after replacing the U-joints?
Usually, no. If you carefully mark the driveshaft and yokes before disassembly and put everything back in the same orientation, balancing is not typically needed. However, if you have a vibration after the repair, the driveshaft may be out of balance and should be checked by a specialty shop.
What tools do I need to replace a U-joint?

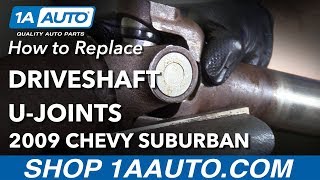

You will need standard hand tools like sockets and wrenches to remove the driveshaft. To replace the joint itself, you need a way to press the old one out and the new one in. While this can be done with a hammer and a large socket, using a bench vise or a dedicated U-joint press tool is highly recommended to avoid damaging the new joint 🎬 Watch this step-by-step replacement guide for Chevy trucks or the driveshaft yoke.

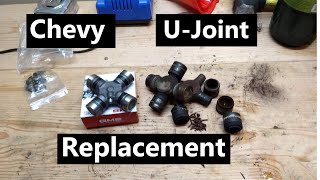

Helpful Videos
Technical Specifications
OEM Part Numbers: 89040243 89040245 88964413 89059111 23104840
The 2007-2013 Avalanche uses several U-joint sizes depending on the driveshaft material (steel or aluminum), model year, and drivetrain (2WD or 4WD). Common bearing cap diameters are around 1.188 inches. It is critical to measure your old joints or use a VIN lookup to ensure you purchase the correct replacement part.
