A Guide to the Engine Valve Cover Gasket Set for the 2007-2013 GMC Acadia
Leaking oil and a burning smell from your Acadia could mean it's time for new valve cover gaskets.
- A burning oil smell and visible leaks on the top of the engine are the most common signs of failure.
- Oil in the spark plug wells is a serious symptom that can cause misfires and requires immediate attention.
- The rear gasket is significantly harder to replace than the front, requiring removal of the intake manifold, which increases labor costs.
- While replacing the gaskets, it is highly recommended to also replace the spark plugs and intake gaskets to save on future labor costs.
Is Your Acadia's Valve Cover Gasket Failing?
The gaskets and seals on your 2007-2013 GMC Acadia work in a hot, high-pressure environment and will naturally wear out over time. When they fail, oil escapes, leading to noticeable and potentially serious problems. It's a common issue, but one that needs to be addressed to prevent further damage.
Key Symptoms of a Leaking Gasket
- Burning Oil Smell: This is often the first sign. Leaking oil drips onto the hot exhaust manifold and burns off, creating a distinct and unpleasant smell that you might notice inside or outside the vehicle.
- Visible Oil Leaks: You may see oil and accumulated grime on the side of the engine, just below the plastic engine cover. Sometimes, you'll find small puddles of oil on the ground where you park.

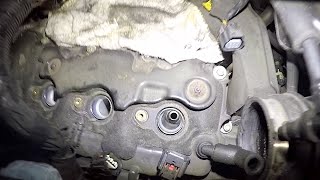

- Oil in Spark Plug Wells: When the spark plug tube seals fail, oil can pool in the wells where the spark plugs are located. This is a serious condition that can cause engine misfires and damage the ignition coils. 🎬 See how to clean oil from spark plug wells and fix misfires.
- Check Engine Light: If oil contaminates the spark plugs, it can cause a misfire, which will trigger the Check Engine Light.
Don't Ignore the Leak
While you can drive with a minor leak, it's not recommended for long. A continuous oil leak can lead to low engine oil levels, causing major engine damage. Oil dripping on other rubber parts like coolant hoses can cause them to soften and fail. A significant leak is also a potential fire hazard.
Choosing the Right Aftermarket Gasket Set
When it's time for a replacement, you have a choice between Original Equipment (OEM) and aftermarket parts. For a vehicle like the 2007-2013 Acadia, high-quality aftermarket gaskets offer a great balance of performance and value.
Brand Quality: Apex vs. Victor Gaskets
Two common aftermarket brands you'll encounter are Victor Gaskets (often Victor Reinz) and Apex.
- Victor Gaskets (Victor Reinz): This brand is a well-regarded OEM supplier for many European vehicles and is known for producing high-quality gaskets. Mechanics often consider their products to be a reliable, top-tier choice that meets or exceeds OEM specifications. They are known for using soft, pliable rubber that creates a durable seal.
- Apex: This is generally considered a budget-friendly aftermarket brand. While some users report positive experiences, they are typically chosen for their lower price point rather than for superior quality.
Pro Tip: For a critical seal like the valve cover, spending a little more on a reputable brand like Victor Gaskets can save you from having to do the job twice. The labor is the most expensive part of this repair, so using a quality gasket is a smart investment.
How Much Does a Valve Cover Gasket Replacement Cost?
The cost can vary significantly based on whether you do it yourself or hire a professional. The rear gasket on the Acadia's V6 is much more difficult to access than the front one, as the intake manifold must be removed, 🎬 Watch this video to see how to remove the valve covers. which increases labor time and cost.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $44.25 - $98.46 |
| New OEM Gasket Set | $89 - $136 |
| Shop Labor | $451 - $662 |
| Total Professional Repair | $542 - $798 |
Frequently Asked Questions (FAQ)
Why is there oil on my spark plugs?
Oil on your spark plugs is almost always caused by failed spark plug tube seals, which are part of the valve cover gasket set. These seals are designed to keep oil out of the spark plug tubes, but they become hard and brittle over time, allowing oil to leak past them and foul the plugs.
Can I replace just the leaking gasket?
Yes, but it's highly recommended to replace the entire set, including the main gaskets, spark plug tube seals, and bolt grommets. These components all degrade at a similar rate. Replacing only one part often means you'll soon have a leak from another part of the same assembly.
Is this a good DIY job for a beginner?
This job is considered moderately difficult. While the front valve cover is relatively accessible, the rear cover requires removing the entire upper intake manifold. This can be challenging for a beginner. If you are not comfortable with a multi-hour repair that involves disconnecting fuel lines and multiple sensors, it's best to leave this to a professional.
🎬 Watch: Step-by-step guide to replacing valve cover and intake gaskets.Should I replace anything else at the same time?
Absolutely. Since you'll have easy access, this is the perfect time to replace your spark plugs and ignition coils, especially if they have been contaminated with oil. You will also be removing the intake manifold for the rear gasket, so replacing the intake manifold gaskets is a wise move to prevent future vacuum leaks.

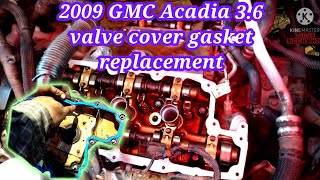

Helpful Videos
Technical Specifications
OEM Part Numbers: 12637683 12607401
The set should include two main valve cover gaskets, six spark plug tube seals, and grommets for the cover bolts. The material is typically molded rubber.
