Spark Plug Replacement Guide for 2007-2013 Hyundai Santa Fe
Keep your Santa Fe's V6 engine running smoothly with the right spark plugs and knowledge.
- Use long-life Iridium spark plugs from NGK or Denso, as they are the OEM suppliers and will maximize the time between difficult replacements.
- Replacement on the V6 engines is complex due to the rear plugs being located under the intake manifold; this is not a beginner DIY job.
- While replacing the plugs, also plan to replace the upper intake manifold gasket to prevent vacuum leaks.
- If you find oil in the spark plug tubes, your valve cover gasket is leaking and should be replaced to avoid damaging the new plugs and coils.
Signs of Failing Spark Plugs
When your Santa Fe's spark plugs are nearing the end of their life, you'll likely notice. The signs can start small but will worsen over time. Pay attention to these common symptoms:
- Rough Idle: The engine may shake or sound uneven when you're stopped.
- Engine Misfires: You might feel a hesitation or jerking during acceleration. This often triggers check engine light codes like P0300 (random misfire) or P0301-P0306 (for specific cylinders).
- Poor Acceleration: The vehicle may feel sluggish or less responsive than usual.
- Reduced Fuel Economy: You may find yourself visiting the gas station more often as the engine works less efficiently.
- Difficulty Starting: A weak spark makes it harder for the engine to turn over, especially in cold weather.
Choosing the Right Aftermarket Spark Plugs
For the 2007-2013 Hyundai Santa Fe, the original equipment manufacturer (OEM) plugs were typically made by NGK or Denso. Choosing high-quality aftermarket plugs from these brands is often the same as buying the genuine part without the dealership price tag.
Plug Material Matters:
- Iridium & Double Platinum: These are the best choices for longevity and performance, often lasting up to 100,000 miles. They provide a consistent, strong spark. Brands like NGK and Denso are top-tier choices. Bosch and Autolite also offer excellent Iridium and Platinum options.
- Standard Platinum: A good mid-range option that offers a longer life than copper plugs but less than Iridium.
- Copper/Nickel: These are the most basic and have the shortest lifespan, often needing replacement every 30,000 miles. While inexpensive, they are not recommended for the V6 engines in the Santa Fe due to the difficult replacement process for the rear plugs.
Replacing Spark Plugs on a V6 Santa Fe

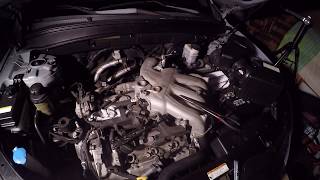

Replacing the spark plugs on the 2007-2013 Santa Fe's V6 engines is a more involved job than on a typical 4-cylinder. While the front three plugs (Bank 2) are easily accessible, the rear three (Bank 1) are located underneath the upper intake manifold. To access them, the manifold must be removed. This significantly increases the difficulty and time required for the job. Because of this complexity, it is highly recommended to use long-life Iridium spark plugs to extend the time between changes. It is also wise to replace the intake manifold gasket at the same time.
| Part Type | Price Range |
|---|---|
| New Aftermarket Spark Plugs (per plug) | $3.76 - $32.88 |
| New OEM Spark Plugs (per plug) | $21.50 - $27.75 |
| Shop Labor Cost | $217 - $319 |
| Total Professional Replacement | $307 - $471 |
Frequently Asked Questions
Which spark plug brand is best for my Santa Fe?
NGK and Denso are the original equipment suppliers for Hyundai and are highly recommended by owners and mechanics. They offer the best combination of performance and reliability. Bosch and Autolite are also reputable brands with compatible options.
How often should I replace the spark plugs?
For Iridium or Platinum plugs, the recommended interval is typically between 60,000 and 100,000 miles. However, the 2013 Santa Fe with the 2.0T engine has a shorter interval of 45,000 miles. If you use basic copper plugs, they may need to be changed as often as every 30,000 miles. Given the labor involved, long-life plugs are the most cost-effective choice.
Is this a DIY job?
For the V6 models, this is an advanced DIY job. Replacing the front three plugs is easy, but accessing the rear three requires removing the upper intake manifold, various hoses, and electrical connectors. If you are not an experienced home mechanic, it is best to leave this job to a professional.
Do I need to gap the new spark plugs?
Most Iridium and Platinum spark plugs for the Santa Fe come pre-gapped. You should not attempt to adjust the gap on these fine-wire plugs as you can easily damage them. Simply verify you have the correct part number for your vehicle. The correct gap is generally between 0.039 and 0.043 inches (1.0mm - 1.1mm).
Were there any recalls for the spark plugs?
No, there have been no specific recalls issued by the NHTSA for spark plugs on the 2007-2013 Hyundai Santa Fe. Searches found recalls for other issues like ABS modules and fuel tanks, but none related to the ignition system or spark plugs.

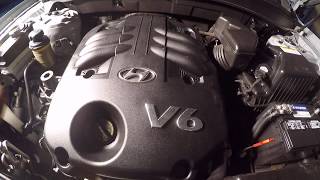

Helpful Videos
Technical Specifications
OEM Part Numbers: 18840-11051
Engine: 2.7L V6, 3.3L V6, 3.5L V6 Plug Type: Iridium, Platinum recommended Spark Plug Socket Size: 5/8 inch Gap: 0.039 - 0.043 inches (1.0mm - 1.1mm)
