Lexus ES350 Radiator: A Guide for 2007-2013 Owners
Everything you need to know about keeping your ES350's engine cool and choosing the right replacement radiator.
- Radiator failure is typically due to age, with leaks forming at the plastic side tanks.
- Denso is the OEM supplier; choosing a Denso aftermarket part is a reliable and cost-effective option.
- Confirm the leak is from the radiator itself, as water pumps can also be a source of coolant leaks on this engine.
- A DIY replacement is possible and can save you hundreds of dollars in labor costs.
Is Your ES350 Radiator Failing?
For the 2007-2013 Lexus ES350, the original radiator is a reliable part, but it won't last forever. Most failures are due to age and mileage. The most common issue is a leak developing where the plastic sides (end tanks) are crimped onto the metal center (the core). 🎬 Watch: See exactly where these radiators typically start leaking. Over many years of heating up and cooling down, this seal can weaken and start to leak coolant.
Symptoms of a Bad Radiator
Watch for these signs that your radiator needs attention:
- Engine Temperature Gauge Running Hot: This is the most obvious sign. If the needle climbs into the red or stays higher than normal, your cooling system isn't working correctly.
- Visible Coolant Leaks: You might see puddles of pink or red fluid under the front of your car. This is the Toyota/Lexus long-life coolant.
- Low Coolant Level: The coolant overflow tank (the plastic bottle near the radiator) may be consistently low, forcing you to add more coolant frequently.
- Sweet Smell: You may notice a sweet, syrupy smell from the engine bay. This is the smell of burning coolant.
- Steam from Under the Hood: If the leak is bad, coolant can spray onto hot engine parts and turn into steam.
Check for Other Leaks First
While the radiator is a common leak point, the 2GR-FE engine in your ES350 can also leak coolant from the water pump. Before ordering a new radiator, it's wise to confirm the exact source of the leak. A mechanic can perform a cooling system pressure test to pinpoint the problem.
Choosing the Right Aftermarket Radiator
You don't need to buy an expensive radiator from the Lexus dealership. High-quality aftermarket parts offer excellent performance and value. For the ES350, aftermarket radiators are a smart choice.

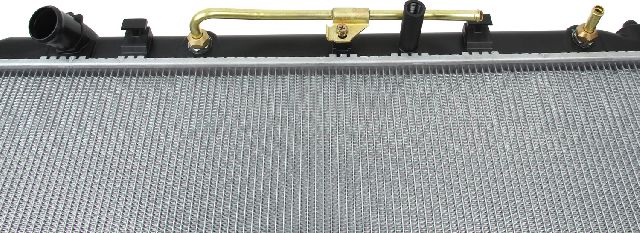

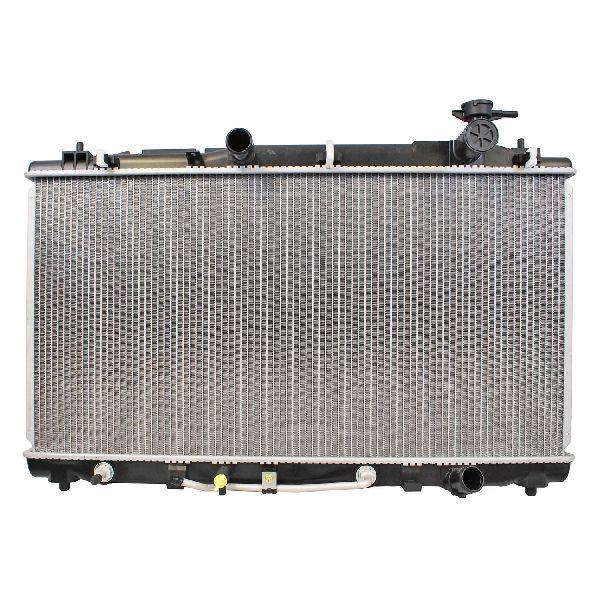

- OEM-Equivalent Brands (Denso): Denso is widely known to be the original equipment manufacturer (OEM) for many Toyota and Lexus parts, including the radiator. Choosing a Denso aftermarket radiator is like getting the original part without the dealership price tag. It's a top choice for a perfect fit and reliable performance.

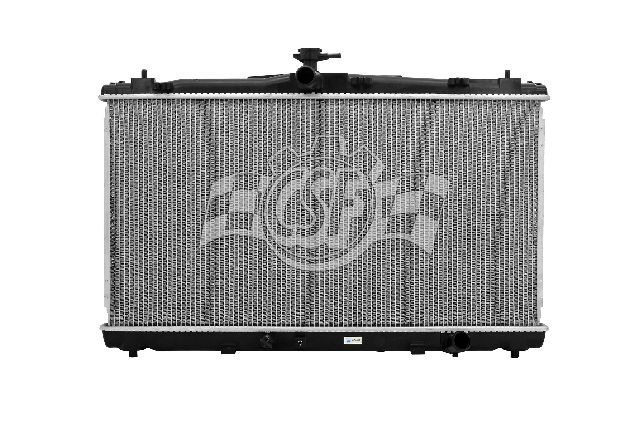

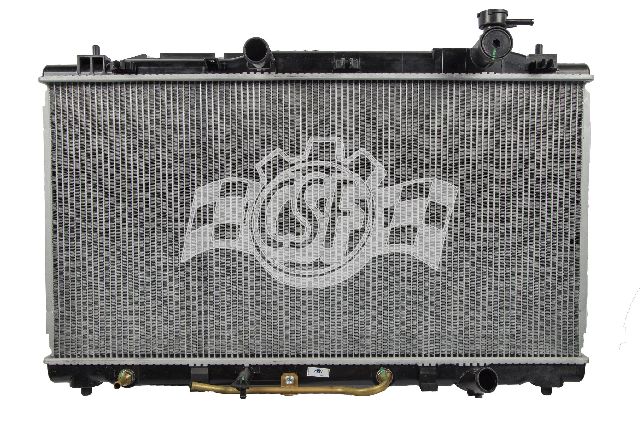

- Quality Aftermarket Brands (CSF, Nissens): Brands like CSF and Nissens have a strong reputation in the aftermarket. They build quality radiators that meet or exceed OEM specifications. Some owners have even found these brands to be more durable than the original part.

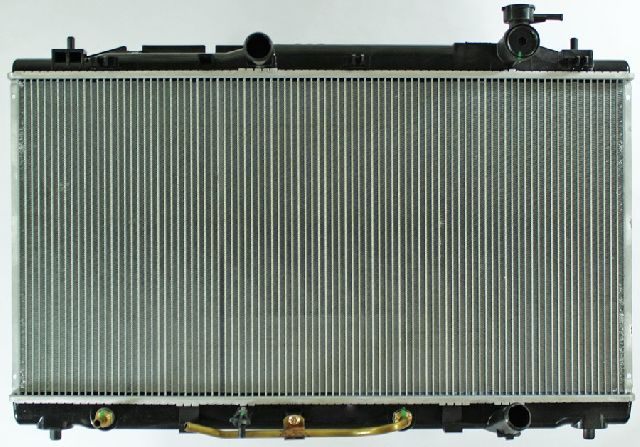

- Standard/Budget Brands (Spectra, APDI, Onix): These brands offer a cost-effective solution. They are designed to be direct-fit replacements and can be a good option if budget is your main concern. While they should function correctly, they may not have the same long-term durability or premium fin construction as higher-tier brands.
While You're In There...
When replacing the radiator, it's a good idea to also replace the upper and lower radiator hoses and the thermostat. These parts are relatively inexpensive and are exposed to the same wear and tear as the radiator. 🎬 Watch this detailed walkthrough for replacing the radiator and hoses. Replacing them all at once can save you from another repair down the road.
Replacement Cost
The cost to replace a radiator on a 2007-2013 ES350 can vary significantly depending on who does the work and what parts are used.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Radiator | $122 - $295 |
| New OEM Radiator | $430 - $600 |
| Shop Labor | $377 - $553 |
| Total Professional Job (Aftermarket Part) | $500 - $850 |
| Total Professional Job (OEM Part) | $800 - $1,150+ |
Frequently Asked Questions
Is there a recall on the 2007-2013 Lexus ES350 radiator?
No, there are no specific recalls or technical service bulletins (TSBs) from Lexus or the NHTSA for radiator failure on this vehicle. Recalls you may find for this model are typically for airbags.
Can I replace the ES350 radiator myself?
Yes, this is a DIY-feasible job for someone with some mechanical experience. It involves draining the coolant, removing the fans, disconnecting hoses, and unbolting the radiator. There are many helpful video guides online for the ES350 and similar Toyota models with the same engine. However, it can be time-consuming for a first-timer.
🎬 See this step-by-step guide on draining coolant and radiator removal.Is a Denso radiator the same as the Lexus original?
Denso is the original equipment supplier for Lexus. A Denso-branded aftermarket radiator is made to the same specifications as the original part that came in your car, making it an excellent choice for fit and quality.
What type of coolant should I use?
Your ES350 requires a pink/red, phosphate-based Asian vehicle coolant. The official type is Toyota Super Long Life Coolant. When refilling the system after a radiator replacement, it is critical to use the correct type of coolant to protect the engine and cooling system components.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16400AD020 16400-AD020

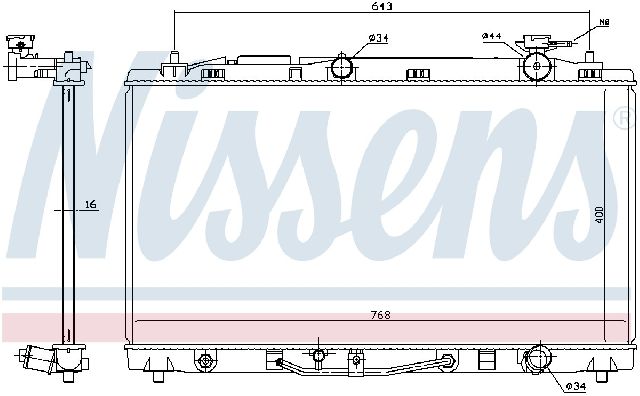

The radiator for the 2007-2013 Lexus ES350 is a cross-flow type with plastic end tanks and an aluminum core. It includes an integrated transmission fluid cooler, as the vehicle is only available with an automatic transmission. The core thickness is typically around 5/8 inch for standard replacement models.
