Lexus RX350 (2007-2013) Brake Light Switch: Diagnosis and Replacement Guide
Solve starting problems, warning lights, and brake light issues by understanding this small but critical part.
- A bad brake light switch can prevent your RX350 from starting or shifting out of park.
- This part is a common cause for illuminated ABS and VSC warning lights.
- DIY replacement is possible but physically difficult due to the switch's tight location under the dash.
- A quality aftermarket switch is a reliable and cost-effective alternative to the OEM part.
Is Your RX350 Brake Light Switch Failing?
A failing brake light switch on this generation of RX350 can cause a surprising number of problems that don't seem related to the brake lights. Because the switch is tied into the starting and stability control systems, its failure can be confusing. Recognizing the symptoms is the first step to a quick and inexpensive repair.
Common Failure Symptoms

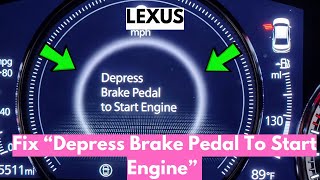

- Car Won't Start: On models with a push-button start, the vehicle requires a signal from the brake switch to confirm the pedal is pressed before the engine will crank. 🎬 Watch: How to fix the 'Depress Brake Pedal' starting error. If the switch is bad, the car won't start.
- Stuck in Park: A safety feature called the shift interlock prevents you from shifting out of "Park" without pressing the brake. A bad switch means the system doesn't get the signal, leaving your gear selector locked.
- Brake Lights Don't Work or Stay On: The most obvious symptom is brake lights that fail to illuminate when you press the pedal, which is a major safety hazard. Conversely, the switch can fail in the "on" position, leaving the brake lights permanently lit and draining your battery.
- ABS or VSC Warning Lights: Many owners report that a faulty brake light switch is the cause of illuminated ABS, VSC, or other brake-related warning lights on the dashboard.
- Cruise Control Issues: The cruise control may not engage, or it may not disengage when you press the brake pedal if the switch is faulty.
Known Issues for 2007-2013 RX350
While there are no specific NHTSA recalls for the brake light switch on these models, forum discussions among owners show that switch failure is a common problem, especially for the 2007-2009 model years. It is a frequent cause of VSC and ABS warning lights. There were recalls for other brake components like the brake actuator on some 2011-2013 models, but these are separate issues from the switch itself.
Choosing a New Aftermarket Brake Light Switch
When replacing the brake light switch, you have the choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For many parts, OEM is the safest bet, but for the RX350's brake light switch, a quality aftermarket part is a very reliable and cost-effective option. Some owners have reported OEM switches failing, while high-quality aftermarket replacements have lasted for years.
Here’s a breakdown of the available aftermarket brands:
- Premium Aftermarket (Standard Ignition, Facet): These are well-established brands known for producing reliable electronic components that meet or exceed OEM specifications. They are a solid choice for a dependable, long-lasting repair.
- Standard Aftermarket (Rostra Powertrain): These brands offer a good balance of quality and price. They are a reliable alternative to the premium brands or OEM.
- Value Brands (Replacement): Often labeled as a store brand, "Replacement" parts offer the lowest price. They can be a good option for a budget repair, but may not have the same long-term durability or warranty as more established brands.
| Part Type | Estimated Price Range |
|---|---|
| New OEM | $40 - $95 |
| New Aftermarket | $21.59 - $45.53 |
| Shop Labor | $50 - $150 |
DIY Installation Tips
Replacing the brake light switch is a feasible DIY job for those comfortable working in tight spaces. The switch is located at the top of the brake pedal arm under the dashboard. Access is very restricted. You will need a 14mm stubby wrench to loosen the lock nut. The process involves disconnecting the electrical connector, loosening the nut, and unscrewing the old switch. 🎬 See this walkthrough for replacing the switch on Toyota vehicles. When installing the new one, it's crucial to adjust it properly. The brake lights should come on with very little pedal travel, but turn off completely when the pedal is released.
Frequently Asked Questions
Why won't my RX350 start when I press the brake and the start button?
The most likely cause is a failed brake light switch. The car's computer needs to see a signal that the brake is pressed before it will allow the engine to start. If the switch is broken, that signal is never sent.
Why did my ABS and VSC warning lights suddenly come on?
A faulty brake light switch is a very common reason for these lights to appear on a 2007-2013 RX350. The stability control system uses the brake signal as an input, and a bad signal can trigger a fault in the system. Before suspecting a more expensive problem with the ABS module, it's wise to check the brake light switch.
Is this a difficult part to replace myself?
The procedure itself is simple, but access is difficult. The switch is located in a very cramped space high up in the driver's footwell. If you are not comfortable working in an awkward, tight position, it may be better to have a shop perform the replacement. The labor time is typically less than an hour.
Do I need to adjust the new brake light switch?
Yes, adjustment is critical. The switch is threaded and held in place by a lock nut. You must screw it in or out to the correct depth. If it's too far, your brake lights won't come on until you press the pedal hard. If it's too close, your brake lights may stay on all the time, draining the battery. Test it 🎬 Watch: How to properly adjust your new stoplight switch. thoroughly before finishing the installation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84340-47020 84340-04030 84340-30110
Plunger-style switch with a threaded body for adjustment, typically with a 4-pin electrical connector.
