Acura MDX Ignition Knock Sensor Guide (2007-2014)
Understand why your MDX has a check engine light and how to choose the right replacement knock sensor.
- The most common cause of failure is often rodent damage to the wiring harness, not the sensor itself.
- Replacement is a labor-intensive job requiring removal of the intake manifold, making it a 4/5 difficulty.
- Always replace the short wiring sub-harness and intake gaskets along with the sensor to ensure a lasting repair.
- Driving with a bad knock sensor is possible but not recommended, as it can lead to poor performance and potential engine damage.
Understanding Knock Sensor Failure in the 2007-2014 Acura MDX
The knock sensor on the Acura MDX V6 engine is a critical component for engine health and performance. When it fails, the engine's computer can no longer detect harmful detonation, which can lead to reduced power, poor fuel economy, and in severe cases, engine damage. The most common trouble code associated with a failing knock sensor is P0325, indicating a circuit malfunction.
A Common Point of Failure: Rodent Damage
A very frequent issue for 2007-2014 MDX owners is not the sensor failing, but rodents chewing through the wiring harness. The sensor is located in the 'V' of the engine, under the intake manifold, which creates a sheltered spot for animals to nest. Before replacing the sensor itself, it is crucial to inspect the wiring harness for any signs of damage, as this is often the true cause of the P0325 code. 🎬 Watch: Step-by-step repair for rodent damage and P0325 codes. In many cases, only the short sub-harness needs to be replaced along with the sensor.
Symptoms of a Bad Knock Sensor
A failing knock sensor will almost always trigger the Check Engine Light. Other symptoms you might notice include:
- Check Engine Light: The most common symptom, often with code P0325. 🎬 Watch: How to properly diagnose a P0325 knock sensor circuit.
- Reduced Engine Power: The vehicle's computer may switch to a 'safe mode,' retarding ignition timing to prevent damage, which results in sluggish acceleration.
- Poor Fuel Economy: With the engine not running at optimal timing, fuel consumption can increase.
- Engine Pinging or Knocking: In some cases, you may hear a metallic pinging sound, especially during acceleration, though this is not always present.
Choosing the Right Aftermarket Knock Sensor
When replacing the knock sensor on your MDX, you have a choice between OEM and a variety of aftermarket brands. Because the replacement is labor-intensive, choosing a quality part is important to avoid doing the job twice.
OEM-Tier Brands:

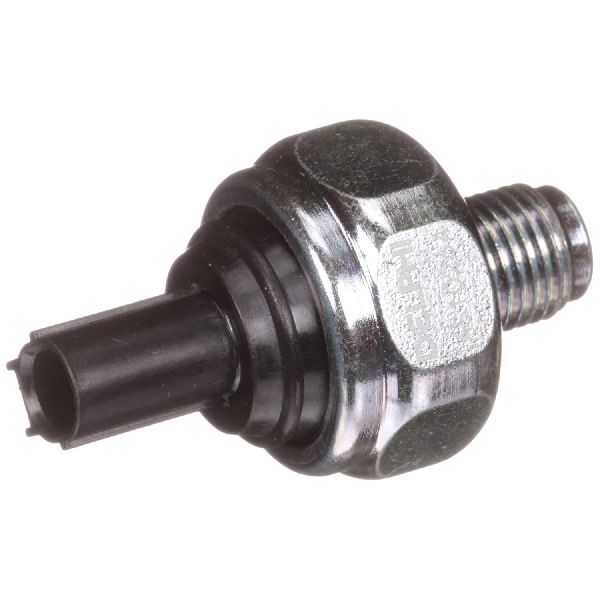

- Delphi: Often an original equipment supplier for many manufacturers, Delphi sensors are tested to OE standards and are a reliable choice. However, it's wise to verify the specific part's origin, as quality can vary.

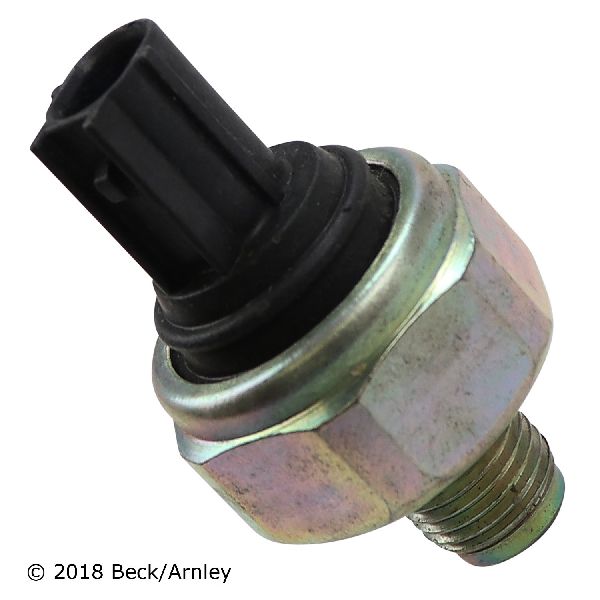

- Beck Arnley: This brand is known for sourcing parts from various manufacturers, often including the original OE supplier. They are generally considered a high-quality option for import vehicles.
Quality Aftermarket Brands:
- Standard Ignition (SMP): A well-established brand in the aftermarket, Standard Motor Products offers a broad range of sensors that are typically reliable.

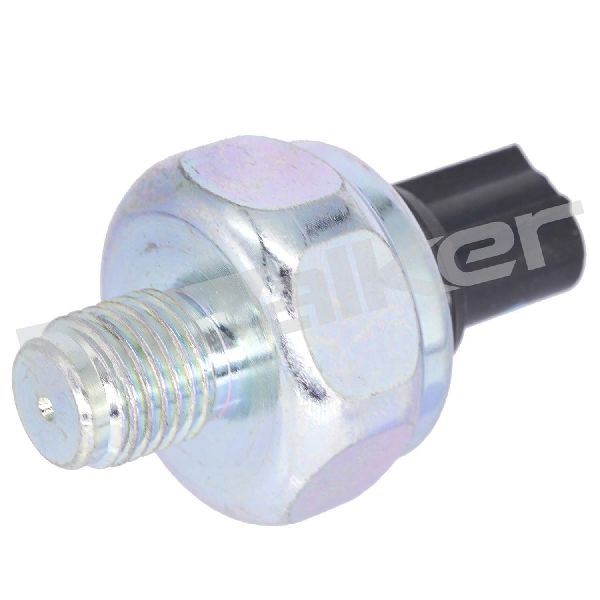

- Walker Products: Another established aftermarket manufacturer with a reputation for quality engine management components.
Budget-Friendly Options:
- Brands like Global Parts, Holstein, Motorad, and Vemo often provide a more cost-effective solution. While they can be a good value, for a labor-intensive job like this, investing in a higher-tier brand may provide more peace of mind against premature failure.
Replacement Cost
The cost to replace the knock sensor in a 2007-2014 Acura MDX can vary significantly based on who does the work and the parts used. The location of the sensor under the intake manifold makes the labor a significant portion of the cost.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $32 - $226 |
| New OEM Sensor | $60 - $140 |
| Shop Labor | $303 - $444 |
| Total Estimated Cost (Shop Repair) | $428 - $575+ |
Frequently Asked Questions (FAQ)
How many knock sensors does a 2007-2014 Acura MDX have?
The 2007-2014 Acura MDX with the 3.7L V6 engine has only one knock sensor. It is located in the valley between the cylinder banks, underneath the intake manifold assembly.
Can I drive my MDX with a bad knock sensor?
While you can drive the vehicle, it is not recommended for extended periods. The engine's computer will likely default to a conservative 'safe' mode, reducing performance and fuel efficiency to prevent potential engine damage. Ignoring the issue could lead to more severe engine problems if actual knocking occurs and goes undetected.
Is replacing the knock sensor a DIY job?
This is an advanced DIY job. It requires removing the upper and lower intake manifolds and the fuel rail to access the sensor. The process can take several hours and requires specific tools, including a torque wrench, various sockets, and potentially special pliers. If you are not comfortable with extensive engine disassembly, it is best to leave this job to a professional mechanic.
🎬 See this complete walkthrough of the knock sensor replacement process.Are there any recalls for the knock sensor on the 2007-2014 MDX?
There are no specific recalls for the knock sensor or its wiring on the 2007-2014 Acura MDX. There have been recalls and investigations for other engine-related issues on different model years, but none directly address this component for this year range.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30530-P8F-A01 30530-RCA-A02
The 2007-2014 Acura MDX uses a single knock sensor located in the V-bank of the engine, under the intake manifold.
