A Guide to the 2007-2014 Chevrolet Impala Brake Master Cylinder
If your brake pedal feels spongy or sinks to the floor, it's time to inspect your Impala's brake master cylinder.
- A spongy or sinking brake pedal is a critical symptom that requires immediate attention.
- Due to a known TSB, special brake bleeding procedures are required to remove trapped air from the ABS system after replacement.
- Always replace the O-ring between the master cylinder and brake booster to prevent vacuum leaks.
- Aftermarket brands like ACDelco Professional, Centric, and Dorman are reliable alternatives to more expensive OEM parts.
Signs of a Failing Brake Master Cylinder
A master cylinder usually fails internally before it fails completely, giving you warning signs. Ignoring these can be dangerous. The most common symptom is a change in how your brake pedal feels. 🎬 Watch this video to see common symptoms of a failing cylinder. If the internal seals wear out, fluid can bypass them, leading to a soft, spongy, or mushy pedal. You might also notice the pedal slowly sinking to the floor when you hold it down at a stoplight.
Critical Safety Warning
A sinking or spongy brake pedal means your braking system is compromised. The vehicle should not be driven until it has been inspected and repaired. A complete loss of braking pressure can occur.
Other signs include:
- Contaminated Brake Fluid: Brake fluid should be clear or light gold. If it looks dark brown or black, it could be contaminated with bits of rubber from failing internal seals.
- Brake Warning Light: A drop in fluid pressure or level can trigger the brake warning light on your dashboard.
- External Fluid Leaks: While internal leaks are more common, you might see brake fluid leaking from the rear of the master cylinder, where it mounts to the brake booster.

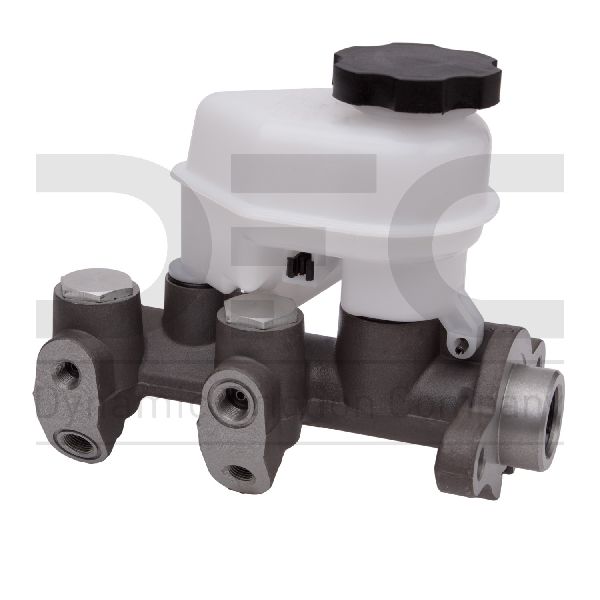

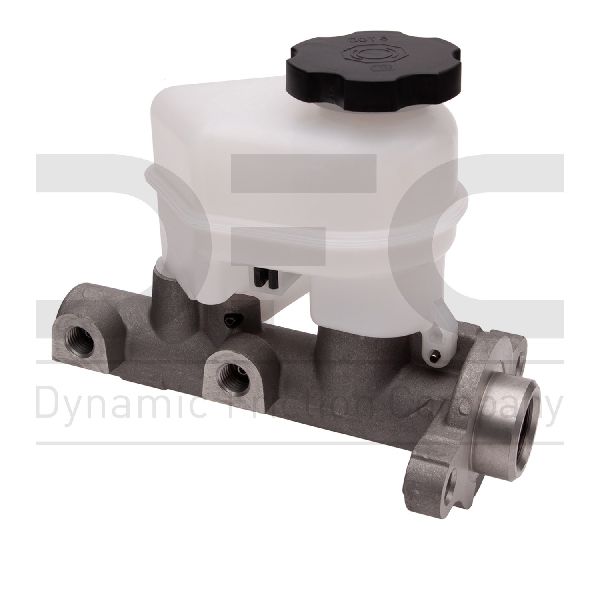

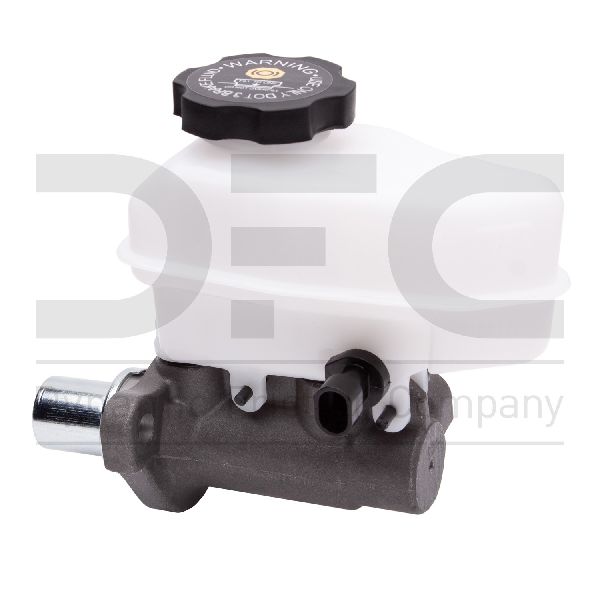

Choosing the Right Aftermarket Master Cylinder
For the 2007-2014 Impala, you have several good aftermarket options that provide reliable performance without the higher cost of an OEM part from a dealer. Aftermarket brands often match original equipment durability at a better price.
Brand Quality Tiers
- OEM-Equivalent (ACDelco): ACDelco is GM's official parts brand. Their "GM Original Equipment" line is exactly what your car was built with. Their "Professional" line offers high-quality parts that meet or exceed OEM standards and are a trusted choice for reliability.
- Premium Aftermarket (Centric, Dynamic Friction): Brands like Centric are well-regarded in the aftermarket for producing quality components. They offer a balance of performance and value, making them a popular choice for daily drivers.

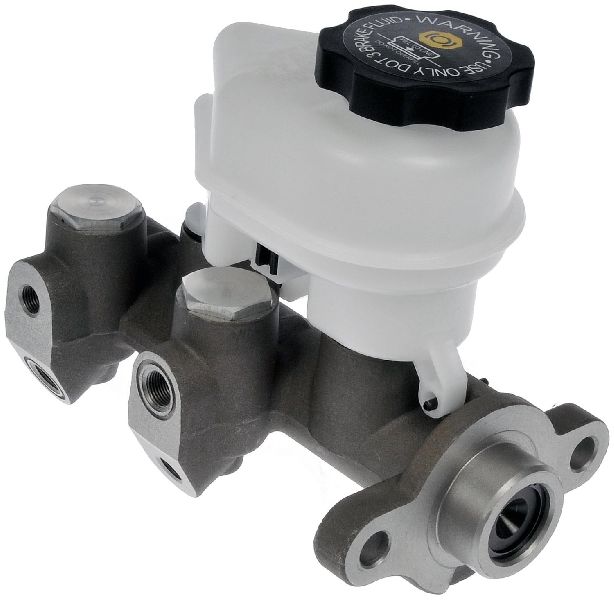

- Standard Aftermarket (Dorman): Dorman is known for re-engineering parts to fix common factory weaknesses. They provide a wide range of affordable replacement parts and are a solid choice for a standard repair.
Pro Tip: Check the O-Ring
Some braking issues on these Impalas can be caused by a deteriorated O-ring between the master cylinder and the brake booster. This can cause a hissing noise or a soft pedal. Always check and replace this O-ring when installing a new master cylinder.
Known Issues for 2007-2014 Impala
General Motors issued a Technical Service Bulletin (TSB), PIC5468D, for the 2006-2014 Impala. It notes that after replacing a brake component like the master cylinder, air can get trapped in the lines that run to the ABS module because they are routed higher than the master cylinder itself. This makes bleeding the brakes difficult and can leave the pedal feeling spongy even with a new part. The TSB outlines a specific, multi-step bleeding procedure using a scan tool to properly purge the trapped air. Following this procedure is critical for a firm brake pedal after installation.
Replacement Cost
The cost to replace a brake master cylinder varies by location and the part brand you choose. The table below gives a general estimate for the 2007-2014 Chevrolet Impala.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $85 - $239 |
| Shop Labor | $195 - $319 |
| Total Estimated Cost (Aftermarket) | $280 - $558 |
| New OEM Part (Dealer) | $242 - $329+ |
| Total Estimated Cost (OEM) | $437 - $648+ |
Cost estimates are based on national averages and may not include taxes or fees.
Frequently Asked Questions
Do I have to bench bleed the new master cylinder?
Yes, this is a critical step. Bench bleeding removes air from the master cylinder before you install it in the car. Skipping this step will make it nearly impossible to get all the air out 🎬 See a step-by-step guide on how to replace a master cylinder. of the brake system later, resulting in a spongy pedal.
What is the difference between a master cylinder and a brake booster?
The master cylinder creates hydraulic pressure. The brake booster, which the master cylinder bolts to, is a vacuum-powered device that makes the brake pedal easier to press. A hard-to-press pedal often points to a bad booster, while a soft or sinking pedal usually points to a bad master cylinder.
Were there any recalls for the Impala's master cylinder?
There were no direct recalls for the master cylinder on the 2007-2014 Impala. However, there was a recall for some 2014 models related to the electronic parking brake software. There was also a recall for some aftermarket Bosch master cylinders sold as service parts, but this did not affect factory-installed units.
Can I replace the master cylinder myself?
This is a job for an experienced DIYer. It requires specific tools like a flare nut wrench to avoid stripping brake lines, a kit for bench bleeding, and knowledge of how to properly bleed a full brake system. Due to the TSB regarding trapped air in the ABS system, a professional scan tool may be needed to perform the automated bleed procedure correctly. For these reasons, many owners choose to have a professional mechanic perform the replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15925739 22796285 23246427 23176885 22895259 84437898
The 2007-2014 Chevrolet Impala uses a dual-circuit master cylinder, typically with a plastic reservoir. It mounts directly to the power brake booster. The specific part may vary based on whether the vehicle is a standard civilian model or a police package (9C1/9C3).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
