A Ford Edge Owner's Guide to the Engine Cooling Fan Module (2007-2014)
If your Edge is overheating or the fan won't shut off, this critical part is the likely culprit.
- A fan that runs constantly and kills the battery is the #1 symptom for this part failure on the Edge.
- Driving with a failed module is risky; it can leave you stranded with a dead battery or a severely overheated engine.
- You MUST order the correct part for your vehicle depending on if it has the factory trailer tow package or not.
- This is a simple DIY replacement that requires removing the airbox and one or two screws, saving on labor costs.
Is Your Ford Edge Overheating or Draining its Battery?
A faulty engine cooling fan module is a very common issue on the 2007-2014 Ford Edge. This part is responsible for controlling the radiator fans. When it fails, it can either leave your fans running constantly, killing your battery, or prevent them from turning on at all, causing your engine to overheat in traffic. Understanding the symptoms and your replacement options can save you from being stranded.
Symptoms of a Failing Fan Module
The signs of a bad fan module are usually straightforward. The most common complaint from Edge owners is that the cooling fans continue to run at high speed long after the engine has been turned off. This will drain the battery if not addressed. The other primary symptom is the complete opposite: the fans fail to turn on when the engine gets hot or when the A/C is running. This leads to the engine temperature climbing, especially when idling or in stop-and-go traffic.
- Engine temperature gauge rises above normal
- Cooling fans run constantly, even with the engine off
- Cooling fans do not turn on at all
- A/C blows warm air when the vehicle is not moving
- A dead battery from fans that won't shut off
- Check Engine Light with codes P0480 or P0481
Important: Tow Package vs. Non-Tow Package
Ford used two different fan control modules for this generation of Edge. One is for models with the factory trailer tow package, and the other is for models without it. They are not interchangeable. Ordering the wrong one will not work. Check your vehicle's original build information or visually inspect the existing part number before ordering.
Choosing the Right Aftermarket Module
The original Ford (OEM) module can be expensive. Aftermarket brands offer a more affordable solution and are widely used for this repair. For the 2007-2014 Edge, quality aftermarket parts are considered a reliable alternative to the OEM part.
- Dorman: This is a very common replacement brand for the Edge fan module. Dorman often engineers their parts to fix the original failure points and is a popular choice for this specific problem.
- Gates: Known for quality cooling system components like hoses and belts, Gates also offers a replacement fan module that is considered a dependable option.
- Standard Ignition (SMP): A long-standing brand in the aftermarket, Standard provides a solid replacement part that meets original specifications.
Pro Tip: Given the electronic nature of this part, choosing a brand that offers a good warranty is a smart move. While all three listed brands are reputable, compare warranties when making your final decision.
Estimated Replacement Costs
The cost to replace the fan module depends on whether you do it yourself or use a repair shop. The part itself is the main expense, as labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $170 - $270 |
| New Aftermarket Part | $168 - $450 |
| Shop Labor | $100 - $150 |
| DIY Total (Aftermarket) | $168 - $450 |
| Shop Total (Aftermarket) | $268 - $600 |
Installation Overview
Replacing the fan module is a beginner-friendly job that can be done with basic hand tools. The module is mounted directly to the fan shroud in the engine bay. The process involves removing the air filter box for access, unplugging two connectors, and removing a single Phillips or 8mm screw. The entire job can typically be completed in under an hour.
Frequently Asked Questions
Is there a recall on the 2007-2014 Ford Edge fan module?
No, there are no active NHTSA recalls specifically for the engine cooling fan module on the 2007-2014 Ford Edge. While other Ford models have had similar issues recalled, this specific part and vehicle range are not covered.
Can I drive my Edge with a bad fan module?
It is not recommended. If the fans are stuck on, you risk a dead battery. If the fans won't turn on, your engine will overheat, which can cause severe and expensive damage like a warped cylinder head.
Is the fan module the same as the fan motor?
No. The fan module is the electronic controller. The fan motor is the physical motor that spins the fan blades. The module tells the motor when to turn on and how fast to spin. This article is about the controller module, not the entire fan assembly.
Do I need to program the new fan module?
No. Aftermarket and OEM replacement modules for the Ford Edge are direct-fit, plug-and-play parts. No special programming is required after installation.

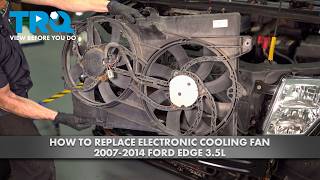

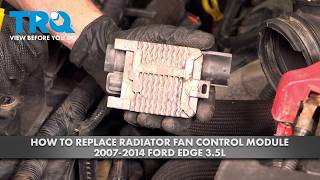

Helpful Videos
Technical Specifications
OEM Part Numbers: 7T4Z-8B658-B 7T4Z8B658B 7T4Z-8B658-A 7T4Z8B658A
Distinction between parts for models with and without the factory trailer tow package is critical. Part 7T4Z-8B658-B is for models WITH the tow package. Part 7T4Z-8B658-A is for models WITHOUT the tow package.
