A Home Mechanic's Guide to the 2007-2014 GMC Yukon Engine Oil Pan
Leaking oil from the bottom of your engine? Here is what you need to know about replacing your Yukon's oil pan.
- The replacement job is much harder on 4WD models because the front differential must be removed.
- Always replace the oil pan gasket and the oil pickup tube O-ring at the same time.
- If your engine has Active Fuel Management (AFM), install the updated oil shield (GM P/N 12639759) per TSB 10-06-01-008K.
- Confirm the part fits your exact engine size and drivetrain (2WD/4WD) before purchasing.
Is Your Yukon's Oil Pan Failing?
The most common reason to replace the oil pan on a 2007-2014 GMC Yukon is due to a leak. While the pan itself is a durable metal part, the gasket that seals it to the engine block is a frequent failure point. Over time, this gasket can become hard and brittle, losing its seal and allowing oil to seep out. You might notice small drips or a large puddle of dark oil on your driveway. Other causes for replacement include physical damage from road debris or stripped drain plug threads from repeated oil changes.
Common Symptoms of a Bad Oil Pan or Gasket
- Oil spots on the ground: This is the most obvious sign. You'll see dark brown or black spots under the front of your Yukon.
- Low engine oil warning light: A significant leak will lower the oil level, triggering the warning light on your dashboard.
- Burning oil smell: If oil leaks onto hot exhaust components, it will burn off, creating a distinct and unpleasant smell.
- Visible damage: You may be able to see cracks, dents, or rust on the pan itself if you look underneath the vehicle.
Choosing the Right Aftermarket Oil Pan
For the 2007-2014 Yukon, the original oil pan is a cast aluminum part. Aftermarket replacements from brands like Dorman and Spectra are widely available and are generally considered reliable options.
- Dorman: A well-known aftermarket brand that produces a wide range of parts. Their oil pans are generally considered a reliable, budget-friendly choice that fits and functions like the original.
- Spectra: Another popular brand, often compared directly with Dorman. Some users feel Spectra parts have a slight edge in material quality, but many find them to be very similar or even identical to Dorman parts.
For a part like an oil pan, both Dorman and Spectra are suitable choices. The decision often comes down to price and availability. Neither brand has significant negative reports for this specific application, and both will restore the function of the original part.
Known Issues & Professional Tips
When replacing the oil pan on these trucks, there are a couple of critical items to address while you have everything apart.
- TSB for Oil Consumption: General Motors issued Technical Service Bulletin (TSB) #10-06-01-008K for V8 engines with Active Fuel Management (AFM) that may experience oil consumption. The fix involves installing a special shield inside the oil pan. If your pan is removed for any reason, it is highly recommended to install this shield (GM P/N 12639759) to prevent future issues.
- Oil Pickup Tube O-Ring: The small O-ring that seals the oil pickup tube to the oil pump is known to get brittle and fail, causing a loss of oil pressure. Since you must remove the pickup tube to get the pan off, you should always replace this inexpensive O-ring as a preventative measure. 🎬 Watch how to replace the oil pickup tube O-ring to fix oil pressure.
Replacement Cost
The cost to replace the oil pan varies dramatically based on whether your Yukon is 2WD or 4WD. The 4WD models require removing the front differential, which adds significant labor time.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $192 - $391 |
| Shop Labor (2WD) | $300 - $500 |
| Shop Labor (4WD) | $500 - $800+ |
| Total Professional Job (Parts & Labor) | $500 - $1,200+ |
Frequently Asked Questions (FAQ)
Is replacing the oil pan a DIY job?
For a 2WD model, it is a manageable job for an experienced DIY mechanic. 🎬 See this step-by-step walkthrough of the oil pan gasket replacement process. However, for a 4WD model, the job is very difficult as it requires removing the front differential. This is a complex task that should only be attempted by those with significant mechanical experience and the right tools, including a way to safely support the engine and differential.
Do I have to replace the gasket when I replace the pan?
Yes. Never reuse an old oil pan gasket. A new, high-quality gasket is essential for a leak-free seal. Most aftermarket pans come with a new gasket, but if not, be sure to purchase one separately. You will also need to apply a small amount of RTV sealant at the corners where the engine block and timing cover meet.
Is there a difference between the 2WD and 4WD oil pan?
The oil pans themselves are typically the same for a given engine, but the replacement procedure is vastly different. Always confirm the part fitment for your specific year, engine size (4.8L, 5.3L, 6.0L, 6.2L), and drivetrain before ordering.
Can I just fix a stripped drain plug?
Sometimes a stripped drain plug can be repaired with a thread repair kit or an oversized plug. However, these are often temporary fixes. Given that the Yukon uses a cast aluminum pan, a proper repair can be difficult, and replacing the entire pan is often the most reliable long-term solution.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12640746

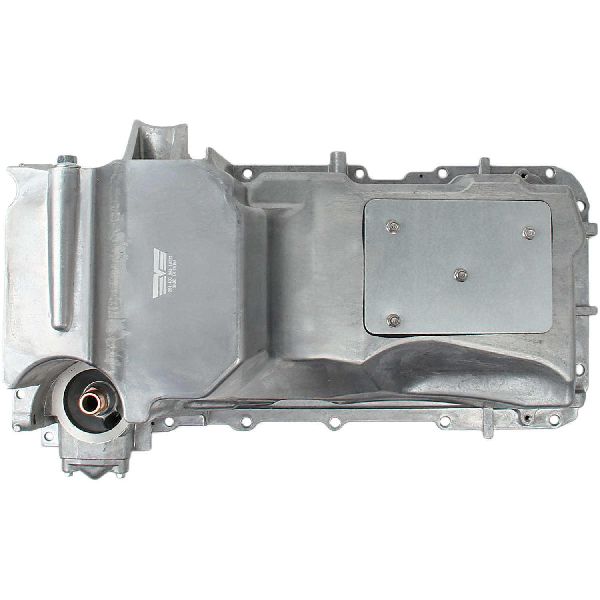

The 2007-2014 GMC Yukon uses a cast aluminum oil pan. The specific pan and gasket may vary based on the engine (4.8L, 5.3L, 6.0L, 6.2L) and drivetrain configuration. The pan bolts to the bottom of the engine block and includes a drain plug for oil changes.
