Mazda CX-9 Serpentine and Power Steering Belt Guide (2007-2014)
Your V6 CX-9 has two separate accessory belts—here's what you need to know before you buy.
- The 2007-2014 CX-9 has two belts: a main serpentine belt and a separate stretch-fit belt for the power steering.
- It is highly recommended to replace both belts, along with the main belt tensioner, at the same time.
- The power steering stretch belt is difficult to install and requires special techniques; it cannot be reused.
- Quality aftermarket brands like Gates, Continental, and Dayco are reliable and cost-effective alternatives to OEM parts.
Understanding the Two-Belt System in Your CX-9

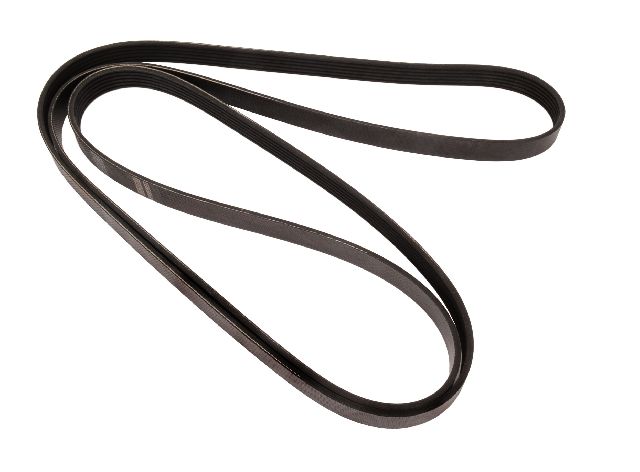

When shopping for a serpentine belt for your 2007-2014 Mazda CX-9, it's critical to know that your vehicle's 3.5L or 3.7L V6 engine uses two separate belts. This is a common point of confusion. One is the main serpentine belt that runs the alternator and A/C compressor. The other is a dedicated stretch-fit belt for the power steering pump. If you hear squealing or are planning a replacement, it is highly recommended to replace both belts and inspect the main belt's tensioner at the same time.
Signs of a Failing Serpentine or Power Steering Belt
A worn-out belt will give you clear warning signs. Ignoring them can leave you stranded or without important vehicle functions.
- Squealing Noises: This is the most common symptom. A high-pitched squeal, especially on startup or when the A/C is on, often means a belt is slipping because it's old, glazed, or stretched.
- Visible Wear: A visual inspection can reveal a lot. Look for cracks, fraying, missing ribs, or a shiny, glazed appearance on the belt's surface.
- Loss of Power Steering: If the smaller stretch belt breaks, you will suddenly lose all power steering assist. The steering wheel will become very difficult to turn.
- Battery Light On: If the main serpentine belt snaps, the alternator will stop spinning. Your battery will no longer charge, and the battery warning light will illuminate on your dashboard. Your car will only run until the battery's reserve power is depleted.
- A/C Not Blowing Cold: The main belt also drives the A/C compressor. If the air conditioning suddenly stops working, a failed belt could be the cause.

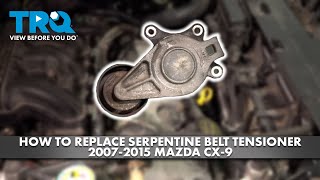

- Rattling or Buzzing Noise: A buzzing or rattling sound that changes with engine speed often points to a failing belt tensioner, not the belt itself. The tensioner is a spring-loaded pulley that keeps the main belt tight, and its internal bearing can wear out. 🎬 See how to replace the serpentine belt tensioner yourself.
Pro Tip: Replace Belts and Tensioner Together
The automatic belt tensioner is subject to wear just like the belt. Its spring can weaken, and the pulley bearing can fail. To avoid having to do the job twice, it is standard practice to replace the main serpentine belt, the stretch-fit power steering belt, and the main belt tensioner all at the same time.
Choosing the Right Aftermarket Belts
While you can buy belts from a Mazda dealer, high-quality aftermarket brands offer the same performance for less money. For the CX-9, the consensus among mechanics and owners is that major, reputable brands are reliable. There is little difference in quality between the top names for this application.
Tier 1: Premium Aftermarket Brands
These brands are well-regarded and often have a history of being original equipment (OEM) suppliers for various automakers. You can install these with confidence.
- Gates: A top choice for belts and hoses, Gates is a highly trusted name in the aftermarket. Their belts are known for durability and proper fit.
- Continental: Another premium brand, Continental belts are known for quiet operation and longevity. They are a popular choice for both professional mechanics and DIYers.
- Dayco: Dayco is a major player in the belt industry and a common OEM supplier. Their belts are a reliable and cost-effective choice.
Tier 2: OEM-Quality Alternatives
These brands are also excellent choices, known for being the factory supplier to many Japanese automakers.
- Mitsuboshi: As a primary OEM supplier for many Asian vehicles, Mitsuboshi belts are an excellent choice that you can trust to meet or exceed factory specifications.
A Note on Stretch-Fit Belts

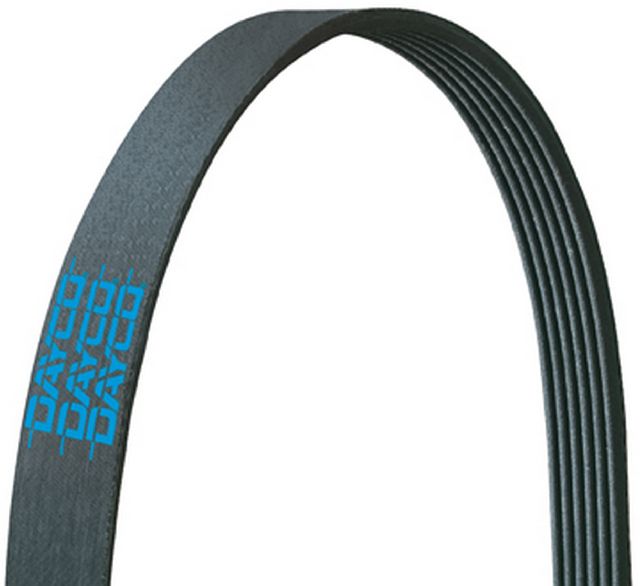

The smaller power steering belt is a stretch-fit or elastic belt. It is designed to be installed once and cannot be reused if removed. Installation is difficult, often requiring zip ties to hold the belt on the pulley while the engine's crankshaft is slowly turned by hand to walk the belt on. Special installation tools exist, but may not fit in the tight space on the CX-9.
🎬 Watch a pro tip for installing the power steering stretch belt.| Part | Cost Range |
|---|---|
| New Aftermarket Belts (Both) | $17.57 - $67.06 |
| New OEM Belts (Both) | $100 - $120 |
| Shop Labor | $98 - $143 |
| Total Professional Replacement | $165 - $217 (Aftermarket Parts) |
Frequently Asked Questions (FAQ)
Do I have to replace both belts at the same time?
It is strongly recommended. Both belts are made of the same material and have been exposed to the same conditions. If one has failed due to age, the other is likely not far behind. Replacing them together saves you from having to do a similar repair in the near future.
How difficult is it to replace the belts on a CX-9?
This is an intermediate-level DIY job. Replacing the main serpentine belt is manageable, but installing the power steering stretch belt is challenging due to the force required and the tight access. The job requires safely jacking up the vehicle and removing the passenger-side front wheel and a plastic splash shield.

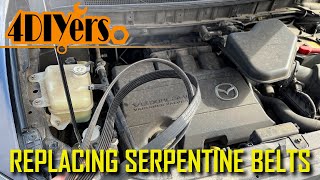

🎬 Watch this complete walkthrough for replacing both V6 accessory belts.Can I reuse the old tensioner?
You can, but it's not recommended. The tensioner's spring and pulley bearing wear out over time. A weak tensioner can cause a new belt to slip and wear out prematurely. For peace of mind, replace it with the belt.
Does a broken belt mean my engine will overheat?
No. On the 2007-2014 Mazda CX-9's V6 engine, the water pump is driven by the timing chain inside the engine, not by the external accessory belts. However, you will lose battery charging and power steering, which are critical failures.
Helpful Videos
Technical Specifications
OEM Part Numbers: CY01-15-908D CY01-15-907B
System includes one standard serpentine belt with an automatic tensioner and one stretch-fit belt without a tensioner. The main belt drives the alternator and A/C compressor. The stretch-fit belt drives the power steering pump.
