Mazda CX-9 Brake Light Switch Failures and Replacement Guide (2007-2015)
A failing brake light switch in your CX-9 can cause more than just lighting issues; here’s how to diagnose and fix it.
- A faulty brake light switch on a CX-9 affects brake lights, cruise control, the shift interlock, and stability control systems.
- Symptoms include brake lights staying on or off, cruise control not working, and ABS/TCS warning lights.
- Replacement is a simple, DIY-friendly job that takes less than 30 minutes, with the main difficulty being access.
- Quality aftermarket brands are a cost-effective and reliable alternative to the more expensive OEM part for this component.
Symptoms of a Failing Brake Light Switch in a Mazda CX-9
A bad brake light switch can create several noticeable and sometimes confusing problems. Because the switch is tied into multiple vehicle systems, the symptoms aren't always straightforward. You might notice one or more of the following issues.
- Brake Lights Don't Work or Stay On: The most obvious sign is when your brake lights fail to illuminate when you press the pedal, or they get stuck and stay on constantly, draining your battery. Sometimes, the lights may appear very dim, which owners have traced back to a faulty switch providing low voltage.
- Cruise Control Won't Set: If the switch is faulty, it may constantly send a signal that the brakes are being applied. This will prevent you from setting or maintaining your cruise control speed.
- Warning Lights on the Dash: A bad brake switch can trigger the ABS or Traction/Stability Control (TCS) warning lights on your instrument cluster. This happens because these systems rely on the switch to know when you are braking. A C1446 trouble code is specifically linked to a brake switch circuit failure. 🎬 Watch: How to replace the switch and clear error codes.
- Unable to Shift Out of Park: The switch is part of the shift interlock safety feature. It requires you to press the brake before you can move the gear selector out of Park. If the switch fails, your CX-9 may get stuck in Park.
Safety First: Check for Recalls
Before purchasing any parts, it's a good practice to check for any open recalls on your vehicle. While searches did not reveal a specific recall for the brake light switch on the 2007-2015 CX-9, it's always best to verify with the National Highway Traffic Safety Administration (NHTSA) website using your vehicle's VIN.
Choosing the Right Aftermarket Brake Light Switch
For a part like the brake light switch, an aftermarket replacement is often a reliable and cost-effective choice compared to the OEM (Original Equipment Manufacturer) part. The available brands for your CX-9—Facet, Rostra Powertrain, Standard Ignition, and Vemo—are all established aftermarket manufacturers.
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Ignition parts are known for their quality and reliability, making them a trusted choice for many professional technicians.
- Vemo: A German brand often associated with European vehicles, Vemo offers a wide range of electronic parts and is generally seen as a quality option.
- Facet: An Italian company that designs and manufactures its own parts, Facet aims for quality equal to or better than original components.
- Rostra Powertrain: Rostra is a well-known name in the aftermarket, particularly for electronic components and transmission parts.
Given the simple nature of this switch, any of these brands should provide a durable replacement. There is no widespread evidence from owner forums to suggest that aftermarket switches for the CX-9 are less reliable than the OEM part.
Pro Tip: When replacing the switch, it's a good idea to disconnect the battery first as a safety precaution. The switch is located in a tight space up under the dashboard by the brake pedal, so be prepared for an awkward working position.
Cost Comparison for 2007-2015 Mazda CX-9 Brake Light Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM | $25 - $46 |
| New Aftermarket | $39.63 - $77.09 |
| Shop Labor | $37 - $54 |
Frequently Asked Questions
Can I replace the brake light switch myself?

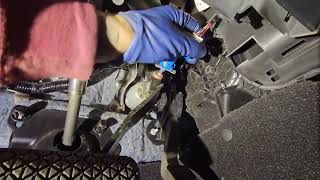

Yes, this is a very feasible DIY job for most owners. The switch is located on the brake pedal bracket and typically requires a simple quarter-turn to remove. 🎬 See this walkthrough for testing and replacing the brake switch. The main challenge is the awkward access under the dashboard. No special tools are usually required beyond basic hand tools. The estimated time is under 30 minutes.
Is an OEM switch better than an aftermarket one for my CX-9?
For this specific part, there is no strong evidence to suggest an OEM switch is significantly better. Aftermarket brands like Standard Ignition and Vemo have a good reputation for electronic parts. Given the cost savings, a quality aftermarket switch is a very practical choice.
Why did my traction control (TCS) light come on?
The traction and stability control systems need to know when you are braking to function correctly. A faulty brake light switch can send an incorrect signal (or no signal at all), confusing the system and causing the warning light to illuminate.
What is the difference between a brake light switch and a brake pedal position sensor?
On some vehicles, these are separate components. The brake light switch is a simple on/off switch for the lights. A brake pedal position sensor is more complex and tells the computer how far and how fast the pedal is being pressed. For the 2007-2015 CX-9, these functions are integrated into a single switch assembly.
Helpful Videos
Technical Specifications
OEM Part Numbers: L232-66-490A L23266490

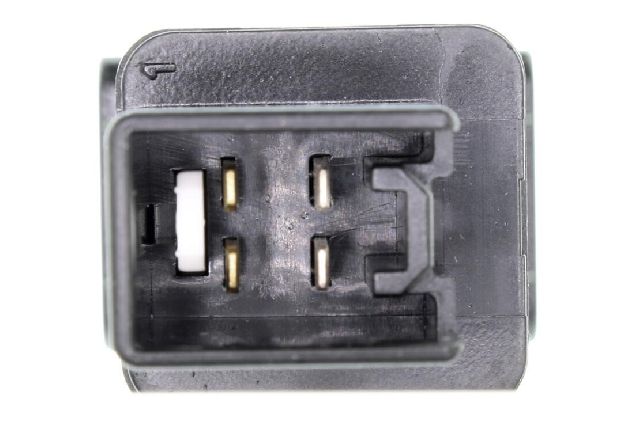

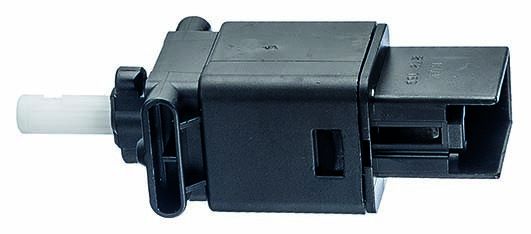

Located on the brake pedal assembly. Typically a 4-terminal switch with a plunger mechanism.
