A Guide to Direct Ignition Coils for the 2007-2015 Mazda CX-9
Experiencing engine misfires or a rough idle in your CX-9? Your ignition coils may be the cause.
- Symptoms of failure include a rough idle, hesitation, and a check engine light with codes P0301-P0306.
- Replacing the three rear coils is a difficult job that requires removing the intake manifold; it's wise to replace all three rear coils and the spark plugs at the same time.
- High-quality aftermarket brands like Denso and Hella offer OEM-level performance for a lower price.
- If the check engine light is flashing, pull over and have the vehicle towed to prevent expensive catalytic converter damage.
Signs of a Failing Ignition Coil
When an ignition coil starts to fail on your CX-9, it can't deliver the strong electrical pulse the spark plug needs. This leads to an engine misfire, which can cause a variety of noticeable symptoms. You should get your vehicle checked if you notice any of the following issues.
Common Failure Symptoms
- Rough Idle: Your CX-9 may shake or vibrate more than usual when stopped or at a low RPM.
- Engine Stumbling and Hesitation: While accelerating, the vehicle may jerk, hesitate, or feel less powerful.
- Check Engine Light: A failing coil will almost always trigger the check engine light. If the light is flashing, it indicates a severe misfire that could damage your catalytic converter. You should not drive the vehicle if the check engine light is flashing.
- Reduced Fuel Economy: When a cylinder misfires, unburned fuel is wasted, leading to more frequent trips to the gas station.
- Difficulty Starting: A weak or dead coil can make it harder to start the engine.
Choosing the Right Aftermarket Ignition Coil
When replacing ignition coils, you don't have to buy the expensive OEM part from a Mazda dealer. Quality aftermarket brands provide excellent performance and reliability, often at a much lower price. For your 2007-2015 CX-9, here is a breakdown of the available brands.
Brand Quality Tiers
| Tier | Brands | Notes |
|---|---|---|
| Premium Aftermarket | Denso, Hella | Denso is a well-known original equipment manufacturer (OEM) for many Japanese brands, including Mazda. Their coils are built to high standards for fit and performance. Hella is another reputable German brand known for quality electronic components. Choosing a brand from this tier is the closest you can get to dealer quality. |
| Mid-Grade / Standard Replacement | Beck Arnley | Beck Arnley is a trusted name in the aftermarket. They source parts from various suppliers, sometimes even repackaging the original OEM part. This brand offers a good balance of quality and value for a daily-driven CX-9. |
| Performance | Granatelli | Granatelli specializes in high-performance ignition systems that claim to offer increased voltage for improved throttle response and fuel economy. While they receive positive reviews in performance communities, this may be overkill for a stock family SUV and some users report they are not as reliable as OEM. |
Known Issues, Recalls, or TSBs
During the searches conducted, no specific recalls or widespread Technical Service Bulletins (TSBs) were found for ignition coil failure on the 2007-2015 Mazda CX-9. While TSBs exist for other Mazda models regarding ignition coils from a specific supplier, they do not explicitly cover the CX-9 from this generation. Failure is typically due to normal wear and tear from heat and vibration over time.
A Note on Replacement
The V6 engine in your CX-9 has three ignition coils on the front cylinder bank (easy to access) and three on the rear bank. Replacing the rear coils is significantly more difficult because the upper intake manifold must be removed. Because of the extra labor involved, many owners choose to replace all three rear coils at once, even if only one has failed. It is also highly recommended to replace the spark plugs and the intake manifold gaskets at the same time.
Frequently Asked Questions (FAQ)
Should I replace all six ignition coils at once?
It's a common debate. If one coil fails, others may soon follow as they have all been exposed to the same conditions. To save on future labor costs, especially for the difficult-to-access rear coils, it is wise to replace them as a set of three. If a front coil fails, you might choose to replace only the single failed unit since they are easy to access.
Is an OEM ignition coil better than aftermarket?
OEM Mazda coils are high quality but come at a premium price. Top-tier aftermarket brands like Denso are often the original manufacturer and offer the same quality for less money. Reputable aftermarket brands are a reliable and cost-effective choice for most owners.
How do I find out which coil is bad?
A professional mechanic will use a diagnostic scan tool to read the trouble codes from your vehicle's computer. A code like P0301 indicates a misfire in cylinder 1, P0302 for cylinder 2, and so on up to P0306. This tells you exactly which cylinder's coil (or spark plug) is having a problem. You can also swap a suspected bad coil with a known good one from another cylinder. If the misfire code follows the coil to the new cylinder, you've confirmed the coil is the problem.
What tools are needed to replace the ignition coils?
For the front coils, you'll need basic hand tools like a ratchet and an 8mm or 10mm socket. For the rear coils, the job requires removing the intake manifold, which involves more tools, including pliers for hoses, various sockets and extensions, and a torque wrench. You will also need new intake manifold gaskets.
Technical Specifications

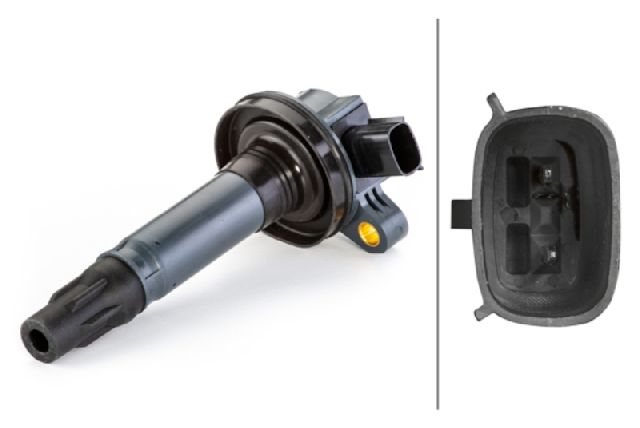

OEM Part Numbers: CY01-18-100B CY01-18-100A 7T4Z-12029-E
The 2007-2015 Mazda CX-9 uses a V6 engine (3.5L or 3.7L) with a coil-on-plug ignition system, requiring six individual ignition coils.
