Mazda CX-9 (2007-2015) Engine Oil Pressure Switch Replacement Guide
Seeing the oil light on your dash? It might be this small, but critical, sensor.
- If the oil light comes on, always stop and check the oil level immediately before assuming the switch is bad.
- A common failure mode for this switch is an active oil leak from the sensor body itself.
- Replacement is difficult due to the tight location; a special O2 sensor socket can make the job easier.
- The genuine Mazda OEM part is inexpensive and a highly recommended choice for reliability.
Is Your CX-9's Oil Pressure Switch Failing?
When the oil pressure switch on the 3.7L V6 engine fails, it can cause serious concern. The most common failure is an incorrect signal, but it can also fail by leaking oil. Because the symptoms of a bad switch are the same as actual low oil pressure, you should always stop the vehicle and check your oil level immediately when the warning light comes on.
Common Symptoms of a Bad Switch
- Oil Pressure Light On or Flickering: The most common sign is the red oil pressure light on your dashboard illuminating or flashing, even when the oil level is correct. A faulty switch can send a false low-pressure signal.
- External Oil Leak: The switch itself can develop a leak. Owners report finding oil dripping from the sensor's plastic connector body. This leak often happens only when the engine is running. The switch is located in a tight spot between the alternator and A/C compressor, making the leak hard to spot. 🎬 Watch this video to see the exact sensor location.
- Check Engine Light: In some cases, a failing oil pressure sensor can trigger the check engine light, possibly with code P0524 for low oil pressure.
Warning: Do Not Ignore the Oil Light
Never assume the oil light is just a bad sensor. Always pull over safely, turn off the engine, and check the oil dipstick. Driving with genuinely low oil pressure can destroy your engine in minutes. If the oil level is full but the light stays on, the problem is likely the switch or a more serious mechanical issue that requires professional diagnosis.

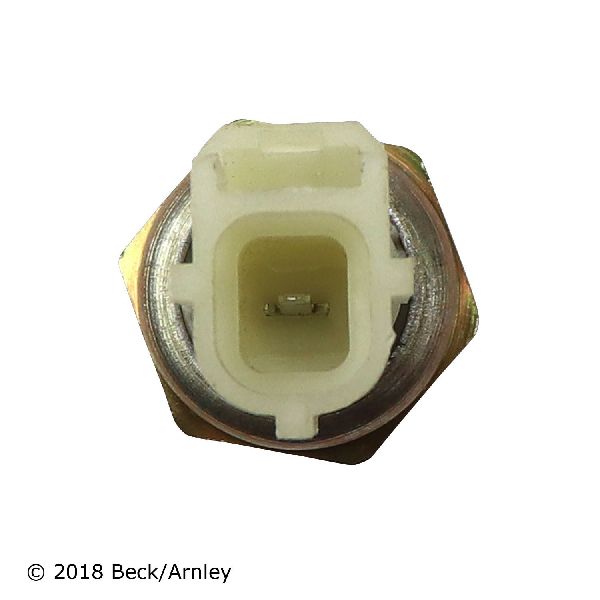

Choosing a New Aftermarket Oil Pressure Switch
For the 2007-2015 CX-9, you have a choice between aftermarket brands and the original equipment (OEM) part from a Mazda dealer. Given the low cost of the OEM part, it is a very strong option.
| Brand Tier | Available Brands | Quality & Notes |
|---|---|---|
| Good Aftermarket | Standard Ignition (SMP), Beck Arnley | These brands provide a cost-effective solution. However, online forums show mixed reviews for sensors from these brands across different vehicles. Some users report that Beck Arnley's quality has declined over the years, moving from re-boxed OEM parts to more generic components. Standard Ignition (and its sub-brands like BWD) can be a gamble, with some reports of sensors being out of specification. |
| OEM (Original Equipment) | Mazda | The original Mazda part is known to be reliable and, according to owner reports, is surprisingly inexpensive. For a critical part like this, spending a few extra dollars for the OEM part from a dealer is a recommended and safe bet. |
Cost of Replacing the Oil Pressure Switch
The total cost will depend on whether you do the job yourself or take it to a repair shop. The part itself is inexpensive, but labor can be significant due to the switch's difficult-to-reach location.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $19 - $32 |
| New OEM Part | $15 - $40 |
| Shop Labor | $150 - $225 |
| Total Professional Replacement | $165 - $265 |
Pro Tip: Consider an O2 Sensor Socket
The oil pressure switch has a wire pigtail that can make it difficult to fit a standard deep socket over it. Some mechanics recommend using a 21mm oxygen sensor socket, which has a slot down the side for the wire. This can make removal and installation in the tight space much easier.
🎬 See how to use specialized tools for this replacement.Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a 2007-2015 Mazda CX-9?
The switch is on the front of the engine block, tucked down between the alternator and the A/C compressor. It is difficult to see and reach from both the top and bottom of the engine bay.
Can I replace the CX-9 oil pressure switch myself?
This is a challenging DIY job due to poor access. While possible for an experienced home mechanic, it can be frustrating. One method involves working from the top with long tools and small hands. A more thorough method requires jacking up the vehicle, removing the passenger side wheel and splash shield, releasing the serpentine belt, and unbolting the A/C compressor to move it aside for access. If you are not comfortable with this, it is best left to a professional.
🎬 Watch a full walkthrough of the compressor removal method.Are there any recalls for the oil pressure switch on the CX-9?
No, there are no recalls for the engine oil pressure switch on the 2007-2015 Mazda CX-9. There was a Technical Service Bulletin (TSB) for a leaking *power steering* pressure switch on 2010-2015 models, but this is a completely different part.
What tools are needed for the replacement?
You will need a 21mm socket, preferably an O2 sensor socket. You will also likely need various extensions, a ratchet, 12mm sockets for the A/C compressor bolts, and potentially a serpentine belt tool if you use that method.
Helpful Videos
Technical Specifications
Socket Size: 21mm
