A Guide to Replacing Fuel Injectors on the 2007-2015 Mazda CX-9
Address rough idle, poor gas mileage, and engine misfires by understanding your CX-9's fuel injector needs.
- Symptoms of a bad fuel injector, like rough idle and misfires, are identical to those of a failing ignition coil, a common issue on this vehicle.
- Replacing the fuel injectors is a labor-intensive job that requires removing the upper intake manifold.
- It is essential to replace the upper intake manifold gaskets at the same time to prevent future vacuum leaks.
- For long-term reliability, choosing a new, high-quality aftermarket brand like Bosch is recommended over remanufactured options.
Is Your Mazda CX-9 Fuel Injector Failing?
A bad fuel injector can cause a range of noticeable engine problems. Because the symptoms often overlap with other common issues, like failing ignition coils, it's important to know what to look for. If your CX-9 is showing these signs, a faulty injector could be the culprit.
Common Symptoms of a Bad Fuel Injector:
- Rough Idle: The engine may shake or vibrate when the vehicle is stopped.
- Engine Misfires: You might feel a stuttering or jerking during acceleration as one or more cylinders fail to fire correctly. This often triggers a flashing Check Engine Light.
- Poor Fuel Economy: If an injector is stuck open or leaking, it wastes fuel, and you'll notice more frequent trips to the gas station.
- Hesitation on Acceleration: The vehicle may not respond immediately or smoothly when you press the gas pedal.
- Fuel Smell: A strong gasoline odor inside or outside the vehicle can indicate a leaking injector.

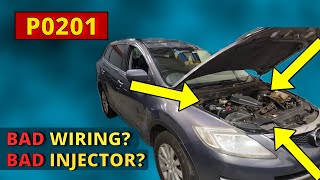

- Check Engine Light: Codes like P0300 (random misfire), P0301-P0306 (cylinder-specific misfire), or P0201-P0206 (injector circuit fault) are strong indicators. 🎬 Watch: How to diagnose a P0201 injector circuit fault.
Pro Tip: Is It an Injector or an Ignition Coil?
The V6 engine in the 2007-2015 CX-9 is also known for ignition coil failures, which cause the exact same symptoms as a bad fuel injector. Before buying injectors, consider swapping the ignition coil from the misfiring cylinder (e.g., cylinder 3, code P0303) with a coil from a working cylinder (e.g., cylinder 4). If the misfire code changes to P0304, the ignition coil is the problem, not the injector.
Choosing the Right Aftermarket Fuel Injector
When replacing a fuel injector, you have a choice between OEM and aftermarket parts. For a vehicle like the CX-9 where the replacement job is labor-intensive, choosing a quality part is crucial to avoid doing the job twice. There are no known recalls or widespread factory defects for the fuel injectors on this model, so OEM quality is considered reliable.
| Brand Tier | Brands | Notes |
|---|---|---|
| Premium Aftermarket / OEM Equivalent | Bosch | Bosch is a well-respected OEM supplier known for manufacturing high-quality, reliable fuel system components. Their injectors are engineered for precise fuel delivery and durability, making them a top choice for this repair. |
| Quality Aftermarket | Standard Ignition (SMP) | Standard Motor Products is a trusted name in the aftermarket. They provide reliable parts that meet or exceed original specifications, offering a good balance of quality and value. |
| Budget / Remanufactured | GBR Fuel Injection | GBR offers remanufactured injectors, which can be a budget-friendly option. However, reviews are mixed. Some users report premature failures, including injectors getting stuck open, which can cause serious engine issues. This option carries more risk than a new, premium aftermarket part. |
How Much Does It Cost to Replace a Mazda CX-9 Fuel Injector?
The cost of replacing fuel injectors on the 2007-2015 CX-9 is heavily influenced by labor, as the upper intake manifold must be removed to access all six injectors. Because of the difficult access, most owners and mechanics recommend replacing all six injectors at once.
| Part / Service | Estimated Cost (Set of 6) |
|---|---|
| Shop Labor | $415 - $610 |
| New OEM Injectors | $480 - $720 |
| New Aftermarket Injectors | $330 - $370 |
Common Ordering Mistake
Always purchase new upper intake manifold gaskets when ordering your fuel injectors. The original gaskets should not be reused after the manifold is removed. Failing to replace them can cause vacuum leaks, leading to poor engine performance.
Frequently Asked Questions
Should I replace all six injectors at once?
Yes. The labor to access the injectors is the most expensive part of the job. If one injector has failed due to age or contamination, the others are likely not far behind. Replacing them all at once saves you from paying for the same difficult repair again in the near future.
What are "flow-matched" fuel injectors?
Flow-matched injectors are sets that have been tested to ensure each one sprays the exact same amount of fuel. This balance between cylinders is important for a smooth-running engine and optimal performance. Reputable brands like Bosch provide a high level of consistency right out of the box.
Is replacing the fuel injectors a DIY job?
This repair is recommended for experienced DIYers only. It requires removing the air intake, throttle body, and upper intake manifold to access the fuel rail and injectors. You must also safely depressurize the fuel system before starting. If you are not comfortable with a job of this complexity, it is best left to a professional mechanic.
🎬 See this step-by-step fuel injector replacement walkthrough.Do I need to replace any other parts at the same time?
It is mandatory to replace the upper intake manifold gaskets. Because the rear three spark plugs are also located under the intake manifold, this is the perfect time to replace all six spark plugs if they are due. While you're there, inspect the valve cover gaskets for any signs of oil leaks into the spark plug tubes.
🎬 Watch: How to replace spark plugs while the manifold is off.Helpful Videos
Technical Specifications
OEM Part Numbers: CY0113250 ZZJ113250A
Port Fuel Injector for 3.5L & 3.7L V6 Engines
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
