Your Comprehensive Guide to the 2007-2016 Audi Q7 Engine Oil Pressure Switch
Don't ignore that flashing oil light—here's how to diagnose the problem and choose the right replacement switch for your Q7.
- Never ignore an oil pressure warning; always verify the actual oil pressure with a mechanical gauge before replacing the switch.
- A switch that is leaking oil, especially into its own electrical connector, is definitively bad and must be replaced.
- For best results on an Audi, use an OEM-supplier brand like Hella or Vemo, or a trusted aftermarket brand like Beck Arnley.
- Before ordering, check the color of your Q7's original switch, as different colors signify different pressure ratings.
Symptoms of a Failing Oil Pressure Switch

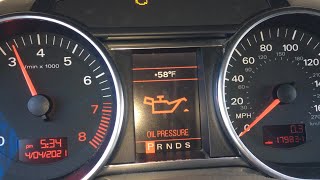

A bad oil pressure switch can either fail to warn you of a real problem or create a false alarm. The most common sign is the red oil pressure warning light on your dashboard, which may flicker or stay on constantly. You might also see a message telling you to shut off the engine. Another clear sign of failure is a visible oil leak from the switch itself. If you unplug the electrical connector and find oil inside, the switch's internal seal has failed and it must be replaced.
First, Rule Out Actual Low Oil Pressure
Before replacing the switch, it is critical to confirm you don't have a real low oil pressure problem. An oil pressure warning can be caused by a low oil level, the wrong type of oil filter, a failing oil pump, or clogged engine passages. Always check your oil level first. If the level is correct, a mechanic should test the engine's actual oil pressure using a mechanical gauge to rule out a serious mechanical issue before you condemn the sensor.
Choosing the Right Aftermarket Engine Oil Pressure Switch
When shopping for a replacement, you'll find several brands. They generally fall into three quality tiers. For a critical sensor on a German vehicle, sticking to the top two tiers is highly recommended.

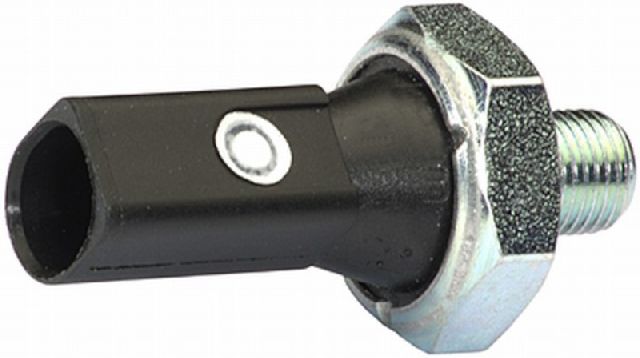

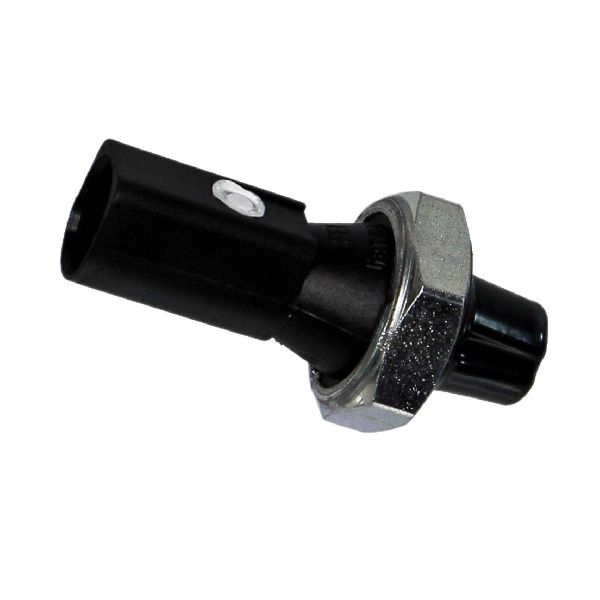

- Tier 1: OEM/OES Brands (Hella, Vemo, CRP): These companies are often original equipment suppliers to Audi and other German automakers. Choosing a brand like Hella or Vemo provides the highest confidence that the part will match the original's pressure ratings, materials, and lifespan.

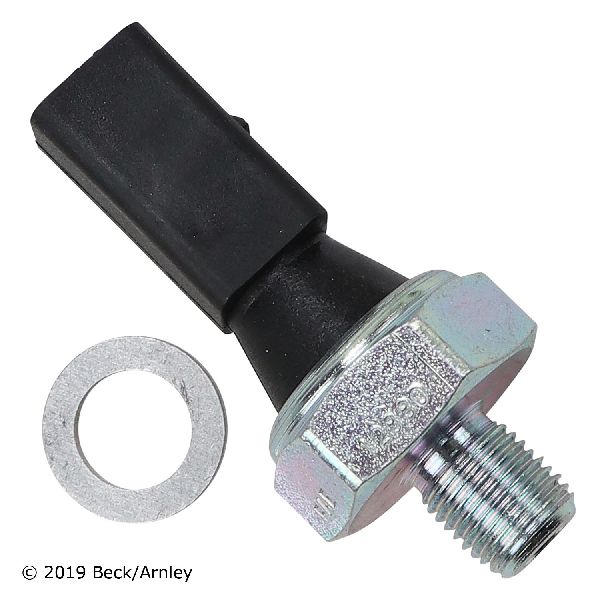

- Tier 2: Quality Aftermarket Brands (Beck Arnley, Standard Ignition): Brands like Beck Arnley and Standard Ignition (SMP) have a long-standing reputation for producing reliable parts that meet or exceed OEM specifications. They are a solid choice for a dependable repair.
- Tier 3: Value Brands (Walker Products, Global Parts): These brands offer a more budget-friendly price point. While functional, they may not use the same premium materials or undergo the same level of testing as higher-tier brands.
Check the Color and Part Number!
Audi uses different colored switches (e.g., brown, blue, grey, black) to indicate different pressure activation points. It is essential to visually inspect your old switch and match its color or, even better, the OEM part number stamped on it. Installing a switch with the wrong pressure rating can lead to false warnings or no warning at all. Common OEM part numbers for this generation Q7 include 079-919-081 and 038-919-081-P.
Known Issues for 2007-2016 Audi Q7
While no direct recalls exist for the switch itself, a Technical Service Bulletin (TSB) for the 3.0T engine (including the 2017 Q7) points to an interesting issue. TSB 01 16 57 notes that a low oil pressure warning (DTC P164D00) can be caused by a faulty rubber plug inside the oil filter housing, not the switch itself. Additionally, owners have reported that using an aftermarket oil filter that is even slightly shorter than the original German-made filter can cause a pressure drop and trigger the warning light on 3.0T engines.
Cost of Replacing an Audi Q7 Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Switch | $8 - $45 |
| New OEM Switch | $30 - $60 |
| Shop Labor | $100 - $225 |
Frequently Asked Questions
Where is the oil pressure switch on my Audi Q7?
The location varies by engine. On the 3.0T and TDI engines, it's in a very tight spot near the oil filter housing, under the supercharger. On the 3.6L V6, it's more accessible above the oil filter. 🎬 Watch this walkthrough for replacing the switch on a 3.6L engine. On the 4.2L V8, it is typically found on the engine block. 🎬 See how to replace the sensor on a 4.2L V8 engine. A repair manual for your specific engine is recommended.
Can I replace the oil pressure switch myself?
Yes, this is a DIY-feasible job for those with the right tools. However, on engines like the 3.0T, access is very tight and may require long extensions, a swivel socket, and patience to remove the connector and sensor. You will need a 24mm deep socket for the switch itself.
What does the red oil pressure warning light really mean?
It means the switch has detected that engine oil pressure has dropped below the minimum safe level. You should immediately and safely pull over, shut off the engine, and check the oil level. Continuing to drive could destroy your engine.
Should I use thread sealant on the new switch?
Most new switches come with a pre-applied sealant on the threads or use a crush washer to seal. If your new switch does not have sealant, a small amount of appropriate thread sealant should be applied to ensure it doesn't leak. Do not overtighten the switch.
Helpful Videos
Technical Specifications
OEM Part Numbers: 079-919-081 03C-919-081 06A-919-081-J 038-919-081-P
Tool Size: 24mm deep socket. Thread Size: Commonly M10 x 1.0. Connector type and pressure rating vary by part number and color.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
