Understanding the Disc Brake Pad Wear Sensor for 2007-2016 BMW 528i
Don't ignore the brake warning light; here's what you need to know about replacing this critical sensor.
- The sensor is a one-time-use part and must be replaced with the brake pads to turn off the warning light.
- The 2007-2010 (E60) and 2011-2016 (F10) models use different sensors; ensure you buy the correct part for your year.
- Aftermarket brands like Pagid, Brembo, and Bowa offer OEM-level quality, while budget brands may have fitment issues.
- After installation, the service light must be manually reset via the instrument cluster.
Understanding Your 528i's Brake Sensor Warning
When the brake pad wear sensor is tripped on your 2007-2016 BMW 528i, you will see a red BRAKE warning light on your instrument cluster. Your iDrive screen will also show a service message indicating that the brake pads are worn and need replacement. It is important to understand that this sensor is a one-time-use part. Once it triggers the warning light, it cannot be reset or reused; it must be replaced along with your brake pads. Attempting to reset the light without replacing the sensor will fail.
Generation-Specific Parts
The 2007-2016 year range for the 528i covers two different vehicle generations: the E60 (2007-2010) and the F10 (2011-2016). These two generations use different brake pad wear sensors. It is critical to order the correct sensor for your specific year to ensure proper fit and function.
Choosing the Right Aftermarket Sensor
When it's time for a replacement, you have options beyond the expensive OEM (Original Equipment Manufacturer) part from a BMW dealer. Many aftermarket brands offer quality replacements at a better price. Here’s a breakdown of what to look for:
- Premium Aftermarket (OEM-Equivalent): Brands like Pagid, Brembo, and Bowa are known for manufacturing parts that meet or exceed original specifications. Pagid and Textar are even known to be original suppliers to BMW for some components. These are excellent choices for owners who want OEM quality without the dealer price tag.
- Quality Aftermarket: Brands such as Beck Arnley, Centric, Powerstop, and Raybestos have a solid reputation in the aftermarket. They provide reliable, durable parts that offer great value and performance for daily driving.
- Budget-Friendly: Brands like URO Parts and Dorman offer the most affordable options. However, owner experiences can be mixed. Some users report perfect function, while others have experienced issues with fitment, like misaligned connector pins or loose clips, leading to false warnings. While you can save money, be aware of the potential for installation headaches.
Pro Tip: Replace with Your Brake Pads
The best practice is to replace your brake pad wear sensors every time you replace your brake pads, even if the warning light hasn't come on. The sensors become brittle from heat and exposure and will likely break during removal anyway. Replacing them proactively ensures your warning system works correctly and prevents you from having to do the job twice.
Cost Comparison for a New Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $40 - $80 per sensor |
| New Aftermarket | $16.38 - $44.97 per sensor |
| Shop Labor (Standalone) | $50 - $100 |
| Shop Labor (with Brake Job) | Often included or minimal extra charge |
Frequently Asked Questions (FAQ)
Do I need to replace both the front and rear sensors at the same time?
No. Your BMW has one sensor for the front axle (driver's side) and one for the rear axle (passenger's side). You only need to replace the sensor that has been tripped. The iDrive service menu will tell you whether the front or rear brakes need service. However, it is common to replace pads and sensors for both axles if they have similar mileage.
Why is my brake light still on after replacing the pads and sensor?
After replacing the hardware, the service light must be manually reset through the vehicle's onboard computer. This can be done through a sequence of steps using the trip reset button on the instrument cluster. If the reset is unsuccessful, it could indicate a faulty or poorly connected new sensor, or a damaged wire somewhere in the harness.
Can I just bypass the sensor?
Some owners choose to cut the sensor wire and splice the two leads together to permanently close the circuit and prevent the warning light. While this will turn off the light, it completely disables the safety warning system. You will no longer receive an alert when your brake pads are critically low, relying only on manual inspection. This is not recommended for safety reasons.
Are there any recalls or known issues?
There are no specific recalls for the brake pad wear sensors on the 2007-2016 BMW 528i. However, BMW has issued Technical Service Bulletins (TSBs) for other models, like SI B34 02 08, related to DSC software errors that can cause false brake wear warnings (fault codes 5DE0, 5DE1). While this TSB is not specifically for the 528i, it highlights that software can sometimes be the cause of a persistent light. The most common issues reported by owners are physical damage to the sensor wire from road debris or improper routing, and fitment problems with some budget aftermarket brands.
Technical Specifications
OEM Part Numbers: E60 (2007-2010) Front: 34356789492, 34356776421, 34356768595 E60 (2007-2010) Rear: 34356789493 F10 (2011-2016) Front: 34356791958 F10 (2011-2016) Rear: 34356791962, 34356792292

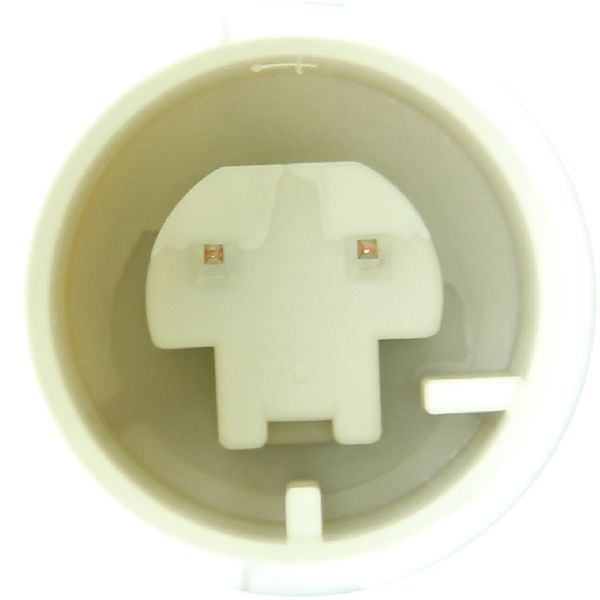

The system uses two sensors total: one for the front-left wheel and one for the rear-right wheel. They are simple, two-pin electrical connectors that function by wearing down and breaking a circuit.
