A Guide to the Engine Oil Level Sensor for the 2007-2016 BMW 528i
Your BMW 528i doesn't have a dipstick, making this electronic sensor your engine's only oil gauge.
- Your 2007-2016 528i has no dipstick; this sensor is the only way to check the engine oil level.
- For reliability, choose an OEM-supplier brand like Hella. Avoid cheap, unproven brands as they often fail quickly.
- The best time to replace the sensor is during an oil change, as the engine oil must be drained for the job.
- A faulty sensor can give false low-oil warnings, which can lead to dangerous overfilling if you add oil without confirming the actual level.
Why This Sensor is Critical on Your 528i
Unlike most cars, your BMW 528i from this era was built without a physical engine oil dipstick. This means you are completely dependent on the electronic oil level sensor to know how much oil is in your engine. If this sensor fails, you have no way of checking your oil level, which can be a risky situation. An incorrect reading could cause you to overfill the engine or, worse, not warn you of a dangerously low oil level.
Symptoms of a Failing Oil Level Sensor
When this sensor starts to go bad, your car will give you some clear signs. Here are the most common ones:

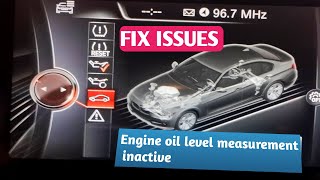

- "Oil Level Measurement Inactive" Message: This is the most frequent symptom. You try to check the oil level in your iDrive, but the system says it can't, or the measurement process never completes. 🎬 Watch: Troubleshooting the 'Oil Level Measurement Inactive' error message
- False Low Oil Warning: The car may tell you to add 1 quart of oil, even when the level is perfectly fine. Ignoring this is risky, but adding oil when it's not needed can lead to overfilling and other engine problems.
- Delayed or Inaccurate Readings: After an oil change or top-off, a failing sensor might take a very long time to update the reading, or it may show an incorrect level. This can be confusing and lead to adding the wrong amount of oil.
- Check Engine Light: A malfunctioning sensor can send bad data to the engine computer, triggering a Check Engine Light.
Known Issues: TSB for Oil Level Sensor Faults
BMW issued a Technical Service Bulletin (TSB SIB-12-05-19) for some models that addresses issues with the oil level sensor. If your car's computer has stored fault codes 1C4110 ("oil-level sensor: Malfunction") or 1C4001 ("engine oil level: Measurement required"), it points directly to a problem with the sensor or its communication with the vehicle.
🎬 Check this video to find the oil level sensor fuseChoosing the Right Aftermarket Part: Brand Tiers
When it comes to electronics on a BMW, quality matters. A cheap sensor can fail quickly, forcing you to do the entire job over again. Here’s a breakdown of the brands available:
- Tier 1 (OEM Supplier - Recommended): Hella is widely known to be the Original Equipment Manufacturer (OEM) for BMW's oil level sensor. This means it's the same part you'd get from a BMW dealer, often with the BMW logo ground off, but for a lower price. For reliability and peace of mind, this is the best choice.
- Tier 2 (Quality Aftermarket): Brands like Standard Ignition (SMP) and NGK have a strong reputation for producing reliable electronic components that meet or exceed OEM specifications. They are a solid choice if an OEM-supplier part is not available.
- Tier 3 (Budget Brands): Brands like Vemo, Facet, and Skyward fall into this category. While the price is attractive, the quality can be inconsistent for complex electronics. Forums are filled with stories of owners who used a budget sensor only for it to fail prematurely, costing them more in the long run. Using these brands is a gamble.
Installation Pro-Tip

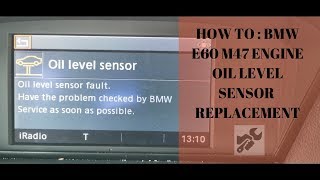

The best time to replace your oil level sensor is during an oil change. The job requires draining all the engine oil, so combining the two services saves time and money. 🎬 See this step-by-step walkthrough for replacing the sensor Before you buy, double-check that the electrical connector on the new part matches your old one exactly. Some aftermarket parts have slightly different pin layouts that will not work.
Cost to Replace the Engine Oil Level Sensor
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) Part | $350 - $500 |
| New Aftermarket Part | $150 - $440 |
| Shop Labor | $120 - $220 |
| Total Professional Replacement | $270 - $660 |
Frequently Asked Questions
Can I drive with a bad oil level sensor?
Yes, but it's not recommended for long. The car will still run, but you will have no way to verify the engine's oil level. If a real oil leak develops, you won't get a warning until it's too late, risking catastrophic engine damage.
Why did BMW remove the dipstick anyway?
The electronic sensor is more than just a level gauge; it's integrated with the engine management system. It also measures oil quality and temperature to help calculate oil life and protect modern engine systems like VANOS, which relies on clean oil at the correct pressure.
I just added oil, but the reading hasn't changed. Is the sensor bad?
Not necessarily. The system doesn't give an instant reading. It takes measurements over time under specific conditions (warm engine, level ground) and averages them to provide an accurate reading. Drive the car for 15-20 minutes and check again before assuming the sensor is faulty.
Is a cheap sensor from an online marketplace a good idea?
It is strongly advised against. This is not a part to save money on. The labor involves draining all your oil, so if the cheap part fails, you have to do the job all over again. Stick with an OEM supplier or a reputable aftermarket brand.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12618638755 12617508003
Mounts to the bottom of the engine oil pan. Secured with three 10mm nuts. Replacement requires draining the engine oil.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
