A Guide to Replacing Disc Brake Calipers on the 2007-2016 Mazda CX-9
Address common brake problems like sticking, dragging, and noise with the right replacement caliper for your first-generation CX-9.
- Sticking rear calipers are a known issue on 2016 CX-9s, covered by TSB 04-001/18, which causes brake drag and rapid wear.
- Always replace calipers in pairs (both front or both rear) to maintain balanced braking.
- Choose an aftermarket caliper with a zinc or powder coating to prevent rust and seizing, especially from brands like PowerStop, Dynamic Friction, or Raybestos.
- When replacing a caliper, you must also install new pads and flush the brake fluid.
Is Your CX-9's Brake Caliper Failing?
Brake calipers on any vehicle are wear-and-tear items, but the 2007-2016 Mazda CX-9 has some specific issues to watch for. The most common failure is a seized or sticking caliper. This happens when the caliper piston or the slide pins get stuck due to rust or debris. Instead of moving freely, the caliper may fail to release its grip on the rotor, causing constant brake drag. On the other hand, it might get stuck in the open position, reducing your stopping power on that wheel.
Key Symptoms of a Bad Caliper:
- Vehicle Pulling: Your CX-9 pulls to one side when you brake, or even when you're driving straight.
- Brake Drag & Overheating: After a drive, one wheel feels much hotter than the others. You might also smell a burning odor. This is a classic sign of a sticking caliper. 🎬 Watch: How to diagnose a seized brake caliper yourself.
- Uneven Brake Pad Wear: When changing your pads, you notice one side (inner or outer) is worn down significantly more than the other.
- Visible Fluid Leaks: Brake fluid leaking from around the caliper piston boot is a serious safety issue that requires immediate attention.
- Spongy or Soft Brake Pedal: If a caliper seal fails, it can let air into the system, resulting in a pedal that feels soft or goes too far to the floor.
Known Issues for the 2007-2016 Mazda CX-9
Rear Caliper Drag on 2016 Models: Early production 2016 CX-9 models with the Electronic Parking Brake (EPB) are subject to Technical Service Bulletin (TSB) 04-001/18. This TSB addresses an issue where the rear calipers may not fully release, causing brake drag, overheating, smoke, and extremely premature wear of the rear pads and rotors. If you own a 2016 model and experience rapid rear brake wear, a sticking caliper is the likely cause. The official fix involves replacing the caliper with an updated part.
Hard Pedal on 2007-2013 Models: While not a caliper issue, Mazda issued a warranty extension (SSP 93) for the power brake booster on these model years. Symptoms include a hard-to-press brake pedal and a hissing noise. This can sometimes be misdiagnosed, so it's important to be aware of if you're troubleshooting brake problems.
Choosing the Right Aftermarket Caliper
You don't need to buy an expensive OEM caliper from the dealer. Aftermarket brands offer excellent quality, often with improvements over the original design. When shopping, you'll see options for "New" or "Remanufactured" calipers. Both are good choices. Remanufactured calipers are original cores that have been completely disassembled, cleaned, and rebuilt with new seals, boots, and pistons. New calipers are made from 100% new materials.
Aftermarket Brand Tiers for Your CX-9

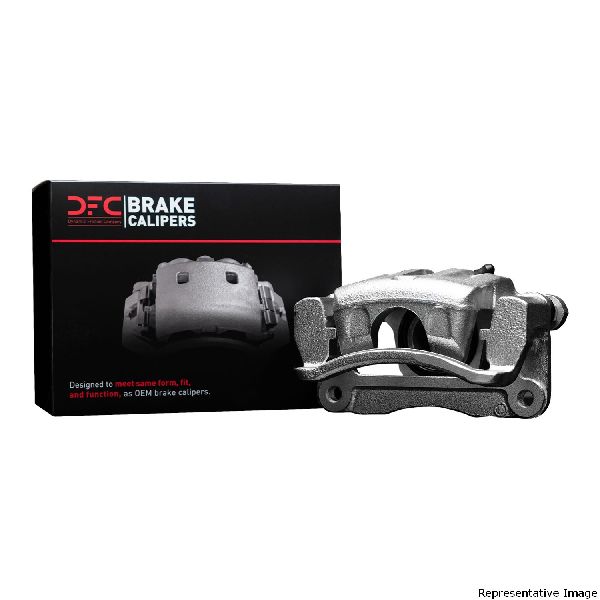

- Premium & Performance (PowerStop, Dynamic Friction, Raybestos Element3): These brands are excellent choices. PowerStop is known for its red powder-coated calipers that offer superior rust resistance and are often included in performance brake kits. Dynamic Friction and Raybestos (Element3 line) offer new, high-quality calipers with zinc coatings that prevent corrosion and are built to meet or exceed OEM standards. These are ideal for owners in wet or snowy climates. 🎬 See this DIY upgrade for CX-9 front pads and calipers.
- OEM-Quality Replacements (Centric, Cardone): These are trusted, mainstream brands. Centric is a major supplier of aftermarket brake parts and is considered a solid OEM-equivalent. Cardone offers both new (Cardone Select) and remanufactured (A1 Cardone) calipers that are pressure-tested and rebuilt with high-quality seals. While functional, their standard remanufactured calipers may not have the premium coatings of the top-tier brands, making them more susceptible to cosmetic rust over time.

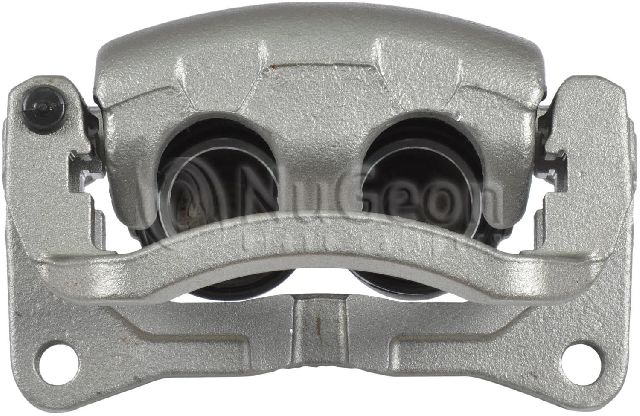

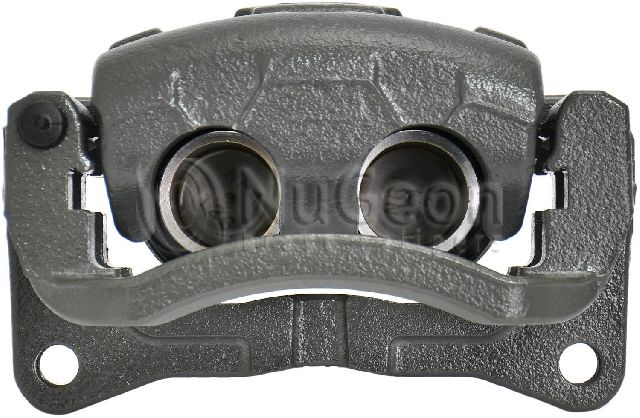

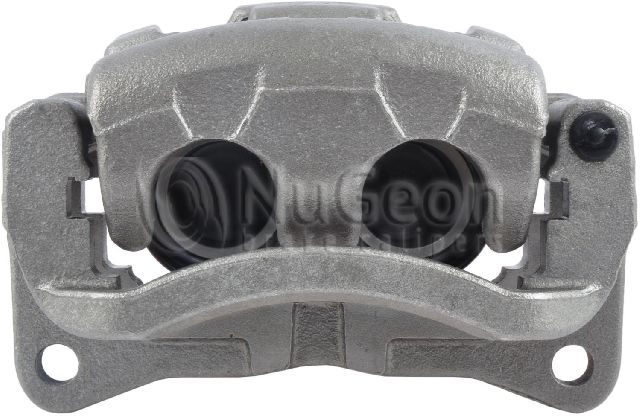

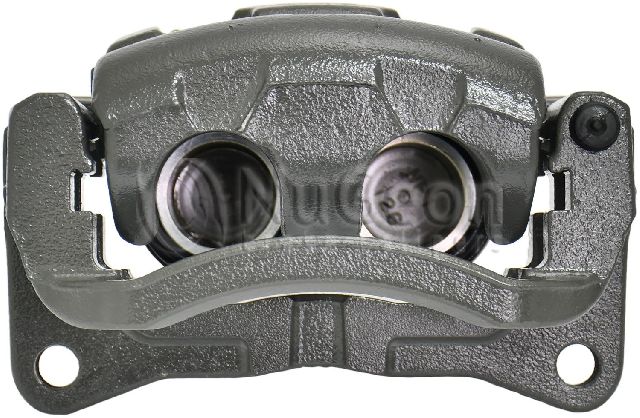

- Value-Oriented (BBB Industries, Store Brands): BBB Industries is a large remanufacturer of many auto parts. These calipers will restore function and are a cost-effective solution, but may lack the premium features and coatings of other brands.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Caliper | $61 - $240 |
| New OEM Caliper | $400 - $700+ |
| Shop Labor (per axle) | $150 - $300 |
Frequently Asked Questions
Should I replace calipers in pairs?
Yes, it is highly recommended. Calipers should always be replaced in pairs (both front or both rear) to ensure even braking performance and prevent your vehicle from pulling to one side. If one caliper has failed due to age, the other is likely not far behind.
What else should I replace with my calipers?
You must replace the brake pads and perform a full brake fluid flush when you replace calipers. It is also the perfect time to install new brake rotors and brake hoses, as a seized caliper often damages the rotor from overheating.
Is replacing a CX-9 caliper a DIY job?
For an experienced DIYer, yes. The job requires safely lifting the vehicle, using wrenches to remove the caliper and bracket, and properly bleeding the brake system to remove air. For 2016 models, you MUST put the electronic parking brake into service mode before starting. Failure to do this can destroy the new caliper. 🎬 Watch: How to put your electronic parking brake into maintenance mode. If you are not comfortable bleeding brakes or lack the tools, it's best to leave this job to a professional.
What's the difference between a caliper with a bracket and without?
The caliper bracket is the component that holds the caliper to the steering knuckle. Sometimes, the slide pins seize inside the bracket itself. Buying a caliper that includes a new, pre-lubricated bracket saves time and ensures all related components are new and moving freely. It is generally worth the small extra cost.
Helpful Videos
Technical Specifications

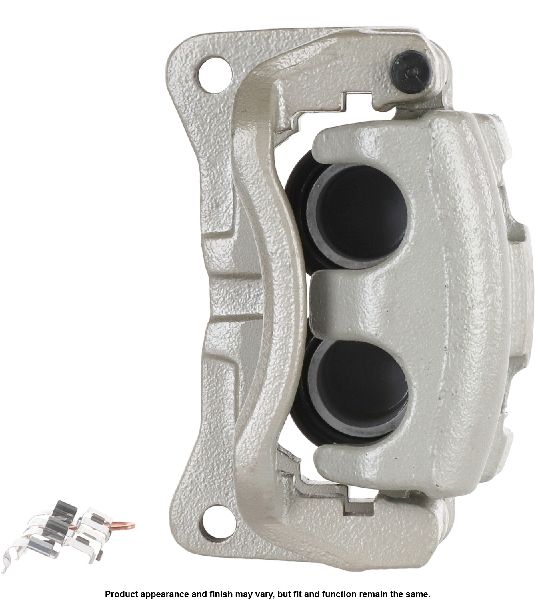

The 2007-2016 Mazda CX-9 uses a floating caliper design. The front calipers are a dual-piston design, while the rear calipers are a single-piston design. The 2016 model year features an Electronic Parking Brake (EPB) integrated into the rear calipers, which requires a special procedure to place into service mode for replacement.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
