A Guide to the Engine Camshaft Position Sensor for the 2007-2016 Mercedes-Benz GL450
Learn to identify failure symptoms and address the critical oil leak issue in your GL450's V8 engine.
- A known issue for GL450 V8s is oil leaking through the sensors into the wiring harness, potentially destroying the ECU.
- It is critical to replace all four sensors at the same time to prevent future failures and oil leaks.
- Choose high-quality aftermarket brands like Bosch, Hella, or Vemo that are known OEM suppliers for German vehicles.
- Symptoms like a check engine light, hard starting, rough idle, or stalling are strong indicators of a failing sensor.
A Critical Warning for GL450 Owners: Oil in the Wiring Harness
Before discussing symptoms or brands, you must know about a common and potentially catastrophic issue with the M273 (2007-2012) and M278 (2013-2016) V8 engines. The internal seals on the camshaft position sensors can fail, allowing engine oil to leak through the sensor's electrical connector.

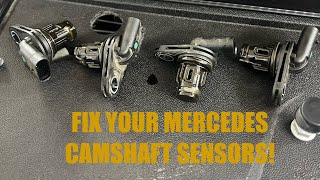

Through a process called capillary action, this oil can travel down the entire engine wiring harness and contaminate the main Engine Control Unit (ECU). 🎬 Watch this warning about how oil destroys your wiring harness. This can lead to thousands of dollars in repairs, including the replacement of the ECU and the complete wiring harness. For this reason, inspecting your sensors for oil leaks and replacing them proactively is one of the most important preventative maintenance jobs you can do.
Symptoms of a Failing Camshaft Position Sensor
When a camshaft position sensor begins to fail, your GL450 will give you clear warning signs. Initially, these may be intermittent, but they will worsen over time.
- Check Engine Light: This is often the first and most common symptom. The ECU will log fault codes related to the sensor's performance.
- Difficulty Starting: The engine may crank for a long time before it starts, or it may not start at all. This problem often gets worse as the sensor degrades.
- Rough Idle and Stalling: An erratic signal can cause the engine to vibrate, idle poorly, or stall unexpectedly, even while driving.
- Poor Acceleration: You may notice hesitation, stumbling, or a general lack of power when you press the gas pedal.
- Reduced Fuel Economy: Incorrect timing leads to inefficient combustion, causing your vehicle to use more fuel.
Choosing the Right Aftermarket Sensor
When it comes to critical electronic sensors on a Mercedes-Benz, quality matters. While saving money is tempting, a cheap, low-quality sensor can fail quickly or provide inaccurate data, leading to the same problems you were trying to fix. Forum discussions among Mercedes owners strongly recommend using either genuine OEM parts or brands known for supplying European automakers.
Pro Tip: Your GL450 uses four identical camshaft position sensors. It is highly recommended to replace all four at the same time. If one has failed due to age, the others are likely not far behind. This also ensures you address any potential oil leaks from all sensors at once.
Here’s a breakdown of available aftermarket brands:
- Tier 1 (OEM Quality): Bosch, Hella, and Vemo are excellent choices. Bosch is a massive OEM supplier for Mercedes-Benz, and their parts are trusted to meet or exceed factory specifications. Hella is another top-tier German brand with a strong reputation. The original sensors are often made by Continental.

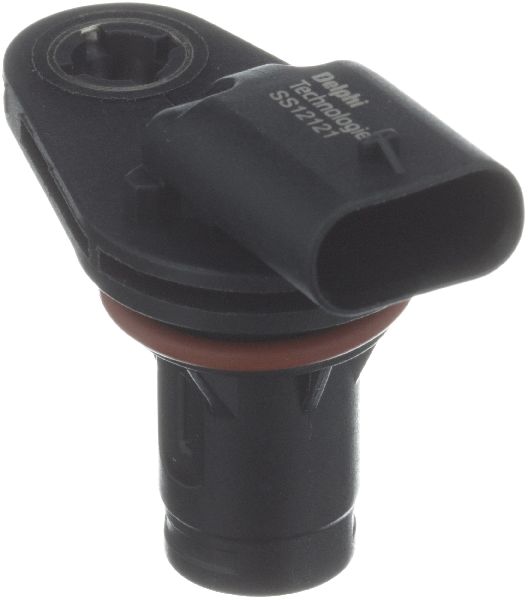

- Tier 2 (Reputable Aftermarket): Brands like Delphi, Standard Ignition (SMP), and Walker Products offer a good balance of quality and value. Delphi, in particular, has a history as an OEM supplier for many automakers and produces reliable sensors.
- Tier 3 (Value-Oriented): Other brands like Dorman, Beck Arnley, and Facet offer a lower price point. While they may function correctly, their long-term durability and the quality of their internal seals may not match that of the higher-tier brands, which is a critical consideration given the oil-wicking issue.
Installation Overview
Replacing the camshaft position sensors on the GL450 is a straightforward job that is feasible for a DIY mechanic. The four sensors are located on the front of the engine's cylinder heads, accessible after removing the plastic engine covers. 🎬 See this video to locate your sensors and VVT solenoids. Each sensor is held in place by a single external Torx (E-Torx) or standard Torx (T30) bolt. The process involves unclipping the electrical connector, removing the bolt, pulling the old sensor straight out, and installing the new one. Ensure the new O-ring is properly seated to prevent oil leaks.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Sensors (4) | $90 - $385 |
| Shop Labor | $100 - $200 |
| Estimated Total (Shop) | $190 - $585 |
Frequently Asked Questions
How many camshaft position sensors does my 2007-2016 GL450 have?
Your GL450 has a V8 engine with four camshafts (two intake, two exhaust). Therefore, it has four camshaft position sensors—one for each camshaft. All four sensors are typically the same part.
Do I have to replace all four sensors at once?
It is strongly recommended. The sensors are all the same age and operate under the same conditions. If one has failed, the others are likely to fail soon. More importantly, replacing all four allows you to prevent the critical oil-in-harness issue from all potential sources.
What is the oil-in-harness problem I keep hearing about?
This is a well-documented issue where the sensor's internal seal fails, allowing engine oil to seep into the electrical connector. The oil then travels through the wiring harness and can destroy the main engine computer (ECU), leading to a very expensive repair. Replacing failing sensors with high-quality new ones is the best prevention.
Is this a difficult DIY job?
For most DIYers, this is a relatively easy job. It requires basic tools, like a Torx socket set, and can typically be completed in about an hour. The sensors are located on the front of the engine and are easy to access after removing the plastic engine covers.
My code is P0341. Which sensor is that?
P0341 refers to a performance issue with the intake camshaft position sensor on Bank 1. Bank 1 on your GL450 is the passenger side of the engine. 🎬 Follow this walkthrough to fix a Bank 1 sensor code. However, a code for one sensor should prompt you to inspect and replace all four.
Helpful Videos
Technical Specifications
OEM Part Numbers: A2761530028 A2769051000
Your GL450 requires four identical Hall-effect type camshaft position sensors. They are located on the front of the cylinder heads for both the intake and exhaust camshafts.
