Essential Guide to the 2007-2016 Volkswagen Eos Engine Water Pump
Water pump failure is a known issue on the VW Eos, but understanding your options can prevent catastrophic engine damage.
- The original plastic water pump housing is a common failure point; prioritize an aftermarket replacement with an aluminum housing.
- Always replace the thermostat at the same time as the water pump, as they are typically sold as one assembly.
- A coolant leak is the most common symptom of failure. Do not ignore it, as it can lead to engine overheating.
- Due to the complexity and need for special tools, professional installation is recommended for most owners.
The Common Failure Point on the VW Eos Water Pump
If you own a 2007-2016 Volkswagen Eos, especially one with the 2.0T TSI engine, you should be aware of the water pump. The original factory water pumps often used a plastic housing. Over time, this plastic can become brittle and crack from constant exposure to heat cycles and engine oil leaks. Oil leaks from above, such as from a valve cover gasket, can drip onto the plastic housing and speed up its deterioration, leading to coolant leaks. This is not a rare occurrence; it is a well-documented issue for this engine family. In fact, the problem was so widespread on certain VW models with this engine that it led to class-action lawsuits and a warranty extension.
Known Issue: Plastic Housing Failure
The primary failure point for the water pump on many 2.0T TSI engines is the plastic housing, which can crack and cause significant coolant leaks. Volkswagen has issued technical service bulletins (TSBs) related to coolant leaks from the water pump area, advising technicians to inspect for oil contamination that can cause the gasket to swell and leak.
Choosing the Right Aftermarket Water Pump
When replacing the water pump on your Eos, you have many aftermarket choices. Because the original plastic design is a known weak point, many owners and mechanics opt for an upgraded aftermarket part. The quality can vary significantly between brands, so it's important to choose wisely for such a critical component.
Tier 1: OEM Supplier & Upgraded Designs
These brands are often original equipment manufacturers (OEMs) for Volkswagen or offer intelligently redesigned parts that address the original flaws. They are the top choice for reliability.
- Graf: Known for producing high-quality water pumps, Graf offers an upgraded version with a cast aluminum housing that directly replaces the failure-prone plastic original. This is a popular and highly recommended long-term solution.
- Hepu, Saleri, Pierburg: These are well-respected German brands, often cited as OEM suppliers to European car manufacturers. Their pumps are known for quality bearings and construction, providing reliability similar to or exceeding the original part.
- CRP (Continental): As a major OEM supplier, parts from CRP/Continental are trusted for their engineering and durability.
Pro Tip: Upgrade to a Metal Housing

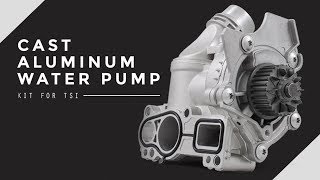

For the 2.0T TSI engine, strongly consider an aftermarket water pump kit that includes an aluminum housing. This upgrade directly addresses the most common failure point of the original part, providing much greater durability and peace of mind.
🎬 See why upgrading to an aluminum housing fixes the problem forever.Tier 2: Trusted Aftermarket Brands
These brands are well-known in the industry and offer a good balance of quality and value. They are a solid choice for most repairs.
- Gates: A giant in the world of belts and cooling system components, Gates offers complete kits that often include the water pump, belt, and tensioners. Their pumps are generally reliable and a popular choice.
- GMB: A reputable Japanese manufacturer known for producing quality water pumps for a wide range of vehicles.
- Dayco: Similar to Gates, Dayco is a major player in drive belts and related components, and their water pumps are considered a reliable option.
Tier 3: Budget-Friendly Options
These brands compete on price. While they can be a solution for a tight budget, their long-term reliability can be inconsistent. For a part that requires significant labor to replace, investing in a higher-tier brand is often more cost-effective in the long run.
- URO Parts: URO has a mixed reputation. While some of their "URO Premium" parts are re-engineered to fix common flaws and come with a good warranty, their standard parts are often seen as budget-quality with potential fitment or longevity issues.
- DJ Rock, DNJ, Skyward, US Motor Works: These brands fall into the economy category. Careful consideration is needed, as a premature failure of a budget water pump could lead to the same expensive repair job all over again, or worse, engine damage.
Cost to Replace a Volkswagen Eos Water Pump
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $46 - $422 |
| New OEM Part | $583 - $603 |
| Shop Labor | $720 - $1,056 |
| Total Professional Replacement | $766 - $1,478+ |
Cost estimates are based on national averages and can vary by location, vehicle specifics, and the chosen parts.
Frequently Asked Questions (FAQ)
Should I replace the thermostat at the same time?
Yes, absolutely. On the 2.0T TSI engine, the water pump and thermostat are typically part of a single integrated housing assembly. Most quality replacement kits include a new thermostat. Replacing them together is standard practice and prevents you from having to do the same labor-intensive job twice.
Is the water pump driven by the timing belt?
It depends on your engine. On the earlier 2.0T FSI (BPY engine code, ~2007-2008) engine, the water pump is driven by the timing belt. On these models, it is critical to replace the water pump during a timing belt service. On the later and more common 2.0T TSI (CCTA engine code) engine, the water pump is driven by a small, separate belt from the balance shaft, not the main timing chain.
Why did my Eos not get a recall for the water pump?
While Volkswagen and Audi settled class-action lawsuits and extended the warranty for water pump failures on many models, the specific vehicle coverage can be complex and often focused on newer model years (2014+). Your specific year and model may not have been included in the settlement terms. Regardless, the underlying issue with the plastic pump design is still relevant to the 2007-2016 Eos.
Can I install the water pump myself?
This is a challenging job for a DIY mechanic. Access is tight, it requires draining the cooling system, and on the TSI engine, it involves working around the intake manifold. 🎬 Follow this step-by-step DIY guide for replacing the TSI water pump. Special tools and a proper cooling system vacuum bleeder are recommended. While possible for an experienced home mechanic, it is often best left to a professional if you are not confident.
🎬 Watch a professional technician perform this complex water pump replacement.Helpful Videos
Technical Specifications
OEM Part Numbers: 06H121026DD 06H121026CQ 06H121026BA 06H121026CF 06H121026AB 06H121026B
Primarily fits 2.0L Turbo (TSI/TFSI) engines. Construction varies from OEM plastic to aftermarket aluminum housings. Often includes integrated thermostat housing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
