GMC Acadia Power Steering Pump Guide for 2007-2017 Models
Experiencing whining noises or stiff steering in your Acadia? Your power steering pump might be the culprit.
- Power steering pump failure is a well-documented, common problem on 2007-2017 GMC Acadias.
- Symptoms usually start with a whining noise that gets louder when turning.
- Always flush the system and consider replacing the high-pressure hose when installing a new pump to prevent premature failure.
- For 2007-2011 models, check if the repair was previously done under GM's Special Coverage 14329, though this program is now expired.
Is Your GMC Acadia Power Steering Pump Failing?
Power steering pump failure is a very common issue for the 2007-2017 GMC Acadia. The most frequent signs are noises from the engine bay and a change in steering feel. Ignoring these symptoms can lead to more expensive repairs down the road.
Common Symptoms of a Bad Pump:
- Whining or Moaning Noises: This is the most common symptom. You'll hear a distinct whining or groaning sound that changes with engine RPM and gets louder when you turn the steering wheel. This is often caused by low fluid, air in the system, or the pump itself wearing out.
- Stiff or Heavy Steering: If turning the wheel suddenly requires much more effort, the pump is likely not producing enough hydraulic pressure. This can be intermittent at first but will worsen over time.
- Leaking Power Steering Fluid: Finding reddish or brownish fluid under the front of your Acadia is a clear sign of a leak. The pump can leak from its main seal behind the pulley or from where the hoses connect. 🎬 Watch: How to identify a leaking power steering pump
Known Issues: Special Coverage Adjustment 14329
For some 2007-2011 GMC Acadia models, GM issued a special warranty extension for power steering problems. This program, known as Special Coverage Adjustment 14329, covered the loss of power steering assist for 10 years or 150,000 miles from the vehicle's first day in service. Under this program, dealers would replace the power steering pump, flush the system, and sometimes replace the steering gear housing at no charge. While this program has expired for all eligible vehicles due to age, its existence highlights how common this failure is. If your Acadia is a later model (2012-2017), it was not covered, but it can still experience the same failures.

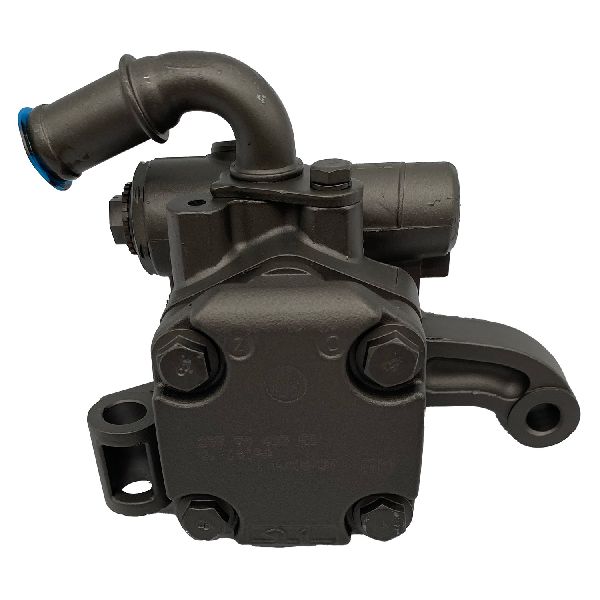

Choosing the Right Aftermarket Power Steering Pump
When your original pump fails, you have several options. Since new OEM pumps can be costly, many owners choose a new aftermarket part. Aftermarket parts are designed to meet or exceed original specifications and can offer excellent value. Here’s a look at the brands available.
- Premium Aftermarket (PWR): Brands like PWR focus on producing 100% new parts, not remanufactured ones. They often come "installation ready" with the pulley and necessary seals included, which can save time and hassle during the repair. Reviews are generally positive, though occasional noisy units have been reported.
- Standard Aftermarket (BBB Industries, Mapco): These brands offer a mix of new and remanufactured parts. BBB Industries is a common remanufacturer; their process involves cleaning, inspecting, and replacing seals and bearings. However, quality can sometimes be inconsistent with remanufactured parts, with some users reporting early failures or issues.
- Economy (Replacement): This category typically includes generic or white-label brands that offer the lowest price. While budget-friendly, they may not have the same level of quality control or longevity as more established brands. They can be a viable option for a tight budget, but be aware of the potential trade-offs in durability.
Pro Tip: Replace More Than Just the Pump
When a power steering pump fails, it can send metal particles throughout the entire system. To prevent these contaminants from destroying your new pump, it is critical to flush the entire system with fresh fluid. It is also highly recommended to replace the high-pressure power steering hose at the same time, as old hoses can break down internally and cause contamination.
Cost of Replacing a GMC Acadia Power Steering Pump
The total cost depends on whether you do the work yourself or hire a professional. The job is moderately difficult and can be done by a skilled DIYer.
🎬 See this walkthrough for replacing the pump without removing the frame| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $120 - $288 |
| Shop Labor | $607 - $891 |
| Total Professional Replacement | $841 - $1,124 |
Frequently Asked Questions
What fluid should I use in my Acadia's power steering system?
Most 2007-2017 GMC Acadia models use DEXRON-VI automatic transmission fluid as power steering fluid. However, always check your owner's manual or the cap of the reservoir to confirm the correct fluid for your specific vehicle before adding or changing it.
Can I replace the power steering pump myself?
Yes, if you have moderate mechanical skill and the right tools. The job involves removing the serpentine belt, draining the fluid, unbolting the pump, and potentially using a special tool to remove and install the pulley. The most critical step after installation is to properly bleed all the air out of the system to prevent noise and damage to the new pump.
🎬 Watch: How to correctly fill and bleed the power steering systemWhy is my new power steering pump still whining?
A whining noise after replacement is almost always caused by air trapped in the system. The system must be properly bled by raising the front wheels off the ground and turning the steering wheel from lock to lock multiple times until no more bubbles appear in the reservoir. In rare cases, the new pump itself could be faulty.
Does the 2017 Acadia use the same pump?
It depends. The 2017 model year was a transition year. If you have a 2017 GMC Acadia 'Limited' model, it uses the same older body style and parts as the 2007-2016 models. The completely redesigned 2017 Acadia uses a different power steering system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 20954812
Hydraulic pump, belt-driven. Requires DEXRON-VI fluid. Some aftermarket models come with pulley pre-installed.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
