Jeep Patriot Windshield Washer Pump Replacement Guide (2007-2017)
Everything a Jeep Patriot owner needs to know when your windshield washer pump fails.
- Check for Safety Recall S83 before buying parts; you may get a free replacement pump from Jeep.
- Replacement is a simple DIY job that takes under an hour and requires basic tools.
- If you hear the pump run but get no fluid, your system is likely clogged with sludge, not broken.
- Quality aftermarket brands like Crown or Trico offer a reliable alternative to the more expensive OEM part.
Is Your Jeep Patriot Washer Pump Failing?
When your washer pump gives out, the symptoms are usually obvious. Understanding the specific symptom can help you diagnose the problem correctly before you buy parts. The two most common failure scenarios are a dead pump or a clogged system.
IMPORTANT: Safety Recall S83 / NHTSA 16V-813
Before buying any parts, check if your Jeep Patriot is affected by this critical safety recall. The original washer pump on some vehicles could create a voltage spike that disables the entire windshield wiper system, not just the washers. A loss of wiper function in bad weather could cause a crash. An authorized Jeep dealer will replace the faulty pump for free. Contact a dealer with your Vehicle Identification Number (VIN) to see if your Patriot is covered.
Symptoms of a Bad Washer Pump
- No Sound, No Fluid: If you activate the washers and hear nothing but silence, the pump motor has likely failed electrically. This is a straightforward pump replacement.
- Motor Sound, But No/Weak Fluid: If you can hear the pump motor humming but little or no fluid comes out, the problem could be a clog. Sludge can build up in the washer fluid tank and clog the pump's filter screen. Other causes include cracked or disconnected hoses or clogged nozzles.
- Leaking Fluid: If you notice blue or green fluid pooling under the passenger side of your vehicle, the pump body or the grommet that seals it to the reservoir may have cracked and is leaking.
Choosing the Right Aftermarket Pump for Your Patriot
For the 2007-2017 Jeep Patriot, you have a few options. While an OEM Mopar part offers a guaranteed fit, quality aftermarket parts provide a reliable repair without the high dealer price tag.
- OEM Mopar: The original part (part numbers include 5179153AC, 5179153AB, 5179153AA) is a perfect fit but is the most expensive option. Some owners prefer OEM after experiencing poor spray patterns from cheap, no-name online parts.
- Premium Aftermarket (Crown, Trico): Brands like Crown Automotive and Trico specialize in OE-style replacement parts. They are designed to match the original's fit and function, providing a good balance of quality and value. Crown is a well-known brand specifically for Jeep replacement parts. Trico is also marketed as an easy-to-install, reliable option. These are solid choices for a DIY repair.
Pro Tip: When replacing the pump, it's a good idea to also replace the small rubber grommet that seals the pump to the reservoir. Many aftermarket kits include a new one. Also, take the opportunity to clean any sludge out of the reservoir tank.
🎬 Watch how to remove the entire reservoir for deep cleaning.Windshield Washer Pump Replacement Cost
The cost to replace the washer pump on a Jeep Patriot is reasonable, especially if you do it yourself. The part itself is not expensive.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $85 - $125 |
| New OEM Mopar Part | $110 - $165 |
| New Aftermarket Part | $20 - $60 |
| Total Professional Replacement | $230 - $270 |
Frequently Asked Questions (FAQ)
Is it hard to replace a Jeep Patriot washer pump myself?
No, this is a great job for a beginner. The pump is located on the passenger side, pushed into the bottom of the washer fluid reservoir. You may need to move the coolant overflow tank to get clear access. The job involves simply unplugging the electrical connector, pulling off two hoses, and pulling the old pump out of the reservoir. The new one pushes right back in. The whole process should take less than an hour.

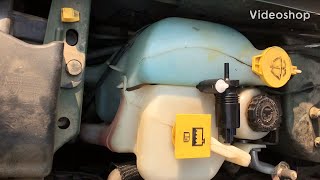

🎬 See a quick walkthrough of the pump replacement process.Why do I hear the pump but no fluid sprays out?
This usually points to a clog, not a failed pump motor. Over time, residue from washer fluid can form a sludge in the bottom of the reservoir, clogging the pump's filter. The fix is to remove the pump and clean the filter and reservoir. It could also be that the washer nozzles on the hood are clogged with wax or debris, which can be cleared with a small pin.
🎬 Watch this guide to diagnose weak spray or clogged lines.How do I check for the washer pump recall?
You can call any authorized Chrysler, Dodge, Jeep, or Ram dealer and provide them with your Vehicle Identification Number (VIN). They can look up your vehicle and tell you if it's affected by Safety Recall S83 and if the repair has already been performed. You can also check on the NHTSA or Mopar recall websites.
Does the same pump work for the front and rear windows?
Yes. The 2007-2017 Jeep Patriot uses a single, dual-direction pump for both the front and rear washers. The pump motor spins in one direction to send fluid to the front and reverses direction to send it to the back.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5179153AC 5179153AB 5179153AA 05152075AA 05152075AB 05152075AC 05179153AA 05161319AA
12V electric motor, dual-direction flow for front and rear washers, press-fit installation into washer reservoir.
