Lexus LS460 A/C Expansion Valve Guide for 2007-2017 Models
If your LS460's air conditioning is blowing warm or works intermittently, the A/C expansion valve could be the culprit.
- A bad expansion valve typically causes warm or inconsistent A/C cooling in the LS460.
- Before replacing the valve, rule out other common LS460 issues like a bad A/C amplifier or a failed cooling fan motor (TSB LSB-0029-11).
- Denso is the OEM-quality brand for this part; Four Seasons and Global Parts are reliable, budget-friendly aftermarket choices.
- Whenever the A/C system is opened, the receiver/drier must also be replaced to protect the new components from moisture damage.
Is Your Lexus LS460 A/C Not Working?
A failing A/C expansion valve is a common reason for air conditioning problems in the LS460. When this part malfunctions, it disrupts the flow of refrigerant, leading to a lack of cold air. Symptoms can appear suddenly or get progressively worse over time.
Symptoms of a Bad A/C Expansion Valve
Diagnosing a bad expansion valve can be tricky, as its symptoms often overlap with other A/C system failures. Look for these specific signs:
- Warm Air from Vents: This is the most common symptom. If the valve is stuck closed, it restricts refrigerant flow to the evaporator, preventing cooling.
- Intermittent Cooling: The A/C might blow cold for a while and then switch to warm. This can happen if the valve is sticking or operating erratically.
- Frost on A/C Components: You might see frost or ice forming on the expansion valve itself or the A/C lines near the firewall. This can indicate the valve is stuck open, allowing too much refrigerant into the evaporator.
- Hissing Sound from the Dashboard: A continuous hissing noise from the dash area with the A/C on can be a sign of a faulty valve trying to manage refrigerant flow.
Check These LS460-Specific Issues First
Before you blame the expansion valve, be aware of other known issues on the LS460 that cause similar A/C problems:
- Faulty A/C Amplifier: Many owners report erratic A/C behavior caused by a failed A/C amplifier (the system's computer), located behind the glove box. Symptoms include the screen showing "Check the connection to the air conditioner" or random temperature changes.
- Inoperative Cooling Fan: Lexus issued Technical Service Bulletin (TSB) LSB-0029-11 for 2007-2011 LS460 models concerning a faulty cooling fan motor. If the fan doesn't pull air through the condenser when the car is stopped, the A/C will get warm in traffic but may cool down while driving at speed.
Choosing the Right Aftermarket Expansion Valve
Since the Lexus OEM part can be expensive, many owners choose an aftermarket replacement. The quality can vary, so it's important to know the brands.
Tier 1: OEM-Equivalent Quality
- Denso: Denso is the original equipment manufacturer for many Toyota and Lexus parts. Choosing a Denso expansion valve is the safest bet for guaranteed fit, performance, and longevity, closely matching the part your car was built with.
Tier 2: Quality Aftermarket Alternatives

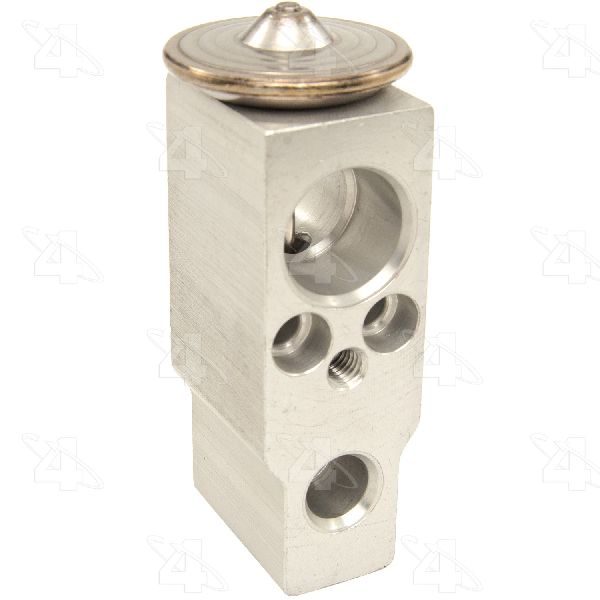

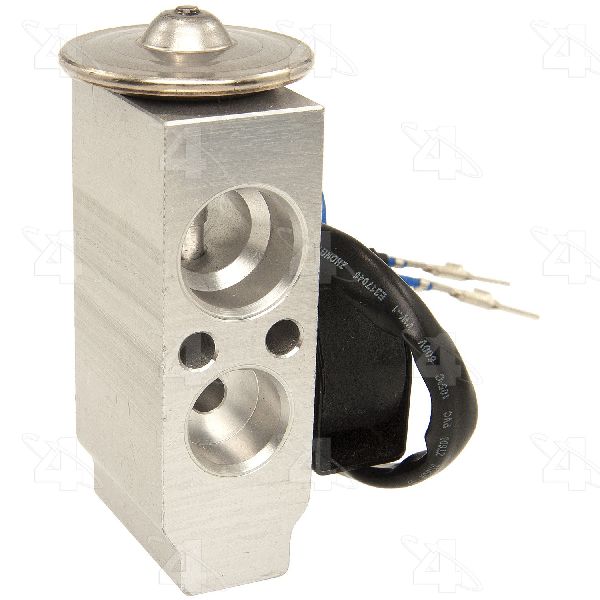

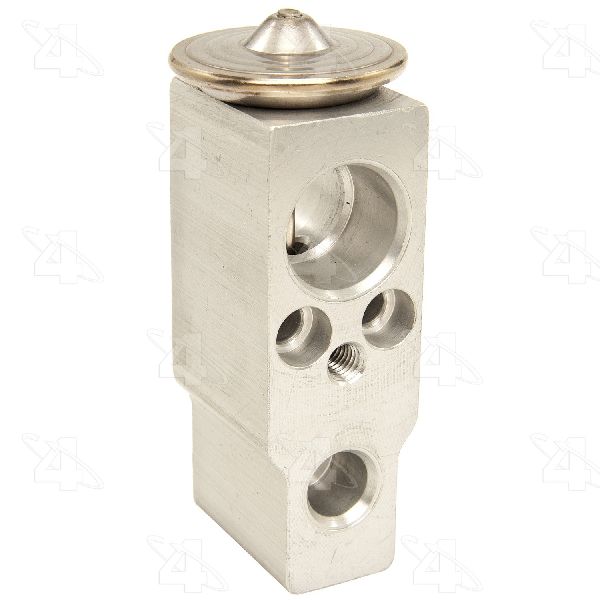

- Four Seasons: A well-known aftermarket brand that offers a wide range of A/C components. Their parts are generally considered a reliable and cost-effective alternative to OEM.

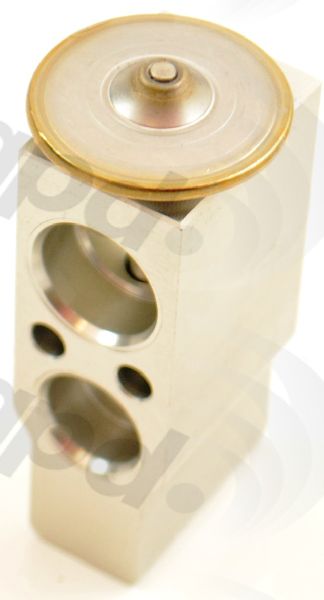

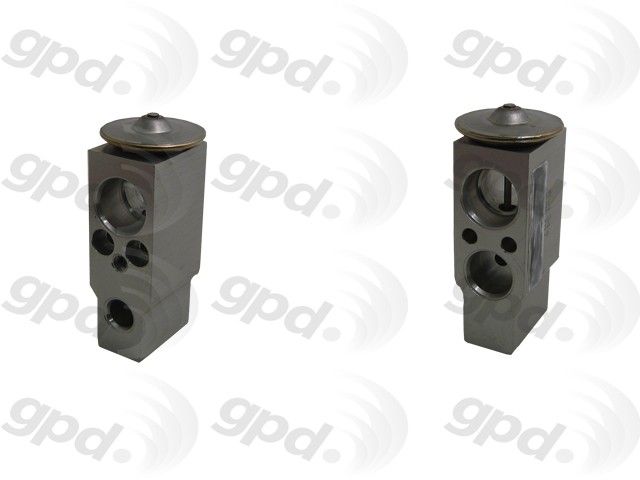

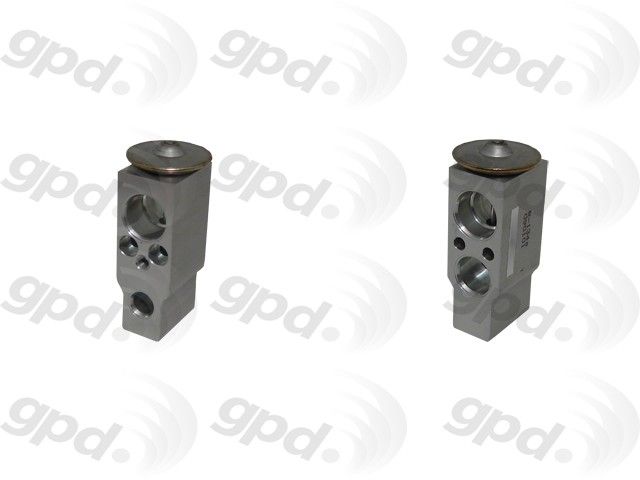

- Global Parts Distributors (GPD): GPD is a large aftermarket supplier that engineers its parts to meet or exceed OE specifications. They perform 100% helium leak testing on their components to ensure reliability.
Always Replace the Receiver/Drier
Anytime the A/C system is opened for a repair, you MUST replace the receiver/drier (also called the desiccant bag). This part absorbs moisture from the refrigerant. Once exposed to open air, it becomes saturated and useless. Failing to replace it will lead to poor A/C performance and can cause your new expansion valve or compressor to fail prematurely.
Cost to Replace the LS460 A/C Expansion Valve
The cost involves the part itself and the labor to install it, which includes recovering the old refrigerant, flushing the system, and recharging it.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New Aftermarket Part | $30 - $71 | Price for a Denso, Four Seasons, or Global Parts valve. |
| New OEM Part | $198 - $281 | Estimated cost for the genuine Lexus part. |
| Shop Labor | $891 - $1,307 | This estimate from RepairPal seems very high and may include the evaporator core replacement, which is a much larger job. Labor for only the valve should be closer to 2-4 hours. |
| Total Professional Job | $921 - $1,588 | Total estimated cost using an aftermarket part and the high labor estimate. |
Frequently Asked Questions (FAQ)
Where is the A/C expansion valve located on the 2007-2017 Lexus LS460?
The expansion valve is located behind the glove box, attached directly to the A/C evaporator core inside the passenger cabin. Access requires removing the glove box assembly.
Can I replace the expansion valve myself?
While the physical replacement is possible for a skilled DIYer, the job requires specialized and expensive A/C equipment. The refrigerant must be legally recovered by a certified shop before you start, and after installation, a vacuum pump and manifold gauges are needed to remove air and moisture before recharging the system with the correct amount of refrigerant. For most owners, this is a job best left to a professional.
Are there any recalls for the LS460 A/C system?
No, there are no specific recalls for the A/C expansion valve or other major A/C components on the 2007-2017 Lexus LS460. Always check for the latest information using your vehicle's VIN on the NHTSA website.
Should I use a stop-leak product for my A/C?
No. A/C stop-leak products are not recommended. They can clog the tiny passages in the expansion valve, condenser, and other components, leading to more expensive repairs down the road. The proper fix is to find the leak and replace the faulty part.
Technical Specifications
OEM Part Numbers: 88515-30740
Block Type Expansion Valve
