Lexus LS460 A/C System O-Ring and Gasket Kit Guide for 2007-2017 Models
If the A/C in your LS460 is blowing warm, the original o-rings and gaskets are a common failure point worth investigating.
- Aging o-rings are a very common cause of A/C refrigerant leaks on the 2007-2017 LS460.
- Before diagnosing a leak, check for proper cooling fan operation, as a faulty fan can mimic leak symptoms (TSB LSB-0029-11 for 2007-11 models).
- Replacement is not a DIY job; it requires professional equipment to evacuate and recharge the refrigerant.
- When replacing any seals, you must also install a new receiver/drier element to prevent moisture contamination and ensure a lasting repair.
Is a Leaking O-Ring the Cause of Your LS460's Warm A/C?
The most common reason for an air conditioning system to stop cooling is a loss of refrigerant. In the 2007-2017 Lexus LS460, the small rubber o-rings and gaskets used to seal the A/C lines and components are frequent culprits. As these seals age, they lose their flexibility and fail, creating slow leaks that eventually leave the system without enough refrigerant to operate.
Pro Tip: Check This First!
Before you suspect a refrigerant leak, check your cooling fans. Lexus issued a Technical Service Bulletin (TSB LSB-0029-11) for 2007-2011 LS460 models regarding potentially inoperative cooling fan motors. A failed fan can't pull air through the condenser when you're stopped or moving slowly, causing the A/C to blow warm air, which mimics the symptoms of a leak. Ensure your fans run when the A/C is on before proceeding with more expensive diagnostics.
Symptoms of a Failing A/C O-Ring
- Warm Air From Vents: This is the most obvious sign. The system can't cool without the proper amount of refrigerant.
- Gradual Loss of Cooling: A slow leak will cause cooling performance to degrade over several days or weeks.
- Oily Residue at Connections: Refrigerant contains a special lubricating oil. A leak will often leave a dirty, oily film on the A/C line or component where the seal has failed.
- Compressor Clutch Doesn't Engage: A pressure switch will prevent the A/C compressor from turning on if the refrigerant level is too low. This is a safety measure to prevent damage.
Choosing the Right Aftermarket O-Ring Kit
When servicing your LS460's A/C system, you have a choice between OEM seals from a Lexus dealer and complete aftermarket kits. For this part, an aftermarket kit is often a smart choice.
OEM vs. Aftermarket

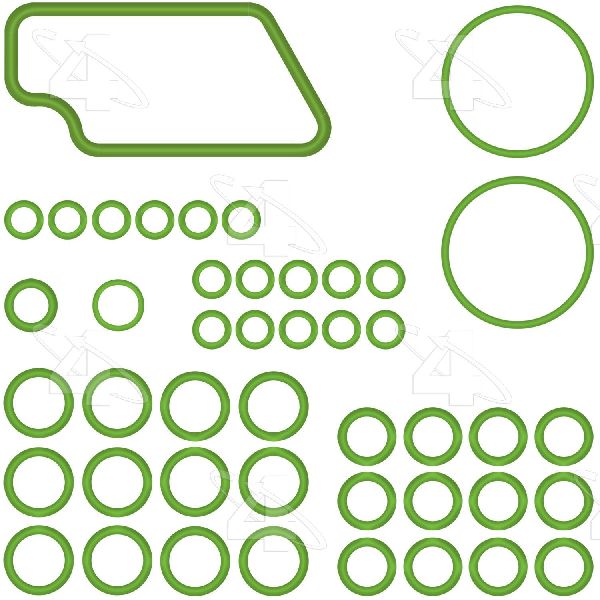

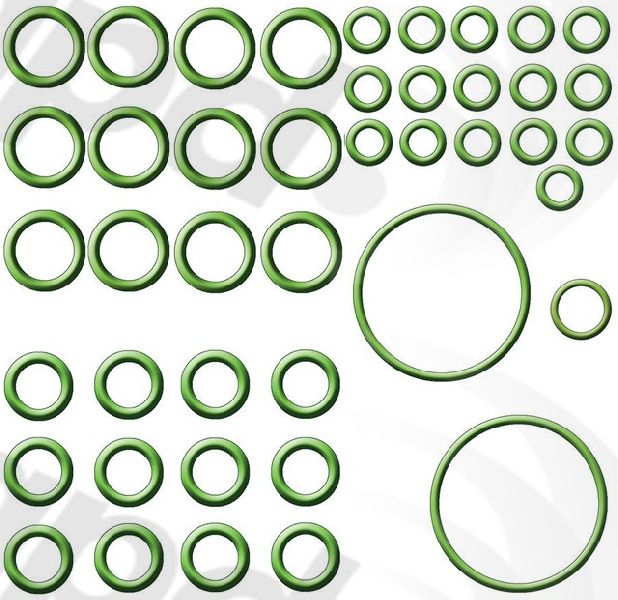

The original A/C system in your Lexus was supplied by Denso. You can buy individual seals from the Lexus dealer, but this is the most expensive option and requires you to identify every single seal you need. Aftermarket kits from brands like Four Seasons and Global Parts Distributors (GPD) offer a convenient and budget-friendly alternative. These kits bundle all the necessary seals for the job into one package. They are made from the same modern HNBR rubber as OEM seals, which is designed to be fully compatible with R-134a refrigerant. While some professional mechanics prefer OEM for perfect fitment, quality aftermarket seal kits are widely used and considered reliable for this type of repair.
Mandatory Replacement: The Receiver/Drier
Anytime the A/C system is opened to the atmosphere for a repair, you must replace the receiver/drier (also called the desiccant element). This component absorbs moisture from the refrigerant. Once exposed to air, it becomes saturated and useless. Failing to replace it will lead to corrosion, poor performance, and the rapid failure of expensive parts like your new A/C compressor.
Cost to Replace A/C O-Rings on a Lexus LS460
While the o-ring kit itself is inexpensive, the labor is where the majority of the cost lies. The job requires specialized equipment to recover the old refrigerant and then vacuum test and recharge the system. This is not a typical DIY project.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket O-Ring Kit | $26 - $29 |
| New OEM O-Ring Kit | $70 - $120+ (often sold individually) |
| Shop Labor (including system evacuation & recharge) | $350 - $600 |
Costs are estimates and can vary based on your location and the specific repair shop.
Frequently Asked Questions (FAQ)
Can I just add more refrigerant if my A/C is blowing warm?
Adding refrigerant is only a temporary fix for a leak. The A/C system is a sealed loop; if it's low on refrigerant, it means there is a leak that must be found and repaired. Continuously adding refrigerant is not a solution and allows moisture to enter the system, which can cause further damage.
Is replacing A/C o-rings a DIY job?
This is not recommended for a DIYer. The job requires expensive, specialized equipment to handle the refrigerant safely and legally. Improper handling can be harmful and damage the A/C system. This job is best left to a qualified mechanic.
Should I replace all the o-rings at once?
If you are opening the system to replace a major component like a compressor or condenser, it is highly recommended to replace all accessible o-rings at the same time. The cost of the seals is minimal compared to the labor of evacuating and recharging the system again if another old seal fails later.
What is the difference between green and black o-rings?
The green color typically indicates that the o-rings are made of HNBR (Hydrogenated Nitrile Butadiene Rubber), which is specifically designed for use with modern R-134a and R-1234yf refrigerants. You should only use o-rings specified for automotive A/C systems.
Technical Specifications
OEM Part Numbers: Note: OEM o-rings are typically sold individually based on location. A complete kit part number is not commonly available from Lexus.
Material: HNBR (Hydrogenated Nitrile Butadiene Rubber), Compatible with R-134a refrigerant.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
