A Guide to the Engine Oil Cooler for the 2007-2018 BMW X5
Understanding common leaks and choosing the right replacement part for your E70 or F15 X5.
- The most common failure is not the metal cooler, but the inexpensive rubber gaskets that seal it.
- Oil leaks are the primary symptom, but oil mixing with coolant is a serious sign of internal failure.
- It is strongly recommended to replace the oil filter housing gasket (OFHG) at the same time as the oil cooler gasket.
- If oil has leaked onto the serpentine belt, it must be replaced to prevent it from snapping and causing severe engine damage.
Is Your BMW X5's Engine Oil Cooler Failing?
A problem with the engine oil cooler is a common issue for BMW X5 owners, but the failure is almost always the rubber gasket, not the metal cooler itself. The gaskets become hard and brittle over time due to intense engine heat, leading to leaks. It's crucial to identify the symptoms early 🎬 Watch: How to tell if your BMW X5 has an oil cooler to prevent more serious engine problems.
Key Failure Symptoms
- External Oil Leaks: This is the most common sign. You may find puddles of dark oil under the front of your X5 or notice a film of oil and grime on the engine, especially around the oil filter housing. A burning oil smell is also common as the leaking oil drips onto hot exhaust parts.
- Oil in the Coolant: If the gasket fails internally, oil can be forced into the cooling system. This creates a thick, milky or sludgy substance in your coolant expansion tank that looks like a chocolate milkshake. 🎬 See a visual guide on common oil cooler gasket failure symptoms
- Coolant in the Oil: A more dangerous, though less common, symptom is coolant leaking into the oil. This will make the oil on your dipstick or oil cap appear milky and can quickly lead to severe engine damage.
- Engine Overheating: If the cooler is clogged or has a major leak, it can't cool the oil effectively, leading to higher engine temperatures. You might see the temperature gauge climb or get a dashboard warning light.
A Note on the Oil Filter Housing Gasket (OFHG)
On many BMW X5 engines, particularly the popular inline-six N55, the oil cooler bolts directly to the oil filter housing. The gasket between the housing and the engine block (the OFHG) is the most frequent source of oil leaks in this area. It is highly recommended to replace both the oil cooler gasket and the oil filter housing gasket at the same time, as they are prone to failing around the same time and the labor involved overlaps significantly.

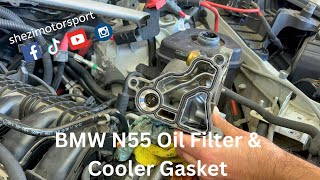

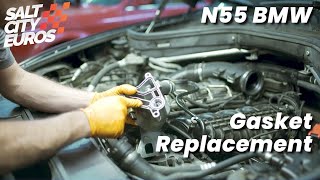

🎬 Watch this DIY walkthrough for replacing both gaskets on an N55Choosing the Right Aftermarket Engine Oil Cooler
When replacing your oil cooler, you have several brand choices. Since the gaskets are the primary failure point, selecting a quality part is key to a lasting repair.
- OEM-Level Quality (Top Tier): Brands like Mahle are often the original equipment manufacturer (OEM) for BMW. Choosing a Mahle part is essentially like buying the genuine part without the dealership price tag. Nissens is another highly-regarded European brand known for quality cooling system components.
- Reputable Aftermarket (Mid Tier): Vemo and URO Parts offer a more budget-friendly alternative. Vemo is generally considered to be of good quality. URO Parts can have a mixed reputation, but their quality has improved over the years, and they can be a viable option if cost is a major concern.
- Performance Brands: Derale is known for performance and universal cooling solutions. While they make quality products, ensure you are buying a direct-fit part designed specifically for your X5 model and engine to avoid installation issues.
Pro Tip: Regardless of the brand you choose for the cooler itself, always use new, high-quality gaskets. Reusing old gaskets or using low-quality seals will almost certainly lead to the leak returning.
Cost of Replacing a BMW X5 Engine Oil Cooler
The total cost depends on whether you do the work yourself or use a repair shop. The job requires draining both oil and coolant.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Engine Oil Cooler | $72 - $127 |
| New OEM Engine Oil Cooler | $200 - $400 |
| Shop Labor | $464 - $681 |
| Total Professional Replacement | $536 - $1,081+ |
Frequently Asked Questions
Is it the oil cooler or the oil filter housing gasket that's leaking?
It can be difficult to tell. The oil filter housing gasket (OFHG) is the most common leak source on inline-six engines like the N55. Because the oil cooler attaches to the housing, a leak from either gasket looks very similar. Best practice is to replace both gaskets at the same time to avoid having to do the job twice.
What else should I replace during this repair?
Since you will be draining the oil and coolant, it's the perfect time for an oil change with a new filter. It's also wise to replace the main oil filter housing gasket (OFHG). If your serpentine belt has been contaminated with leaking oil, it should be replaced immediately, as oil can cause the rubber to degrade and fail, potentially causing major engine damage.
Are there any recalls for the engine oil cooler on the 2007-2018 X5?
There are no widespread recalls specifically for the engine oil cooler itself on most X5 models. However, there have been recalls for related components on certain models, like the EGR cooler on diesel X5s (NHTSA 18V755), which can also cause coolant leaks. Always check for recalls specific to your vehicle's VIN with the NHTSA.
Can I upgrade my X5's oil cooler?
Yes, performance-oriented oil coolers are available. Some owners, particularly those with the high-performance V8 models, may choose to upgrade to a larger cooler or a sport oil cooler valve that opens at a lower temperature to improve cooling. For most daily drivers, a quality OEM-style replacement is sufficient.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11427525333 11427788462 11428510855 11428583901

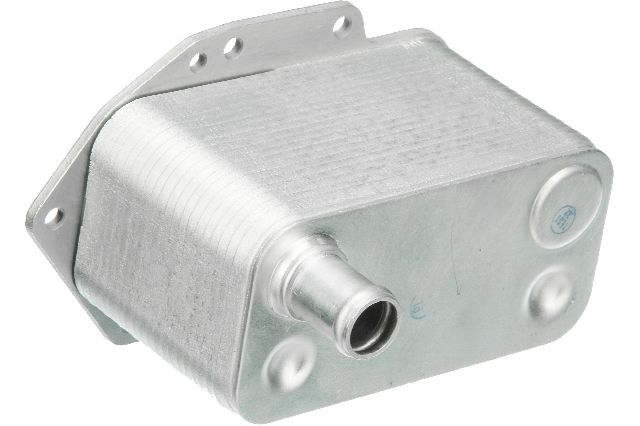

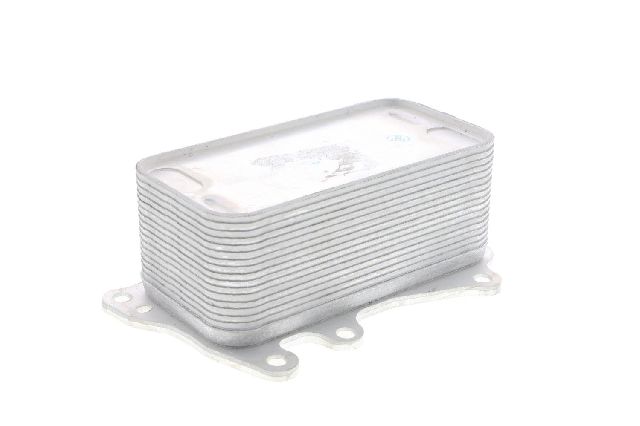

The BMW X5 typically uses a water-to-oil heat exchanger that mounts to the oil filter housing assembly. The primary failure point is the set of rubber gaskets that seal the cooler to the housing and the housing to the engine block.
