GMC Sierra Spark Plug Wire Set Guide (2007-2018): V6 & 6.0L V8
If your Sierra has a 4.3L V6 or a 6.0L V8, this guide to spark plug wires is for you.
- Verify your engine! This part is only for the 4.3L V6 and 6.0L V8 models from 2007-2018.
- Symptoms include rough idle, engine hesitation, and poor gas mileage.
- For stock trucks, Denso and Standard Wires are excellent OE-style replacements.
- Replacement is an easy DIY job; replace one wire at a time and use dielectric grease.
Is This Guide For My Truck? V6 vs. V8 Engines
Engine Confirmation Required
This guide is ONLY for 2007-2018 GMC Sierra models equipped with a 4.3L V6 or 6.0L V8 engine. These engines use a full set of spark plug wires. If your Sierra has a 4.8L, 5.3L, or 6.2L V8, it uses a Coil-On-Plug (COP) system which does NOT use these traditional wire sets. Always confirm your engine size before buying.
Signs of Failing Spark Plug Wires
When spark plug wires wear out, the electrical energy can't reach the spark plug effectively. This leads to noticeable engine problems. The wire's insulation can crack from constant heat, allowing the spark to jump to the engine block instead of the plug. This is called an arc-out. Symptoms are often worse in damp weather.
- Rough Idle: The engine shakes or vibrates when the truck is stopped.
- Engine Misfires: You may feel a stutter or hesitation from the engine, especially when accelerating. This can cause the Check Engine Light to flash with codes like P0300.
- Reduced Power and Fuel Economy: The truck feels sluggish and you'll find yourself at the gas station more often.
- Visible Damage: A visual check may reveal cracks, burns, or melting on the wire jackets.
- Hard Starting: The engine cranks longer than usual before it starts.
Choosing the Right Aftermarket Wires
You don't need to buy expensive OEM wires. Aftermarket brands offer excellent quality, often with improvements over the original stock wires.
Tier 1: OE-Style Replacement Brands
These brands provide reliable, direct-fit replacements that meet or exceed factory specifications. They are perfect for a daily driven truck with a stock engine.
- Denso: Known for high-quality parts that often mimic original equipment. Denso wires feature OE-style end caps that click into place for a secure fit, preventing separation during installation. They are a trusted option for a standard replacement.
- Standard Wires (Standard Motor Products): SMP is a long-time leader in aftermarket ignition parts. Their main "red box" line is considered a dependable, high-quality choice for everyday use. They are a go-to for mechanics who want a reliable part without the OEM price tag.
- Walker Products: Offers durable, affordable wire sets designed to meet or exceed OE specifications, making them a solid value-based choice.
Tier 2: Performance Brands
These brands offer thicker wires, lower resistance, and enhanced heat protection. They are a good choice if you want a durability upgrade or have performance modifications.
- Edelbrock: A popular performance brand. Their Max-Fire wires often feature a thicker 8.5mm diameter and come with heat shields, which is a noticeable upgrade over stock. Owners often report a smoother idle and better throttle response after installing them.
- Pertronix: Known for performance ignition systems, Pertronix offers low-resistance Flame-Thrower wires designed to deliver a stronger spark. These are best for performance-oriented builds, but some users have reported issues with terminals pulling off the wire.
Pro Tip: When you replace your spark plug wires, it's the perfect time to replace your spark plugs as well. Also, apply a small amount of dielectric grease to the inside of each boot before installation. This protects the connection from moisture and makes future removal much easier.
Cost of Replacing GMC Sierra Spark Plug Wires
| Item | Estimated Cost |
|---|---|
| New Aftermarket Wire Set | $55 - $166 |
| Shop Labor | $100 - $200 |
| DIY Cost (Part Only) | $55 - $166 |
| Professional Replacement | $155 - $366 |
Frequently Asked Questions
Does my 2015 Sierra with the 5.3L V8 use these spark plug wires?
No. The 5.3L V8, along with the 4.8L and 6.2L, uses a coil-on-plug ignition system. Each ignition coil connects to the spark plug with a short boot, not a long wire. This guide is only for the 4.3L V6 and 6.0L V8 engines.
🎬 See this step-by-step guide for 6.0L engine wire replacementCan I replace just one bad wire?
While you can, it is not recommended. Spark plug wires degrade at a similar rate. If one has failed, the others are likely not far behind. They are sold in complete sets for this reason.
Are performance wires worth it on a stock engine?
For a stock 4.3L V6 or 6.0L V8, a quality OE-style replacement set from a brand like Denso or Standard is perfectly adequate. Performance wires like Edelbrock may offer slightly better durability due to thicker jackets and better heat shielding, but they won't create a noticeable power gain on their own.
How difficult is it to replace the wires myself?
This is a great DIY job for beginners. The difficulty is low, requiring no special tools. The key is to replace one wire at a time to avoid mixing up the firing order. The entire job can usually be done in under an hour.
🎬 Watch: A quick walkthrough for replacing your wire setHelpful Videos
Technical Specifications
OEM Part Numbers: 19351594 9748UU 12192195

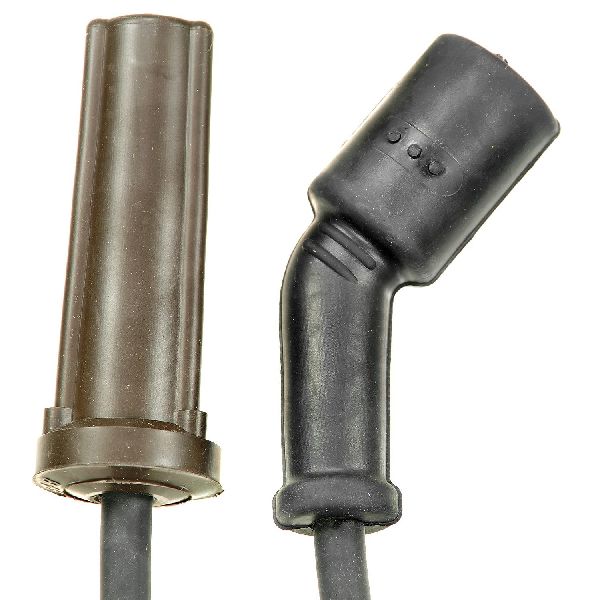

Application-specific wire set for GM 4.3L V6 and 6.0L V8 engines. Includes pre-terminated wires with boots for both coil and spark plug ends.
