Guide to the 2007-2018 Lexus ES350 Electric Fuel Pump
Everything an owner needs to know about replacing a failing fuel pump and choosing the right aftermarket part.
- A major recall for faulty fuel pumps affects the 2018 ES350 model year; check your VIN on the NHTSA website.
- Common failure symptoms include engine sputtering, difficulty starting, a whining noise from the rear, and stalling.
- Denso is the OEM supplier; choosing a Denso aftermarket pump provides OEM quality at a lower cost.
- Replacing the entire fuel pump assembly is recommended over just the motor for a more reliable, long-term repair.
Is Your Lexus ES350 Fuel Pump Failing?
A failing fuel pump rarely just stops working without warning. Usually, it gives you signs that it's getting weak. Paying attention to these symptoms can prevent you from being stranded.
🎬 Watch: A visual guide to common fuel pump failure symptoms.Common signs include:
- Engine Sputtering or Hesitation: The car may stutter or lose power when you accelerate, especially at highway speeds. This happens because the pump can't supply the extra fuel the engine demands.
- Difficulty Starting: The engine may take longer than usual to start. This is often because a weak pump can't build up enough pressure in the fuel lines when the car is off.
- Whining Noise from the Rear Seat: A high-pitched humming or whining sound from the fuel tank area is a classic sign of a struggling fuel pump motor.
- Sudden Engine Stalling: The most dangerous symptom is the engine shutting off while driving. This can happen if the pump fails completely, even for a moment.
- Check Engine Light: A failing pump can trigger diagnostic trouble codes like P0087 (Fuel Rail/System Pressure - Too Low), which will illuminate your check engine light. 🎬 See how a pro mechanic diagnoses a failing fuel pump.
Important Recall Information
Toyota issued a major safety recall (NHTSA Campaign ID: 20V012000, with expansions) for defective Denso fuel pumps that could fail and cause the engine to stall while driving. This recall specifically includes the 2018 Lexus ES350. The issue was with the pump's impeller, which could deform and stop working. While earlier models in the 2007-2017 range are not part of this specific recall, it's crucial for 2018 owners to check if their vehicle has been serviced. You can check your vehicle's VIN on the NHTSA website.
Choosing the Right Aftermarket Fuel Pump
When replacing the fuel pump on your ES350, you have several options outside of the expensive dealership part. The key is to balance cost and quality. For a critical component like this, choosing a reliable brand is important.
Here’s a breakdown of common aftermarket brands:

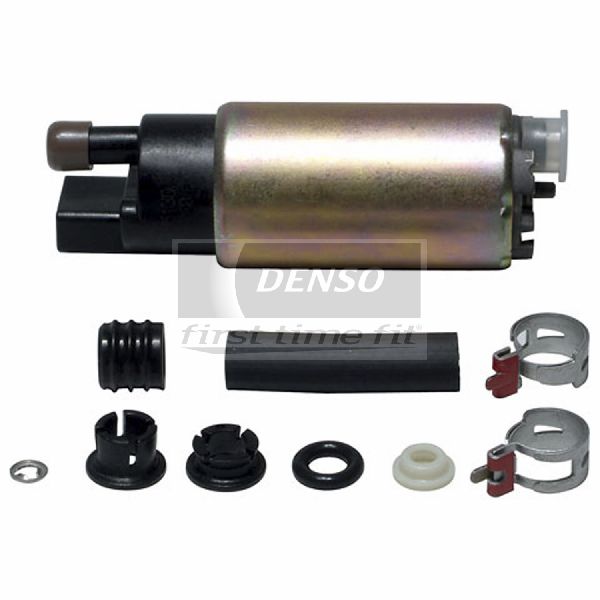

- Tier 1: OEM Equivalent (Denso): Denso is the original equipment manufacturer (OEM) for many Toyota and Lexus parts, including the fuel pump. Choosing a Denso-branded aftermarket pump is essentially getting the same quality as the dealer part without the Lexus box and price tag. For reliability, this is the top choice.

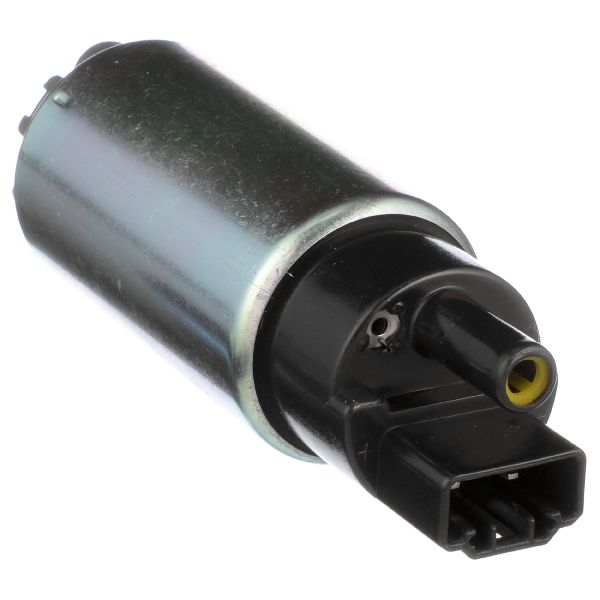

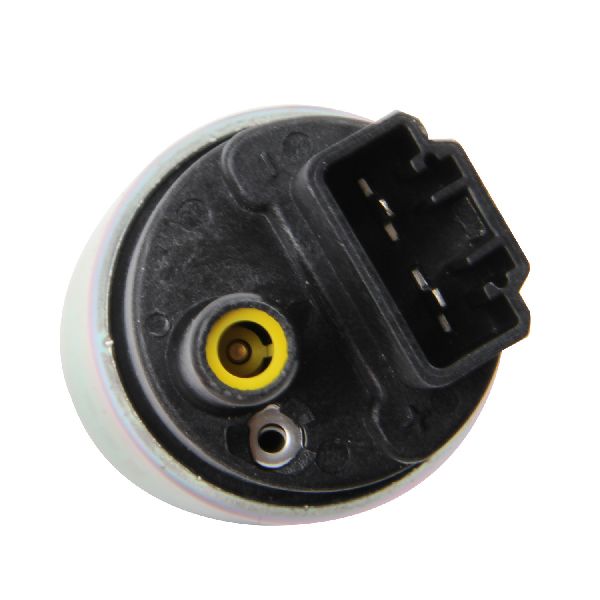

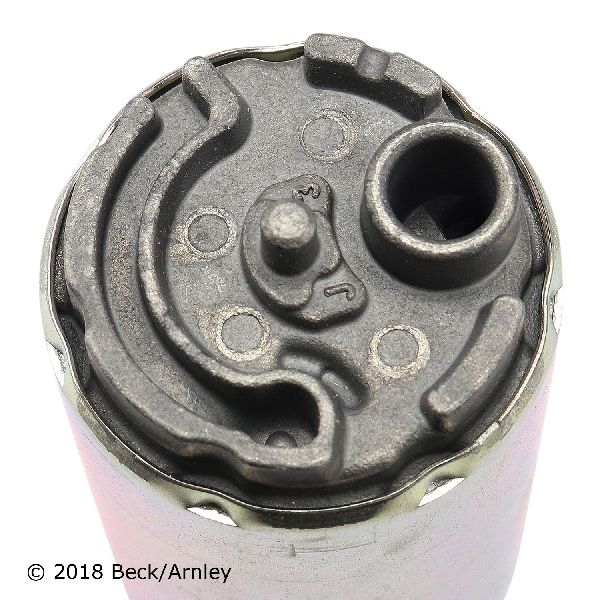

- Tier 2: Quality Aftermarket (Delphi, Beck Arnley): Brands like Delphi and Beck Arnley are well-regarded in the aftermarket world. They engineer parts to meet or exceed OEM specifications and offer a good balance of quality and price. Beck Arnley often sources parts from OEM suppliers, so you might even get a Denso pump in their box.

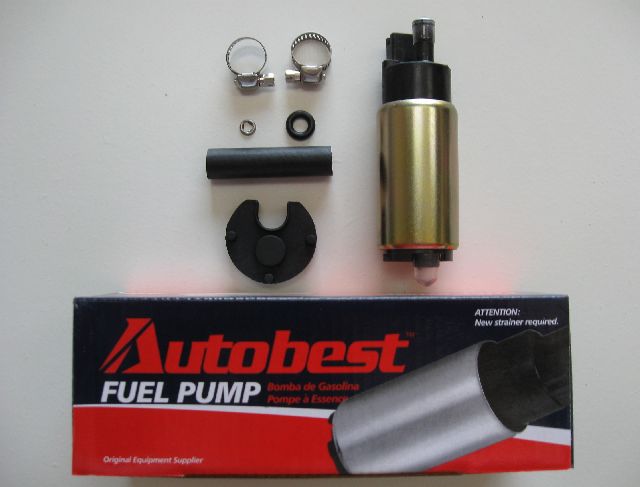

- Tier 3: Budget-Friendly (GMB, AutoBest): These brands offer a more affordable solution. GMB states their pumps are designed to meet OE form, fit, and function, using quality materials. While they can be a good value, their long-term durability may not match that of the premium brands. These are best if you're on a tight budget, but for a component that requires significant labor to replace, investing in a higher-tier brand is often recommended.
Pro Tip: Replace the Whole Assembly
The fuel pump is part of a larger module that includes the fuel level sender, pressure regulator, and filter sock. While you can sometimes replace just the pump motor, it's highly recommended to replace the entire fuel pump assembly. This ensures all related components are new and reduces the chance of having to do the job again if another part of the old assembly fails.
Estimated Replacement Costs
The cost to replace a fuel pump varies based on the parts you choose and who does the work. The pump is located in the fuel tank, accessed by removing the rear seat cushion.
🎬 Watch this step-by-step walkthrough of the fuel pump replacement process.| Item | Estimated Cost |
|---|---|
| New OEM Fuel Pump Assembly | $1200 - $1500+ |
| New Aftermarket Fuel Pump Assembly | $35 - $187 |
| Shop Labor | $115 - $200 |
| Total (Aftermarket Part + Shop Labor) | $150 - $387 |
Frequently Asked Questions
Is Denso the same as the Lexus OEM part?
Yes, Denso is the original manufacturer for the fuel pump in your Lexus. An aftermarket Denso pump is considered an OEM-equivalent part, offering the same performance and reliability as the part from the Lexus dealer.
Can I replace just the fuel pump motor or do I need the whole assembly?
You can often buy just the motor, but it's strongly recommended to replace the entire assembly. The assembly includes the fuel strainer (sock), fuel level sensor, and housing, which can wear out or become brittle. Replacing the complete unit is a more reliable, long-term repair.
How difficult is it to replace the fuel pump myself?
This job is moderately difficult and can be done by a skilled DIYer. It involves removing the rear seat, opening the fuel tank access panel, and safely disconnecting fuel lines. The main challenges are working with gasoline (which is a fire hazard) and carefully handling the assembly to avoid damaging the fuel level float. If you are not comfortable with these steps, it is best left to a professional mechanic.
Do I need to replace the fuel filter at the same time?
The main fuel filter sock (strainer) is part of the fuel pump assembly and will be replaced with it. Your ES350 does not have a separate, easily serviceable fuel filter like older cars; it's integrated into the in-tank assembly.
My 2018 ES350 was part of the recall. Do I still need to worry?
If the recall work was performed by a Lexus dealer, they would have installed an improved fuel pump assembly, and you should not have to worry. If you are unsure, you can check your vehicle's service history with a Lexus dealer or verify the recall status on the NHTSA website using your VIN.
Helpful Videos
Technical Specifications
OEM Part Numbers: 77020-33210
The electric fuel pump is an in-tank design, located under the rear passenger-side seat. It is sold as a complete module including the pump, fuel level sending unit, and filter/strainer.
