A/C Compressor Guide for the 2007-2018 Mercedes-Benz CLS550
Keep your CLS550's cabin cool by understanding A/C compressor failure and choosing the right replacement part.
- A failing compressor can contaminate the entire A/C system with metal debris; always replace the receiver/drier and flush the system when installing a new compressor.
- OEM-quality aftermarket brands like Denso and Valeo often provide the same performance as genuine Mercedes parts at a lower cost.
- Symptoms include warm air, grinding or squealing noises, and the A/C only working while the car is moving at speed.
- This is not a simple DIY job. It requires specialized equipment for handling refrigerant and should typically be performed by a qualified mechanic.
Is Your CLS550's A/C Blowing Warm Air?
A failing A/C compressor is a common issue that can leave you without cold air, especially during hot weather. If you're noticing that the air from your vents isn't as cold as it used to be, or if you hear strange noises when you turn on the A/C, your compressor might be the culprit. For the 2007-2018 Mercedes-Benz CLS550, which spans two generations (C219 and C218), the A/C compressor is a vital but wearable component.
Symptoms of a Failing A/C Compressor
Watch out for these common signs of A/C compressor trouble in your CLS550:
- Warm Air from Vents: This is the most obvious symptom. Even with the A/C on full blast, the air is room temperature or warm. This can happen if the compressor is not pressurizing the refrigerant.
- Strange Noises: Grinding, squealing, or rattling sounds when the A/C is turned on often point to a failing compressor clutch or internal bearing failure.
- A/C Works at Speed, Fails at Idle: If your A/C gets cold while driving but blows warm at a stoplight, it can be a sign of a weak compressor, low refrigerant, or poor airflow over the condenser.
- Compressor Clutch Not Engaging: On models with a clutch, you should hear a 'click' when the A/C is turned on as the clutch engages. If it doesn't engage, the compressor won't run. 🎬 Watch: How to diagnose why your compressor clutch isn't engaging. Many later model CLS550s use a clutchless, variable compressor, so this may not apply.
- Visible Leaks: The compressor contains oil. If you see oily residue on the compressor body, it could indicate failing seals.
Important: "Black Death"
When an A/C compressor fails internally, it can send metal shavings and debris throughout the entire A/C system. This contamination, sometimes called "black death," can clog other expensive components like the condenser, expansion valve, and evaporator. A proper repair requires replacing the receiver/drier (or desiccant bag) and thoroughly flushing the system to remove all debris before installing a new compressor. Skipping this step will cause your new compressor to fail very quickly.
Choosing the Right Aftermarket A/C Compressor
When replacing the A/C compressor on your CLS550, you have several options. While a new OEM part from Mercedes-Benz offers a guaranteed fit, high-quality aftermarket parts can provide excellent performance and value. Many aftermarket brands are the original equipment suppliers to automakers.
Brand Quality Tiers for Your Mercedes-Benz
- OEM-Quality Aftermarket (Denso, Valeo, Mahle): Denso and Valeo are well-known OEM suppliers for many car brands, including Mercedes-Benz. Choosing one of these brands often means you are getting the same quality as the original part without the dealership price tag. Mahle is another highly-regarded German brand known for quality components. These are your best bet for longevity and performance that matches the factory part.
- Premium Aftermarket (Bosch, Nissens): Bosch is a major name in German auto parts, offering high-quality components that meet or exceed OE specifications. Nissens is another respected brand that manufactures compressors to OE standards and often includes necessary O-rings and installation guides.
- Standard Aftermarket (Four Seasons, Global Parts): These brands offer a more budget-friendly solution. While they can be a good value, some professional mechanics report mixed experiences with longevity compared to premium brands. If you are on a tight budget, they are a viable option, but be aware of the potential quality trade-off.
Pro Tip: Check the Part Number
Before ordering, it's always a good idea to find the part number on your original compressor. This ensures you get an exact match, as there can be variations even within the same model year. The 2007-2011 (C219) and 2012-2018 (C218) generations may use different compressors.
Cost of Replacing a CLS550 A/C Compressor
The cost can vary significantly based on the parts you choose and your local shop's labor rates. A full replacement includes not just the compressor but also a new receiver/drier, a system flush, and fresh refrigerant and oil.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket A/C Compressor | $278 - $821 |
| New OEM A/C Compressor | $900 - $1,600+ |
| Shop Labor & System Recharge | $350 - $700+ |
| Total Estimated Cost (Aftermarket) | $628 - $1,521+ |
| Total Estimated Cost (OEM) | $1,250 - $2,300+ |
Frequently Asked Questions (FAQ)
Can I replace the A/C compressor myself?
This is an advanced DIY job. It requires specialized tools, including a manifold gauge set and a vacuum pump to safely recover the old refrigerant and recharge the system. You also need to access the compressor from underneath the car, which involves removing the engine shield. Due to the need for proper refrigerant handling and the risk of system contamination, this job is best left to a qualified mechanic 🎬 Watch this step-by-step walkthrough of a Mercedes A/C compressor replacement. for most owners.
Do I need to replace other parts with the compressor?
Yes. At a minimum, you must replace the receiver/drier (also called the accumulator or desiccant bag) whenever the system is opened. It is also critical to flush the A/C lines, evaporator, and condenser to remove any debris from the old compressor failure. Failure to do so will void the warranty on the new compressor and cause it to fail prematurely.
My A/C is just low on refrigerant. Can't I just top it off?
Your A/C system is a closed loop; it should not lose refrigerant. If it's low, there is a leak. While a top-off might provide a temporary fix, the refrigerant will leak out again. Running the system low on refrigerant can starve the compressor of lubricating oil, leading to its failure. It's crucial to find and fix the leak first.
🎬 See this video for a simple fix to try first.Are there any recalls for the CLS550 A/C compressor?
As of late 2024, there are no specific recalls for the A/C compressor on the 2007-2018 Mercedes-Benz CLS550. Searches on the NHTSA database show recalls for other issues like sunroof panels, but not the A/C system components themselves for this model range. Always check for the latest information using your vehicle's VIN.

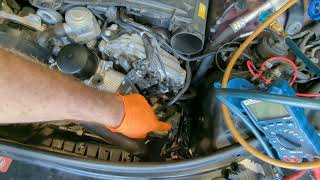

Helpful Videos
Technical Specifications
OEM Part Numbers: 0022309711
The CLS550 uses a variable displacement or clutch-style compressor, depending on the year. The system uses R-134a refrigerant and PAG 46 oil. The compressor type is often a Denso 7SEU17C or similar.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
