Your 2007-2020 GMC Yukon Transfer Case Motor: A Complete Guide
Stuck in two-wheel drive or hearing strange noises when you press the 4WD button? This guide is for you.
- The most common symptom is a "Service 4WD" light and the inability to shift between 2WD and 4WD.
- A recall for 2014-2015 models involved the transfer case shifting to neutral; ensure this recall was performed if applicable.
- Before replacing the motor, check fuses and have the TCCM codes read to confirm the diagnosis.
- Aftermarket motors from brands like Dorman offer significant savings, and replacement is a feasible DIY job for many owners.
Is Your Yukon's 4WD Acting Up? It Might Be the Transfer Case Motor
If your GMC Yukon is having trouble switching between drive modes, the transfer case motor is a common suspect. This component, also called a transfer case shift motor or encoder motor, is responsible for making the mechanical shift into and out of four-wheel drive. When it fails, it can leave you without 4WD when you need it most or cause annoying warning lights on your dash.
Common Symptoms of Failure
Watch for these signs that your transfer case motor is on its way out:
- "Service 4WD" Light: This is the most common indicator. The vehicle's computer has detected a fault in the 4WD system, and the motor is a frequent cause.
- Failure to Shift: You press the button for 4HI or 4LO, and nothing happens. The light on the switch may blink and then go back to 2WD.
- Getting Stuck in a Mode: The motor may successfully shift into 4WD but then be unable to shift back out, leaving you stuck in 4WD even on dry pavement.
- Grinding or Whirring Noises: You may hear a distinct electrical motor or grinding sound from under the vehicle when you attempt to shift modes. This can indicate the motor is trying to work but is failing mechanically.
Known Issues, Recalls, and Bulletins
Recall for 2014-2015 Models: GM issued recall #14192 for some 2014-2015 Yukons. An electrical issue could cause the transfer case to shift into neutral on its own, leading to a loss of power or a potential rollaway when parked. The fix was a software reprogram at the dealer. You can check with a dealer or on the NHTSA website to see if your vehicle was affected and if the recall work was completed.
Technical Service Bulletins (TSBs): GM has released bulletins for related issues. TSB 23-NA-185 provides diagnostic steps for the "Service 4WD" light. 🎬 See how to troubleshoot code C0392 on newer models. Another, TSB 19-NA-136, notes that some noises and shudders can be caused by contaminated transfer case fluid, and a fluid change may be a first step before replacing parts. For 2015 models, a TSB was issued for vehicles getting stuck in 4HI in very cold weather, which required a software update.
Choosing a New Aftermarket Transfer Case Motor
When your transfer case motor fails, you have a choice between Original Equipment Manufacturer (OEM) and aftermarket parts. An OEM part is what the vehicle was built with, while aftermarket parts are made by other companies.
- OEM: The quality is known, but the cost is significantly higher. A new OEM motor from the dealer can cost over $450.
- Aftermarket: These parts offer huge cost savings and are widely available. Brands like Dorman, Standard Ignition, and others provide direct-fit replacements. While many owners have good experiences with aftermarket motors, some reviews mention a shorter lifespan compared to the original part. For the price difference, many owners find the value of aftermarket parts to be worth it, especially on an older vehicle.
Pro Tip: Before replacing the motor, check the simple things first. Ensure the 4WD fuse is good and check the electrical connector on the motor for corrosion or damage. Sometimes a bad ground connection can mimic the symptoms of a failed motor.
| Part Type | Estimated Part Cost | Notes |
|---|---|---|
| New Aftermarket | $193 - $450 | Brands like Dorman, Standard Ignition, etc. Good value. |
| New OEM | $470 - $570+ | Highest cost, purchased from a GMC/Chevy dealer. |
| Shop Labor | $90 - $130 | Typically 1-1.5 hours of work. |
Frequently Asked Questions
Can I replace the transfer case motor myself?
Yes, this is a DIY-friendly job for someone with basic mechanical skills and tools. The motor is typically held on by three or four bolts and has one electrical connection. It's located on the outside of the transfer case, so no major disassembly is required. The main challenge can be aligning the new motor with the transfer case's internal shift lever.
🎬 Watch this step-by-step shift motor replacement walkthrough.What's the difference between a transfer case motor and an encoder motor?
They are often the same thing. The component includes both the electric motor that provides the force and an electronic sensor (the encoder) that tells the vehicle's computer what position the transfer case is in. This is why it's often called an "encoder motor." In some cases, only the sensor fails, but it is usually replaced as a complete motor assembly.
My "Service 4WD" light is on. Do I have to replace the motor?
Not necessarily. The light can be triggered by a bad dash selector switch, a wiring issue, a software glitch, or a problem with the Transfer Case Control Module (TCCM). Getting the codes scanned with a tool that can read the TCCM is the best way to diagnose the problem before buying parts.
🎬 Watch this diagnostic guide for the Service 4WD message.Can I drive my Yukon with a bad transfer case motor?
Yes, but with caution. The vehicle will be stuck in whatever mode it was in when the motor failed (usually 2WD). This means you won't have 4WD capability. If it's stuck in 4WD, you should avoid driving on dry, high-traction surfaces like pavement, as this can cause damage to the drivetrain. It's best to get the issue repaired to ensure safety and prevent further damage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12474401 84718571 19210807

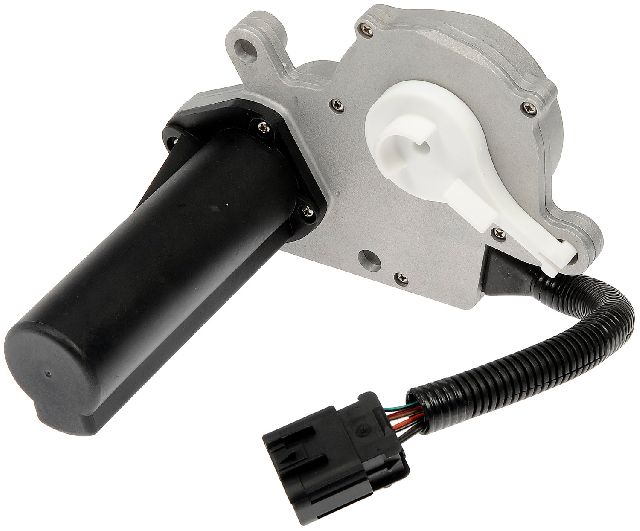

This is an electronically controlled motor that mounts to the exterior of the transfer case. It includes an internal position sensor (encoder) to communicate the shift fork position to the Transfer Case Control Module (TCCM). It uses a factory-style electrical connector for power and data.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
