Chevrolet Equinox Throttle Body Guide: Symptoms and Replacement (2007-2022)
If your Equinox is showing a 'Reduced Engine Power' message, a faulty throttle body is the most likely cause.
- The 'Reduced Engine Power' message is the number one sign of a failed throttle body in an Equinox.
- For 2008-2009 models, check for GM Special Coverage #14582, though it has likely expired.
- Replacement is a DIY-friendly job for many owners, typically taking less than an hour.
- A throttle 'relearn' procedure is required after installation to prevent high or rough idle.
Understanding Throttle Body Failure in Your Equinox
A failing throttle body is one of the most common issues for the Chevrolet Equinox, especially for the second generation (2010-2017) equipped with the 2.4L engine. The most telling sign of a problem is the "Reduced Engine Power" message appearing on your dashboard. This is a built-in safety feature, often called 'limp mode,' that the vehicle's computer activates when it detects a serious fault in the throttle system. It severely limits acceleration to prevent potential engine damage and allow you to get to a safe location.
Special Coverage for Older Models
GM issued Special Coverage Adjustment #14582 for certain 2008-2009 Chevrolet Equinox models due to issues with the throttle position sensor causing reduced engine power. This extended the warranty for this specific problem to 10 years or 120,000 miles from the original service date. While this coverage has likely expired for most vehicles, it highlights the known history of this issue. Always check with a GM dealer using your VIN to see if any special coverages apply to your vehicle.
Common Symptoms of a Failing Throttle Body
Besides the "Reduced Engine Power" light, you might experience other symptoms that point to a bad throttle body:
- Rough or Unstable Idle: The engine may idle too high, too low, or fluctuate unpredictably.
- Poor Acceleration: The vehicle may feel sluggish, hesitate, or jerk when you press the gas pedal.
- Stalling: The engine may stall, especially when coming to a stop or at low speeds.
- Check Engine Light: The failure will trigger diagnostic trouble codes (DTCs) and illuminate the check engine light. Common codes include P2135, P0121, and P0221.
- Decreased Fuel Economy: An incorrect air-fuel mixture caused by a faulty throttle body can lead to your Equinox using more fuel.
Choosing the Right Aftermarket Throttle Body
When replacing your Equinox's throttle body, you have several options. Since the throttle position sensor is integrated, the entire assembly is typically replaced.
| Brand Tier | Brands | Notes |
|---|---|---|
| OEM / Premium Aftermarket | ACDelco, Hitachi | ACDelco is the original equipment manufacturer for GM. Choosing ACDelco ensures a direct, factory-quality replacement. Hitachi is also a well-regarded OEM supplier for many electronic components. These are your most reliable, but also most expensive, options. |
| Quality Aftermarket | Dorman, Standard Ignition (SMP) | Dorman is a popular aftermarket brand known for sometimes re-engineering parts to fix original design flaws. Standard Ignition is another trusted name in automotive electronics, offering a balance of quality and value. These brands are a solid choice for a reliable repair without the OEM price tag. |
| Standard / Budget Aftermarket | Cardone, Global Parts | These brands offer a more budget-friendly solution. Cardone often provides remanufactured parts, but new options are also available. While functional, they may not have the same longevity or rigorous quality control as premium brands. They can be a good option if budget is the primary concern. |
Pro Tip: Clean or Replace?
Sometimes, symptoms like a rough idle can be caused by carbon buildup around the throttle plate, which can be resolved by cleaning the throttle body. However, if you are experiencing the "Reduced Engine Power" message, it almost always indicates an internal electronic failure of the throttle position sensor, which requires a full replacement of the unit.
Frequently Asked Questions (FAQ)
Do I need to perform a 'relearn' procedure after replacement?
Yes. After installing a new throttle body, a relearn procedure is necessary so the engine's computer (ECM) can learn the new throttle plate's position. Without this, you may experience a high or erratic idle. This can often be done without a scan tool by following a specific sequence of turning the ignition on and off and letting the engine idle.
Is this a difficult part to replace myself?
For most Equinox models, especially the 2.4L, the throttle body is very accessible on top of the engine. The replacement involves removing the air intake duct, unplugging one electrical connector, and removing four bolts. It is considered a DIY-friendly repair for those with basic mechanical skills.
What is the most common engine with this problem?
While throttle body issues can occur on any engine, they are particularly well-documented on the 2.4L 4-cylinder engine used in the 2010-2017 Equinox. The 3.0L and 3.6L V6 engines and the later 1.5L Turbo engines can also experience these failures.
Why did my traction control light come on with the check engine light?
The throttle control system is linked to the traction control and stability control systems. When the ECM detects a fault with the throttle body, it will often disable these systems as a precaution because it cannot accurately control engine torque. This is normal and should resolve when the throttle body is replaced.

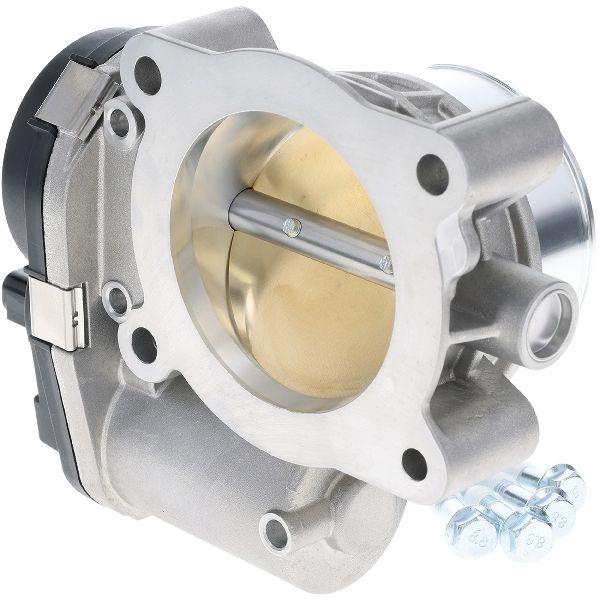

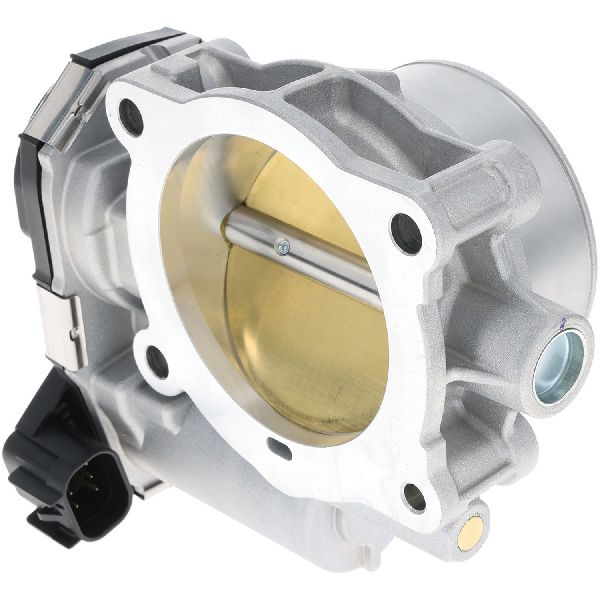

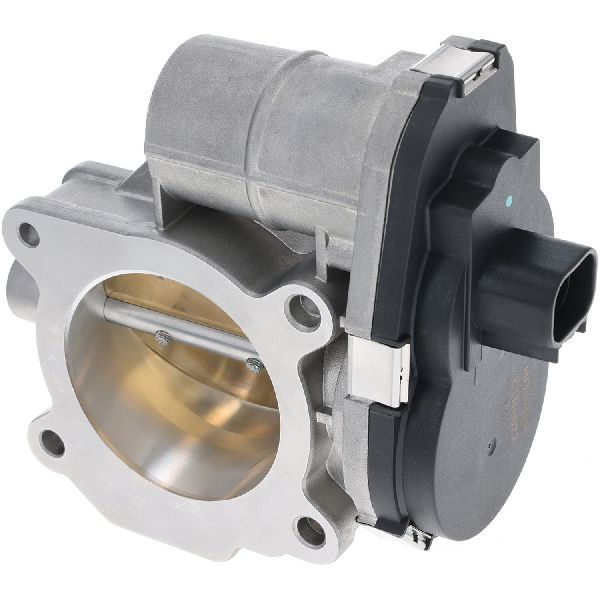

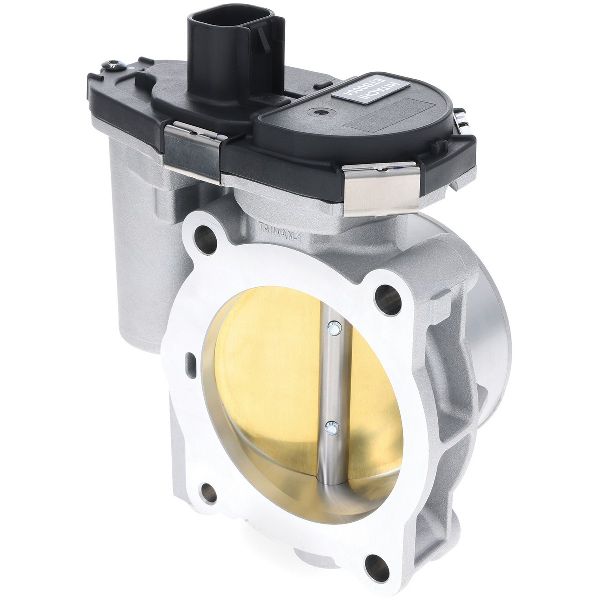

Technical Specifications
OEM Part Numbers: 12671379 12670834 12632101 12615516 12616994 12679524
The throttle body for the Chevrolet Equinox is an electronically controlled unit that includes an integrated, non-serviceable throttle position sensor. Part numbers and bore diameters vary significantly based on the engine (e.g., 2.4L I4, 3.0L V6, 3.6L V6, 1.5L Turbo). Always verify the correct part number for your specific year and engine combination.
