Ford Expedition (2007-2022) Disc Brake Caliper Replacement Guide
A sticking or seized brake caliper is a common and serious issue on the Ford Expedition; here’s what you need to know before you buy a replacement.
- A sticking or seized caliper is the most common failure mode for 2007-2022 Expeditions.
- Always replace calipers in pairs (both front or both rear) to ensure even braking performance.
- Consider replacing the flexible brake hoses at the same time, as an internal collapse can mimic a seized caliper.
- For longevity in rust-prone climates, choose an aftermarket caliper with a protective coating.
Is Your Expedition's Brake Caliper Failing?
Brake calipers on the 2007-2022 Ford Expedition are built to be durable, but they work under high heat and pressure. Over many miles, seals can wear out, pistons can get stuck, and slide pins can rust and seize. The most common failure on these trucks is a sticking or seized caliper, which can lead to several dangerous braking problems.
🎬 Watch: How to diagnose and repair a sticking brake caliperKey Failure Symptoms
- Vehicle Pulling to One Side: When you brake, the truck might pull to the left or right. This happens when one caliper is applying more or less force than the other.
- Brake Dragging or Sticking: You might feel the truck is being held back, even when your foot is off the brake. This is a classic sign of a caliper that isn't releasing its grip on the rotor.
- Burning Smell & Excessive Heat: A seized caliper generates extreme heat at the affected wheel. After a drive, you might notice a strong, acrid burning smell and see heat shimmering from the wheel.
- Uneven Brake Pad Wear: A tell-tale sign of a sticking caliper is when one brake pad (either inner or outer) on a wheel is worn down much faster than the other.
- Spongy or Soft Brake Pedal: If a caliper seal fails and leaks brake fluid, air can get into the system. This will make the brake pedal feel soft, spongy, or go closer to the floor.
Known Issue: Collapsed Brake Hoses
On Ford Expeditions, especially older models, a flexible rubber brake hose can collapse internally. This can trap brake fluid pressure, preventing the caliper from releasing. The symptoms are identical to a seized caliper. If you replace a caliper and the problem persists, the brake hose is the likely culprit. 🎬 See this walkthrough on replacing front brake hoses It's often a good idea to replace the hoses when you replace the calipers, especially on higher-mileage vehicles.
Choosing the Right Aftermarket Caliper
When you shop for a new aftermarket caliper, you'll see different brands and types. Since this is a critical safety part, it's important to choose a quality replacement. Aftermarket calipers are sold as 'unloaded' (caliper only) or 'loaded' (with new pads and hardware included).
Brand Quality Tiers
- Premium Aftermarket (OEM-Equivalent): Brands like Motorcraft, Powerstop, and Raybestos (Element3 line) are considered top-tier. Motorcraft is Ford's own brand, guaranteeing a perfect fit and original performance. Powerstop is very popular with truck owners, often including performance-oriented features and coatings. Raybestos and Centric are well-respected brands known for meeting or exceeding OEM standards and are trusted by professional mechanics.
- Standard Aftermarket: Brands like Cardone and Dynamic Friction offer a good balance of quality and value for daily driving. They are reliable replacements that get the job done without the higher cost of premium brands. Some forum users note that NAPA-branded calipers are often rebranded Cardone parts.
- Remanufactured vs. New: Many available calipers are remanufactured (rebuilt). While this is a cost-effective option, quality can sometimes be inconsistent. Always inspect a remanufactured part for quality before installation. A new aftermarket caliper from a reputable brand is often the safer bet.
Pro Tip: Coated Calipers for Rust Prevention
If you live in an area with snow and road salt, choose calipers with a protective coating (often powder-coated or zinc-plated). This coating helps prevent rust and corrosion, which is a primary cause of seized slide pins and pistons.
| Part Type | Estimated Cost (Single Caliper) |
|---|---|
| New OEM (Motorcraft) | $180 - $300+ |
| New Aftermarket | $44 - $232 |
| Remanufactured Aftermarket | $40 - $120 (plus core charge) |
| Shop Labor (per side) | $146 - $252 |
Note: Costs are estimates and vary by location, vehicle year, and specific product. The aftermarket price range reflects our inventory.
Frequently Asked Questions
Should I replace brake calipers in pairs?
Yes, it is highly recommended to replace calipers in pairs on the same axle (both front or both rear). A new caliper will respond differently than an old, worn one, which can cause uneven braking and make the vehicle pull to one side.
What's the difference between a 'loaded' and 'unloaded' caliper?
A 'loaded' caliper comes pre-assembled with new brake pads and all the necessary mounting hardware (clips, pins). This is often easier and faster for a DIY installation. 🎬 Watch: Step-by-step guide to replacing front brake calipers An 'unloaded' or 'semi-loaded' caliper is just the caliper body, sometimes with the mounting bracket. If your pads and hardware are in good shape, you could use an unloaded caliper to save money.
What does a 'phenolic' vs. 'steel' piston mean?
Phenolic pistons are made from a composite resin and are lighter and better at insulating against heat transfer to the brake fluid. Steel pistons are stronger and more durable but can transfer more heat. Both are common and function well for the Expedition's daily driving and towing needs.
Did my Expedition have a brake caliper recall?
There have not been widespread recalls specifically for faulty brake calipers on the 2007-2022 Expedition. However, a recall (NHTSA 25V-314) was issued for some 2022-2024 models for a brake *line* that could be damaged during assembly, leading to a fluid leak. This is not a caliper failure, but it's a critical safety issue for owners of affected years to be aware of.
Helpful Videos
Technical Specifications

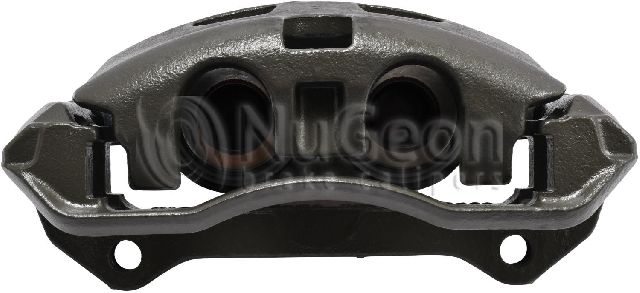

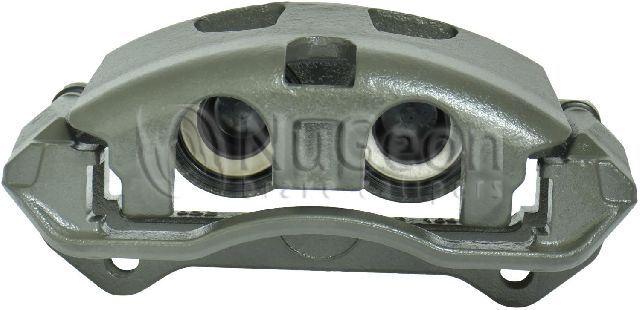

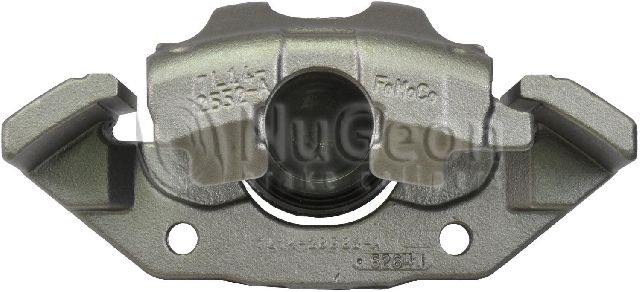

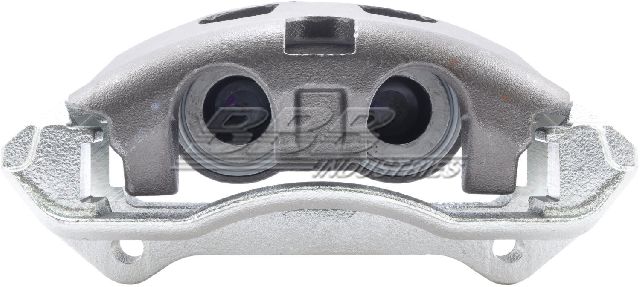

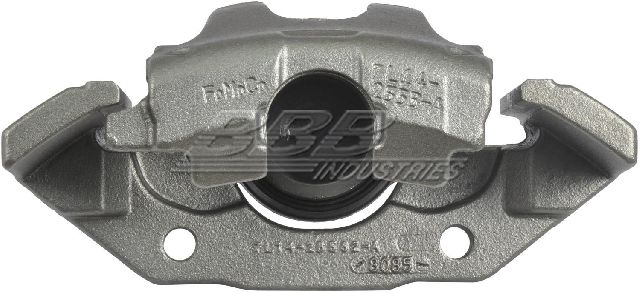

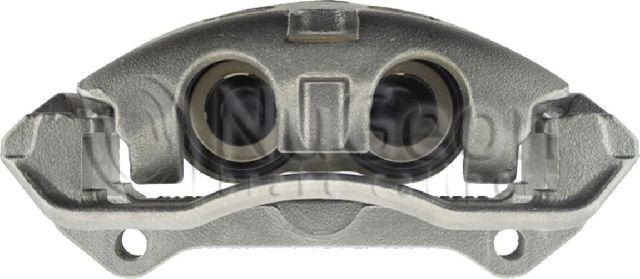

Caliper configurations vary by year and drivetrain (2WD/4WD). Most models use a dual-piston floating caliper for the front axle and a single-piston floating caliper for the rear. Piston material can be steel or phenolic. Always verify the correct part for your specific year, model, and position (front/rear, left/right).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
