A Guide to the Engine Water Pump for the 2007-2023 Hyundai Sonata
Keep your Sonata's engine from overheating by understanding when and how to replace a failing water pump.
- Address symptoms like leaks, noise, or overheating immediately to prevent catastrophic engine damage.
- Invest in a quality aftermarket brand like Gates or GMB, as the labor cost to replace a cheap, failed pump will be much higher than the initial savings.
- The replacement procedure varies significantly between 4-cylinder, V6, and Hybrid engines; know which one you have.
- Always bleed the cooling system thoroughly after replacement to remove air pockets and prevent overheating.
Is Your Hyundai Sonata Water Pump Failing?
A failing water pump is a serious issue that can leave you stranded and facing major engine repairs. On most 2007-2023 Hyundai Sonata models with gasoline engines, the water pump is a mechanical device driven by the engine's serpentine belt. Hybrid models use a more complex electronic water pump (EWP). Recognizing the warning signs early can save you from a much bigger headache.
Key Failure Symptoms
- Coolant Leaks: This is the most common sign. You may see puddles of green or pinkish fluid under the front of your car. Leaks often start small at the pump's "weep hole" or from a failing gasket, leaving a trail of dried coolant residue.
- Engine Overheating: If the temperature gauge on your dashboard climbs into the red zone, the pump may not be circulating coolant effectively. You might also see steam coming from the engine bay. This is a critical warning to stop driving immediately.
- Whining or Grinding Noises: A high-pitched whine or a low-pitched grinding sound coming from the front of the engine can indicate a failing bearing inside the water pump. The noise often changes with engine speed.
- Warning Lights: While a bad mechanical pump won't always trigger a specific check engine light, the resulting overheating can cause a P0217 code (Engine Overheat Condition). On Sonata Hybrid models, a faulty electric water pump can trigger a "Check Hybrid System" warning and a specific trouble code, P2600.
Engine Differences Are Critical
The water pump replacement job varies greatly depending on your Sonata's engine.
• 4-Cylinder (2.4L, 2.0T): The pump is driven by the serpentine belt and is more accessible, making it a feasible DIY project for those with some experience.
• V6 (3.3L, 2007-2010): This is a more involved job that may require supporting the engine and removing a motor mount to gain access.
• Hybrid Models: These use an Engine Electric Water Pump (EWP). Replacement is complex and may require special diagnostic tools or even dealer programming. A TSB was issued for 2016-2019 hybrid models for EWP failure.
Choosing the Right Aftermarket Water Pump
When shopping for a replacement, you'll find a wide range of brands and prices. While saving money is tempting, a water pump is a critical component where quality matters. The labor to replace it is often more expensive than the part itself, so choosing a reliable pump can prevent you from doing the job twice.
Aftermarket Brand Tiers
- Tier 1: Premium / OE-Equivalent (Gates, GMB, Beck Arnley): These brands are often trusted by mechanics and may even be the original equipment manufacturer (OEM) for Hyundai. They are designed to meet or exceed original specifications for fit and performance, offering the best reliability.
- Tier 2: Quality Aftermarket (Dayco, ACDelco): These are reputable brands that offer a good balance of quality and cost. They are a solid choice for daily drivers where reliability is important but budget is also a consideration.
- Tier 3: Value Brands (US Motor Works, various store brands): These pumps are the most affordable but may have a shorter service life. Some reports indicate cheaper pumps can fail prematurely, sometimes lasting only 30,000 miles or even leaking shortly after installation. They are best suited for situations where budget is the primary concern.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $150 - $420 |
| New Aftermarket Part | $48 - $304 |
| Shop Labor | $292 - $428+ |
| Total Professional Replacement | $375 - $1,053+ |
Pro Tip: When replacing the water pump, it's a good idea to also replace the serpentine belt, tensioner, and thermostat. These parts are often removed during the job anyway, and replacing them at the same time saves on future labor costs. Always use a new gasket and bleed the cooling system properly after installation to remove air pockets.
Frequently Asked Questions
When should I replace my Sonata's water pump?
Most water pumps are designed to last between 60,000 and 100,000 miles. However, you should replace it immediately if you notice any signs of failure like leaks, noise, or overheating. For some engines, it is recommended to replace the water pump as preventative maintenance whenever the timing belt is changed.
Is an OEM Hyundai water pump better than aftermarket?
OEM pumps guarantee a perfect fit and are a reliable benchmark. However, premium aftermarket brands like GMB, Gates, or Aisin often manufacture the OEM parts and offer the same quality at a lower price. It is generally advised to avoid the cheapest economy brands for this part, as premature failure can lead to much higher costs in the long run.
Can I replace the water pump myself?
For 4-cylinder models, a DIY replacement is possible for an experienced home mechanic. The process involves draining the coolant, removing the serpentine belt, and unbolting the pump. For V6 models, the job is more difficult due to tight access. For hybrid models with an electric water pump, professional service is highly recommended due to the complexity.
What is the most common mistake when replacing a water pump?
The most common and costly mistake is not bleeding the cooling system properly after the new pump is installed. Air pockets trapped in the engine can prevent coolant from circulating, leading to immediate overheating and potentially causing severe engine damage like a blown head gasket.

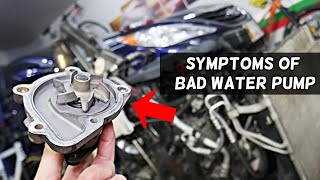

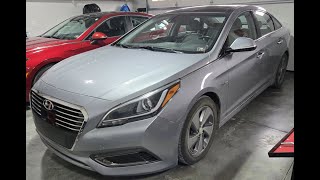

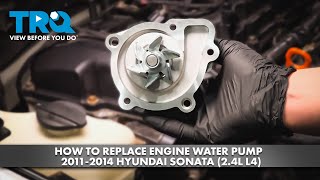

Helpful Videos
Technical Specifications
OEM Part Numbers: 25100-2G800 25100-2E272 25100-2G510
Most non-hybrid models use a mechanical, serpentine belt-driven water pump with a cast aluminum or iron housing and a metal impeller. Hybrid models use an electronically controlled pump. Gaskets are typically metal or composite with a rubber seal.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
