Ford Edge A/C Receiver Drier and Desiccant Element Guide (2007-2024)
If your Ford Edge's A/C is struggling, the problem might be this small but essential filter in the system.
- The A/C receiver drier (desiccant bag) is a critical filter that protects your A/C system from moisture and debris.
- It MUST be replaced whenever the A/C system is opened for major repairs, like a compressor or condenser replacement, to prevent damage and warranty denial.
- Replacement is not a DIY job as it requires professional refrigerant evacuation and recharging equipment.
- Symptoms of failure include poor cooling, musty smells from the vents, and rattling noises.
Is Your Ford Edge A/C Blowing Warm?
When your Edge's air conditioning doesn't cool like it used to, many drivers assume it just needs a refrigerant recharge. While that can be true, a weak A/C is also a classic sign of a failing A/C receiver drier. This component is a service part, meaning it has a limited lifespan and is designed to be replaced. Ignoring it can lead to more expensive repairs down the road.
Symptoms of a Bad A/C Desiccant Element
A failing receiver drier can cause several problems. Look out for these common symptoms:

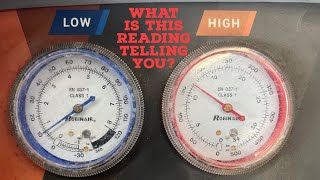

🎬 Watch: See how a failing system behaves in this Edge.- Weak or No Cold Air: This is the most common sign. The desiccant material can break down and clog the system, restricting the flow of refrigerant. When refrigerant can't circulate properly, it can't remove heat from the cabin.
- Moldy or Musty Smell: The drier's job is to absorb water. When it becomes saturated, it can't absorb any more. This moisture allows mold and mildew to grow inside your A/C system, causing a foul smell to come from the vents when you turn on the air.
- Rattling Noises: If the desiccant bag ruptures or internal parts of the drier break, you might hear rattling sounds from the engine bay when the A/C is running.
- Visible Refrigerant Leaks: While not as common, the seals on the drier housing can fail, leading to oily residue or drips of refrigerant from the front of the vehicle.
Always Replace When the System is Open
The desiccant material inside the drier starts absorbing moisture from the moment it's exposed to outside air. For this reason, you must replace the receiver drier or desiccant bag any time the A/C system is opened for a major repair, such as replacing the compressor or condenser. Failure to do so will contaminate the new parts and can void their warranty.
Choosing the Right Aftermarket Drier: Aftermarket vs. OEM
For the Ford Edge, the A/C desiccant element is a relatively inexpensive part. The main cost of replacement is the labor. Because replacing it is a difficult job that requires special equipment, choosing a quality part is important to avoid doing the job twice.
- OEM (Motorcraft): OEM parts are the safest bet for fit and quality, but they cost more. Given the labor involved, many mechanics recommend OEM to ensure reliability.

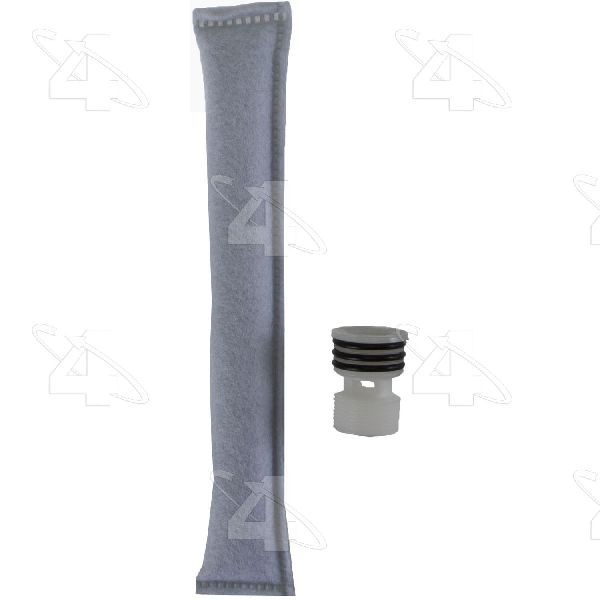

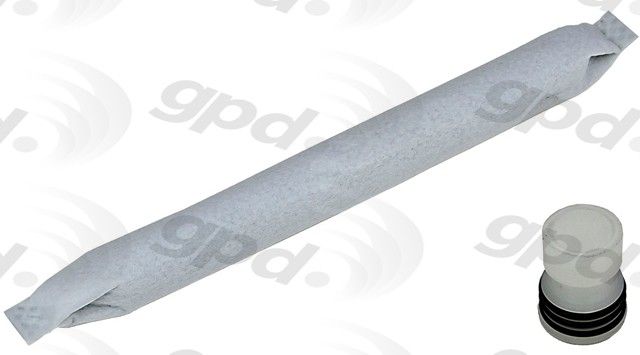

- Aftermarket (Four Seasons, Global Parts): Aftermarket brands offer significant cost savings. Reviews for Four Seasons are mixed; some users have good experiences with their new parts, while others report issues with rebuilt components. There is less feedback available for Global Parts (GPD), but they are a common aftermarket option. For a part like this, a new unit from a reputable aftermarket brand is generally an acceptable choice for budget-conscious repairs.
Cost to Replace the Ford Edge A/C Receiver Drier
The total cost depends on the parts you choose and local labor rates. Note that this job requires recovering the old refrigerant and recharging the system, which is included in the labor estimate.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Desiccant Element | $13 - $22 |
| New OEM (Motorcraft) Drier Assembly | $106 - $130 |
| Shop Labor & A/C Service | $220 - $320 |
| Total Estimated Cost | $233 - $450 |
Common Ford Edge A/C Problems
While troubleshooting, be aware of other common A/C issues on the Edge. Many owners report problems with the blend door actuator, which causes air to blow cold on one side and hot on the other. This is a separate issue from the receiver drier.
Frequently Asked Questions
Do I have to replace the receiver drier when I replace my A/C compressor?
Yes, absolutely. Most compressor warranties require it. A failed compressor often sends debris through the system, which the new drier will catch. More importantly, the desiccant in the old drier is already saturated and cannot protect your new compressor from moisture.
Can I replace the A/C desiccant bag myself?
This is not recommended for a DIY mechanic. The job requires specialized equipment to safely evacuate and recharge the A/C system's refrigerant. It is illegal and harmful to the environment to release refrigerant into the atmosphere. The replacement process itself can also be complex, often requiring removal of the radiator and condenser.

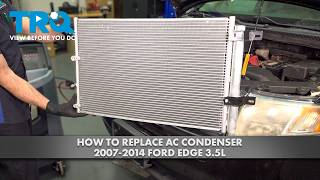

🎬 Watch this walkthrough of the condenser and drier removal process.Are there any recalls on the Ford Edge A/C system?
As of early 2026, there are no specific NHTSA recalls for the A/C receiver drier or desiccant element on 2007-2024 Ford Edge models. Recalls for the Edge have addressed other issues like brake hoses and ABS software.
How long does a receiver drier last?
The lifespan of a receiver drier depends on many factors. In a perfectly sealed system, it could last for many years. However, it should always be considered a maintenance item that needs to be replaced whenever the system is opened for service.
Helpful Videos
Technical Specifications
OEM Part Numbers: 7T4Z-19C836-B (Related Accumulator Part) FT4Z-19E670-A (Related Part, Varies by Year) 7T4Z-19708-B (Condenser Assembly Containing Desiccant)
The part is a desiccant bag that is installed inside the A/C condenser assembly. It is not always sold as a separate OEM part. The base part number is often related to 19E670, but the prefix changes by year range and specific application.
