2008-2009 Ford Taurus X Engine Oil Pressure Switch Replacement Guide
Understand the common oil light issues on your Taurus X and how to choose the right replacement switch.
- A flickering oil light on a Taurus X is very commonly caused by a bad oil pressure switch, not a major engine problem.
- Always check your engine oil level first before assuming the switch is bad.
- This is an inexpensive and easy DIY repair; the switch is located near the oil filter and accessible from underneath.
- Driving with a genuine low oil pressure condition can cause catastrophic engine failure, so do not ignore the warning light.
Is Your Taurus X Oil Light Flickering?
A flickering or constantly lit oil pressure light is the most common sign that your engine oil pressure switch is failing. This is a frequent issue for owners of these vehicles. Often, the problem is just the switch itself and not a more serious lack of oil pressure. You might notice the light flickers at idle and goes away when you start driving. In some cases, the switch can also fail by leaking oil, or it might trigger your Check Engine Light.
Never Ignore the Oil Light

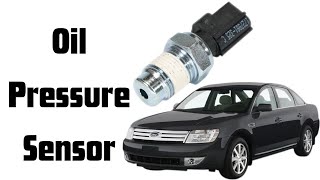

Even though a faulty switch is a common cause, an oil pressure warning can also mean you have a genuinely low oil level or a failing oil pump. Driving with low oil pressure can destroy your engine very quickly. Always check your oil level with the dipstick first. If the oil level is correct, replacing the switch is a logical 🎬 Watch a step-by-step 2008 Ford Taurus oil pressure sensor replacement. and inexpensive first step in diagnosing the problem.
Choosing the Right Aftermarket Oil Pressure Switch
When you need to replace the oil pressure switch, you don't necessarily have to buy the original Ford part. Quality aftermarket parts offer excellent value for a simple component like this. For the 2008-2009 Taurus X, there are several reliable options.
Brand Quality Tiers
Not all aftermarket parts are created equal. Here’s how to think about the brands available:
- Premium Aftermarket (Standard Ignition): Brands like Standard Ignition are well-regarded in the auto repair industry. They manufacture parts to meet or exceed original specifications, often in IATF 16949 certified facilities. 🎬 Learn more about how Standard oil pressure switches are manufactured. These parts undergo rigorous testing to ensure they are accurate and durable, making them a trusted choice for professional mechanics and DIYers who want a long-lasting repair.
- Standard Aftermarket (True Tech): While specific reviews for this exact part are scarce, True Tech is generally known as a brand associated with auto repair shops that are valued for being honest and competent. These parts are designed to be a cost-effective solution that meets the basic requirements for the vehicle. They are a suitable choice for a budget-conscious repair.
Pro Tip: Check for Leaks
When replacing the switch, check the old one for signs of oil leaking through the electrical connector. Oil leaking from the sensor body itself is a sure sign it has failed. The new switch should come with thread sealant already applied, but you can add a small amount of Teflon tape if needed.
Replacement Cost for 2008-2009 Ford Taurus X
The cost to replace the engine oil pressure switch is very reasonable, especially if you do it yourself. The part itself is inexpensive, and labor is minimal.
| Cost Category | Estimated Price Range |
|---|---|
| New Aftermarket Part | $20 - $32 |
| Shop Labor | $95 - $150 |
| Total Professional Replacement | $115 - $182 |
(Cost estimates are based on industry averages and may vary by location and repair shop.)
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a 2008-2009 Taurus X?

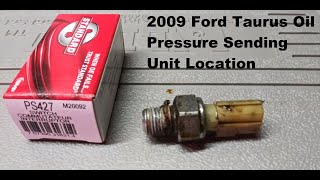

On the 3.5L V6 engine, the oil pressure switch is located on the front of the engine block, near the oil filter. It is often described as being below the throttle body and to the passenger side of the oil filter. 🎬 See exactly where the oil pressure sending unit is located. It has a small electrical connector, which can sometimes be yellow. You will likely need to access it from underneath the vehicle.
Is it hard to replace the oil pressure switch myself?
No, this is a relatively easy DIY job for someone with basic tools. It involves safely raising the front of the vehicle, unplugging the electrical connector, and using a deep socket (often 13/16" or 21mm) to unscrew the old switch and install the new one. Be prepared for a small amount of oil to drip out when you remove the old switch.
Are there any recalls for the oil pressure system on the Taurus X?
There are no specific recalls or Technical Service Bulletins (TSBs) for the engine oil pressure *switch* on the 2008-2009 Ford Taurus X. However, other Ford models have had recalls for issues that cause a loss of oil pressure, like failing oil pump belts, but these do not apply to the Taurus X.
What tools do I need to replace the oil pressure switch?
You will typically need a floor jack and jack stands, a ratchet with an extension, and a deep socket (commonly 13/16" or 21mm). You may also want a drain pan to catch any dripping oil and some shop towels for cleanup.
What do the P-codes like P0520 or P0522 mean?
These are diagnostic trouble codes (DTCs) related to the oil pressure sensor circuit. P0520 indicates a general malfunction in the circuit. P0522 indicates the sensor is reading low voltage (low pressure), and P0523 indicates high voltage (high pressure). While these can point to a bad sensor, they can also be caused by wiring issues or actual oil pressure problems.
Helpful Videos
Technical Specifications
OEM Part Numbers: SW6357 8F9Z-9278-A
Connector: 1 Terminal; Thread Size: Varies, requires specific socket (e.g., 13/16" or 21mm)
