Ford Taurus X Windshield Washer Pump Replacement Guide (2008-2009)
If your washer fluid isn't spraying, the fix is often easier and cheaper than you might think.
- Failure is common, with the primary symptom being a silent pump when activated.
- Replacement is an easy DIY job that takes less than an hour with basic tools.
- Access the pump by removing part of the front passenger-side wheel well liner.
- Quality aftermarket brands like ACDelco and Trico are reliable, cost-effective alternatives to OEM.
Is Your Taurus X Windshield Washer Pump Failing?
A broken windshield washer pump is a common issue. The first sign of trouble is usually when you try to clean your windshield and nothing happens. Before assuming the pump is bad, always check two things first: make sure your washer fluid reservoir is full and check that the spray nozzles on the hood aren't clogged with wax or debris. 🎬 Watch how to inspect and clear clogged washer nozzles. If those aren't the problem, the pump is the likely culprit.
Diagnosing the Problem
Listen for the pump when you activate the washers. You should hear a faint humming sound coming from the front passenger side of the car.
- No Sound: If you hear nothing at all, the pump's electric motor has likely failed or isn't getting power. On these models, the pump shares a fuse with the wiper motor, so if your wipers work, a blown fuse isn't the problem.
- Pump Hums, No Fluid: If you can hear the pump running but no fluid sprays out, the issue could be a clog in the system or a broken internal part of the pump. Over time, different washer fluids can mix and form a gel-like substance that clogs the pump's small filter screen.
- Weak Spray: A dying pump may lose pressure, resulting in a weak stream that doesn't effectively clean the glass.
- Leaks: Puddles of blue washer fluid under the front passenger side of your vehicle point to a leak. This is often caused by a cracked pump housing or a dried-out rubber grommet where the pump seals to the reservoir tank.
Choosing a New Aftermarket Pump
For a part like a windshield washer pump, an aftermarket replacement is a smart and cost-effective choice for most 2008-2009 Taurus X owners. The original Ford (Motorcraft) part works well, but aftermarket brands like ACDelco and Trico offer similar quality and reliability for a lower price. Since this is a simple, non-critical component, there's little risk in choosing a quality aftermarket option.
Pro Tip: Clean the Reservoir
When you replace the pump, it's the perfect time to clean the washer fluid tank. Siphon or drain any old fluid, and rinse the tank thoroughly with water to remove any gel or debris. This prevents the filter on your new pump from getting clogged right away.
Cost of Replacing a Windshield Washer Pump (2008-2009 Ford Taurus X)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (ACDelco, Trico) | $47.52 - $55.65 |
| New OEM (Ford/Motorcraft) | $45 - $70 |
| Shop Labor | $98 - $143 |
| Total Professional Replacement 🎬 Watch this video to see the replacement process on similar models. | $137 - $213 |
Frequently Asked Questions (FAQ)
Where is the washer pump located on the 2008-2009 Taurus X?

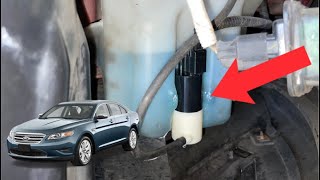

The windshield washer pump is located at the bottom of the washer fluid reservoir. To access it, you need to remove a few screws or clips from the inner fender liner in the front passenger-side wheel well and peel it back. The pump is press-fit 🎬 See a step-by-step guide on replacing the washer pump. into the tank with a rubber grommet.
Is this a difficult repair to do myself?
No, this is a very DIY-friendly repair. The difficulty is low, and it typically takes less than an hour with basic hand tools like a 7/32" or 5.5mm socket and a small screwdriver. You will need to drain the washer fluid first, so have a bucket ready before pulling the old pump out.
Are there any recalls for the Taurus X washer pump?
No, there are no specific recalls for the windshield washer pump on the 2008-2009 Ford Taurus X. A recall in 2021 for other Ford models involved contaminated washer fluid, but it did not affect the Taurus X.
Do I need to replace the grommet seal with the pump?
Yes, it is highly recommended. The rubber grommet that seals the pump to the reservoir can become hard and brittle over time, leading to leaks. Most new aftermarket pumps include a new grommet.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8A8Z-17664-A BA8Z-17664-A BE8Z-17664-A
12V electric motor pump, press-fit into reservoir with rubber grommet, one electrical connector, two outlet ports (front/rear).
