A Guide to the Manifold Absolute Pressure (MAP) Sensor for the 2008-2009 Pontiac G8
Understand, diagnose, and choose the right replacement MAP sensor for your V8 or V6 Pontiac G8.
- For V8 models, the MAP sensor is an easy-to-replace part on the intake manifold; for the V6, the MAF sensor is the primary component for air measurement.
- Symptoms of a bad MAP sensor include poor performance, rough idle, bad gas mileage, and a Check Engine Light with codes like P0106.
- Choosing a quality replacement from an OEM (ACDelco) or reputable OE brand (Bosch, Delphi) is highly recommended for reliability and performance.
- No recalls or TSBs are specifically associated with the MAP sensor for the 2008-2009 Pontiac G8.
Is it a MAP or MAF Sensor Issue?
Your 2008-2009 Pontiac G8 uses a combination of sensors to manage engine performance. All G8 models have a Mass Air Flow (MAF) sensor that measures the volume of air entering the engine. The V8 models (6.0L and 6.2L) also use a distinct Manifold Absolute Pressure (MAP) sensor as a primary input for engine load. However, for the 3.6L V6 model, the engine management system relies more heavily on the MAF sensor, and a separate, easily accessible MAP sensor on the intake manifold is not present as it is on the V8s. Before replacing parts, it's important to have the diagnostic trouble codes read to confirm which sensor is the source of the problem.
Signs of a Failing MAP Sensor
A bad MAP sensor sends incorrect data to the engine's computer, which can cause a variety of noticeable problems. Because its symptoms can be similar to other issues, like a vacuum leak, it's important to get a proper diagnosis.
🎬 Learn how a dirty throttle body can trigger MAP codes- Check Engine Light: This is often the first sign. Codes like P0106, P0107, or P0108 specifically point to the MAP sensor circuit. 🎬 Watch: How to diagnose and test a P0106 sensor code
- Poor Engine Performance: You might feel hesitation or a lack of power when you accelerate. The car may feel sluggish.
- Rough Idle: The engine may shake or idle unevenly because the air-fuel mixture is incorrect.
- Bad Fuel Economy: If the sensor causes the engine to run rich (too much fuel), you'll find yourself at the gas station more often.
- Black Smoke from Exhaust: An overly rich fuel mixture can result in black smoke coming from the tailpipe, which is unburnt fuel.
- Stalling: The engine may stall unexpectedly, especially at idle or low speeds.
V8 vs. V6: A Key Difference
For V8 Owners (GT, GXP): You have a dedicated MAP sensor located on the front of the intake manifold, making it easy to access and replace.
For V6 Owners: Your engine (LY7) primarily uses the Mass Air Flow (MAF) sensor for load calculations. While parts catalogs may list a MAP sensor, it is not in a common, easily serviced location on the intake manifold like on the V8s. If you have MAP sensor codes on a V6, the issue could be related to the MAF sensor or wiring, and professional diagnosis is recommended.
Choosing the Right Aftermarket MAP Sensor
When it comes to engine sensors, quality and accuracy are critical. While saving money is tempting, a cheap, low-quality sensor can cause more problems than it solves.
| Brand Tier | Brands | Quality & Performance Assessment |
|---|---|---|
| OEM / Premium OE | ACDelco, Bosch, Delphi | ACDelco is the original equipment manufacturer (OEM) for GM vehicles, offering a direct replacement for guaranteed fit and performance. Bosch and Delphi are highly reputable Original Equipment (OE) suppliers known for their quality, precision, and long-term stability, making them excellent and reliable alternatives. A review for the Bosch sensor on a G8 noted it was a perfect plug-and-play fix for a no-start and rough idle issue. |
| Quality Aftermarket | NGK (NTK), Spectra | NGK, through its NTK sensor line, has a strong reputation for quality engine management parts that meet or exceed OE specifications. Spectra also designs its sensors based on in-depth knowledge of the OE part, and they are road-tested to ensure performance. These brands offer a good balance of price and reliability. |
| Standard / Economy | Walker Products, Facet, Global Parts | These brands provide a budget-friendly option. While they are designed to meet OE form and fit, forum discussions for similar vehicles often advise caution with economy sensors. They can be a viable option for a quick fix, but long-term reliability may not match that of premium brands. Some users of lower-cost sensors on other vehicles report issues like incorrect idling or premature failure. |
A Note on Modified Vehicles
If your G8's engine is modified (e.g., with a supercharger or aggressive camshaft), it is highly recommended to use a high-quality OEM or Premium OE sensor. Forum discussions among LS engine enthusiasts consistently show that these engines are sensitive, and a quality GM or Bosch sensor provides the most reliable data for tuning.
Frequently Asked Questions (FAQ)
Where is the MAP sensor located on my Pontiac G8?

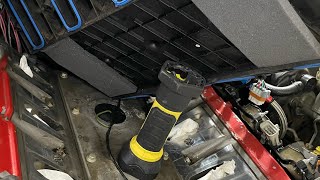

On the 6.0L and 6.2L V8 engines, the MAP sensor is located on the front of the intake manifold, just behind the throttle body. 🎬 See this walkthrough for removing and replacing LS intake sensors It is held in by a single bolt. On the 3.6L V6, there is no easily accessible MAP sensor on the intake manifold; the engine relies primarily on the MAF sensor.
Are there any recalls for the G8's MAP sensor?
No. There have been no recalls or technical service bulletins (TSBs) issued by GM or the NHTSA specifically for the Manifold Absolute Pressure sensor on the 2008-2009 Pontiac G8.
Can I clean my MAP sensor?
It is generally not recommended to clean a MAP sensor, as they are sensitive electronic components that can be easily damaged by chemicals or compressed air. Unlike a MAF sensor, which can sometimes be cleaned with a specific aerosol cleaner, a MAP sensor that is malfunctioning due to internal failure should be replaced.
Is it okay to buy the cheapest MAP sensor available?
While it might be tempting, buying the cheapest sensor can be risky. Engine management sensors require precise readings to function correctly. A low-quality sensor can provide inaccurate data, leading to persistent performance issues, poor fuel economy, or even trigger the same check engine light codes. Sticking with an OEM or reputable OE-quality brand is a safer investment.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12591290 55573248
The MAP sensor for the Pontiac G8 is a 3-pin blade-style electronic sensor that mounts directly to the intake manifold on V8 models.
