2008-2010 Saturn Vue Windshield Washer Pump Replacement Guide
If your washer fluid isn't spraying, the pump is a likely culprit; here's what you need to know to fix it.
- A silent washer pump is the most common sign of failure on a Saturn Vue.
- Replacement is a simple DIY task, requiring basic tools and less than an hour for most owners.
- Some 2008-2009 models were part of a recall to disable a faulty heated washer fluid system.
- An aftermarket pump from a brand like Trico is a reliable and cost-effective solution.
Is Your Saturn Vue Washer Pump Failing?
A non-working windshield washer system is more than an annoyance; it's a safety issue. If you activate the washers and nothing happens, or the spray is weak, the pump is a common failure point. Before replacing the pump, it's wise to check a few simple things first.
- Check the Fluid Level: It may seem obvious, but an empty reservoir is a common reason for no spray.
- Listen for the Pump: Have someone listen near the front passenger side of the engine bay while you activate the washer switch. If you hear a humming or whirring sound, the pump is getting power and the problem is likely a clog in the lines or nozzles. 🎬 Watch this troubleshooting guide if your washer fluid isn't spraying. If you hear nothing, the pump has likely failed or has no electrical power.
- Check the Fuse: If the pump makes no noise and your wipers still work, the pump itself is the most likely issue. However, a blown fuse can cut power to the system.
- Look for Clogs: Debris can clog the small filter grommet where the pump enters the reservoir, or the nozzles on the hood. Sometimes, cleaning these can restore flow.
Heated Washer Fluid System Recall
Certain 2008-2009 Saturn Vue models were equipped with a heated washer fluid system (RPO code XA7 or CHW) that was recalled due to being a fire risk. The official GM remedy was to permanently disable and remove the system. If your vehicle had this feature, it has likely been disabled, and any replacement pump will be for the standard, non-heated system.
Choosing a New Aftermarket Washer Pump
For a part like a windshield washer pump, an aftermarket replacement is a practical and cost-effective choice. The original GM part is no longer readily available due to the Saturn brand being discontinued. Aftermarket brands like Trico produce direct-fit replacement pumps designed to meet or exceed original specifications. 🎬 See how a Trico replacement pump fits your vehicle. These pumps are made to install easily without needing modifications. Given the simplicity of the part, a quality aftermarket pump offers reliable performance and excellent value.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump (Trico) | $35.96 |
| Shop Labor | $110 - $161 |
| Total Professional Replacement | $145 - $197 |
Costs are estimates and can vary based on your location and the specific repair shop.
DIY Installation Tip

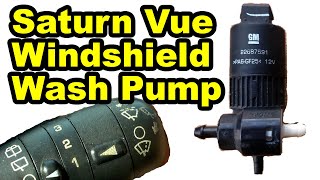

Replacing the washer pump on a 2008-2010 Vue is a beginner-friendly job that can be done in under an hour. The washer fluid reservoir is located in the engine bay on the passenger side. You will need to loosen the coolant overflow tank (typically held by two 10mm bolts) and a 7mm bolt for the washer reservoir to get enough clearance to lift the reservoir and access the pump at the bottom. Have a bucket ready to catch any remaining washer fluid when you pull the old pump out. It's also a good idea to clean the small filter screen on the reservoir 🎬 Follow this step-by-step video to replace your washer pump. grommet while you have it apart.
Frequently Asked Questions
Does my Saturn Vue have one or two washer pumps?
Your vehicle may have two separate pumps located in the same reservoir: one for the front windshield and one for the rear window. If only one of your washers is working, it's likely that the corresponding pump has failed.
Is the rubber grommet/seal included with the new pump?
Most aftermarket pumps come with a new rubber grommet, which also acts as a filter screen. It is highly recommended to use the new grommet to ensure a leak-free seal. While replacing the pump, it's a good time to clean any sludge from the inside of the reservoir opening.
Why did my washer pump fail?
Washer pumps can fail from normal wear and tear over time. Running the pump while the reservoir is empty is a common cause of premature failure, as the fluid helps cool the small electric motor. Clogs in the system can also strain the pump, leading to burnout.
Can I just clean the nozzles instead of replacing the pump?
If you can hear the pump motor running but the spray is weak or non-existent, the problem might be clogged nozzles or lines. You can try cleaning the nozzle openings with a small pin or soaking them in vinegar to dissolve mineral deposits. If that doesn't work, the pump itself may be weak and unable to produce enough pressure.
Helpful Videos
Technical Specifications
Direct-fit electric pump, typically includes new grommet/filter screen.
