Engine Water Pump Replacement for the 2008-2012 Audi A6 Quattro
A complete guide to choosing the right water pump to prevent overheating in your C6 Audi A6.
- A coolant leak or whining noise from the engine are early warnings of water pump failure that should not be ignored.
- Due to the high cost of labor, always choose a top-tier aftermarket brand like Hepu, Graf, or Gates to ensure reliability.
- It is highly cost-effective to replace the thermostat and serpentine belt at the same time as the water pump.
- Never drive an overheating Audi; pull over immediately to prevent catastrophic engine damage like a warped cylinder head.
Symptoms of a Failing Water Pump
A water pump can fail gradually, often giving you warning signs. Ignoring these can lead to catastrophic engine failure. The most common sign is a coolant leak, which appears as a pink, green, or orange puddle under the front of your engine. This happens when the internal seals wear out. Other symptoms include:
- Engine Overheating: If the temperature gauge on your dash starts climbing into the red, your pump may not be circulating coolant effectively.
- Whining or Grinding Noises: A high-pitched whine that changes with engine speed 🎬 Watch: Using a stethoscope to diagnose a failing water pump often points to a failing bearing inside the water pump.
- Steam from the Hood: This is a critical sign that your engine is overheating due to a lack of coolant circulation. Pull over immediately if you see this.
- Low Coolant Light: A persistent low coolant warning, even after topping it off, indicates a leak somewhere in the system, very often at the water pump. 🎬 See a visual guide to common bad water pump symptoms
Choosing the Right Aftermarket Water Pump
The water pump replacement on an A6 Quattro is labor-intensive, so choosing a high-quality part is critical to avoid doing the job twice. Aftermarket parts for your Audi fall into different quality tiers.
Metal vs. Plastic Impellers
Some early C6 models were equipped with water pumps that had plastic impellers which could become brittle and fail over time. Most quality aftermarket replacements feature a more durable all-metal impeller design. When choosing a part, a metal impeller is a worthwhile upgrade for longevity.
Brand Quality Tiers
Not all aftermarket brands are created equal. For a critical part like the water pump, it's best to stick with brands known for supplying original equipment (OEM) parts to German automakers.
- Top Tier (OEM Quality): Brands like Hepu, Graf, and Gates are highly regarded in the Audi community. Hepu and Graf are German brands often used as original equipment. Gates is a leader in cooling system components and their pumps are known for durability and quality construction.
- Mid Tier (Reliable Aftermarket): Beck Arnley, GMB, and Hella offer a good balance of quality and value. GMB is a respected Japanese manufacturer, and Hella is a major German OEM supplier for various components. Beck Arnley often sources from different manufacturers, so quality can be consistent.
- Economy Tier (Use with Caution): Brands like URO Parts and US Motor Works are typically the most affordable. However, forum discussions often show mixed reviews regarding their long-term reliability for critical components. Given the high labor cost for this repair, saving a few dollars on a budget pump is generally not recommended.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While there were no recalls specifically for the main engine-driven water pump on the 2008-2012 Audi A6 Quattro V6/V8 models, there were recalls for an electric auxiliary coolant pump on some 2012-2015 A6 models equipped with the 2.0L TFSI engine. These recalls (NHTSA Campaign Numbers 17V002000 and 18V229000) addressed issues where the auxiliary pump could overheat and pose a fire risk. This does not apply to the primary mechanical water pump discussed in this guide but is important information for owners of affected 2.0T models.
| Component | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $52 - $510 |
| Shop Labor | $600 - $1100+ |
| Total Estimated Cost | $652 - $1610+ |
Pro Tip: While replacing the water pump, it is highly recommended to also replace the thermostat, serpentine belt, and fresh coolant. These parts are all accessed during the water pump job, so replacing them at the same time saves you from paying for the same labor twice in the near future.
Frequently Asked Questions (FAQ)
How often should the water pump be replaced?
As a general maintenance rule, the water pump should be inspected and likely replaced every 60,000 to 90,000 miles, or whenever the timing belt/chain service is performed. However, you should replace it immediately if you notice any signs of failure.
What is the 'weep hole' on a water pump?
The weep hole is a small opening on the water pump designed to let a tiny amount of coolant escape if the internal seals start to fail. A few drips can be normal, but a steady drip or stream of coolant from this hole means the pump needs to be replaced soon.
Can I replace the Audi A6 water pump myself?

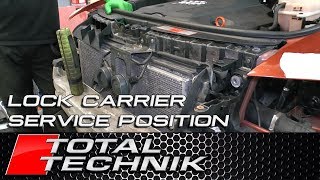

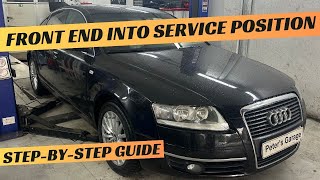

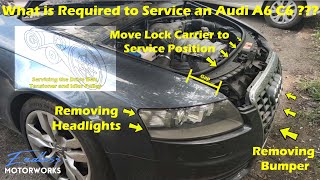

This is an advanced DIY job. It requires putting the front of the car into a "service position" to get enough access to the front of the engine. 🎬 Watch: How to put your Audi into the service position It also requires specialized tools and a good understanding of Audi engines. For most owners, professional installation is recommended.
Should I use a sealant on the new water pump gasket?
Generally, no. New water pumps come with a new gasket or O-ring that is designed to seal on its own. The most important step is to thoroughly clean the mounting surface on the engine block so it is completely free of old gasket material and corrosion.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06E121018A 06E121016P 06E121018C 06E121018L 06E121005F
Mechanically driven by the engine's accessory belt. Most quality replacements feature a cast aluminum housing and a metal impeller.
