2008-2012 Chevrolet Express 2500 Brake Light Switch Replacement Guide
Solve common brake light, cruise control, and shift lock problems by finding the right switch for your Express van.
- A faulty brake light switch is a very common cause of cruise control failure on these vans.
- Always check the fuse and bulbs first to rule out simpler problems before replacing the switch.
- For a reliable, long-term fix, choosing an ACDelco brand switch is highly recommended by other owners.
- 2012 models use a different sensor that requires a scan tool calibration after replacement.
Is Your Brake Light Switch Failing?
A bad brake light switch on a 2008-2012 Express van can cause several confusing electrical problems. Because the switch is tied into multiple systems, a failure can show up in ways that don't seem related to the brake lights at first. Being able to spot the signs early is key to a quick and safe repair.
Top 5 Failure Symptoms
- Brake Lights Don't Work: The most dangerous symptom is when your brake lights do not light up at all when you press the pedal.
- Brake Lights Stay On: The switch can also fail in the 'on' position, leaving your brake lights constantly lit, which can confuse other drivers and drain your battery.
- Cruise Control Won't Set: A very common issue on these GM vans is the cruise control failing to engage. The system thinks the brakes are being applied, even if they aren't, and won't allow the cruise control to set.
- Can't Shift Out of Park: The switch is part of the safety shift interlock system. If it fails, it won't send the signal that the brake is pressed, and your gear shifter will be stuck in Park. 🎬 See how to fix a shifter that won't move out of park.
- ABS or Stability Light On: A faulty switch can send incorrect data to the brake control modules, sometimes triggering the ABS or "Service Stability" warning lights on your dashboard.
Special Note for 2012 Models
The 2012 Chevrolet Express uses a Dual Brake Pedal Position (BPP) Sensor, which is different from the simple switch in 2008-2011 models. After replacing this sensor, a "relearn" or calibration procedure must be performed using a diagnostic scan tool. 🎬 Watch: How to replace and calibrate the brake pedal position sensor. Failure to do so can result in symptoms like the brake lights staying on, cruise control issues, or a "Service Stability" message.
Choosing the Right Aftermarket Brake Light Switch
When shopping for a replacement, you'll find several brands. While they all perform the same basic function, there can be differences in quality and longevity.
Brand Tiers for Your Express 2500

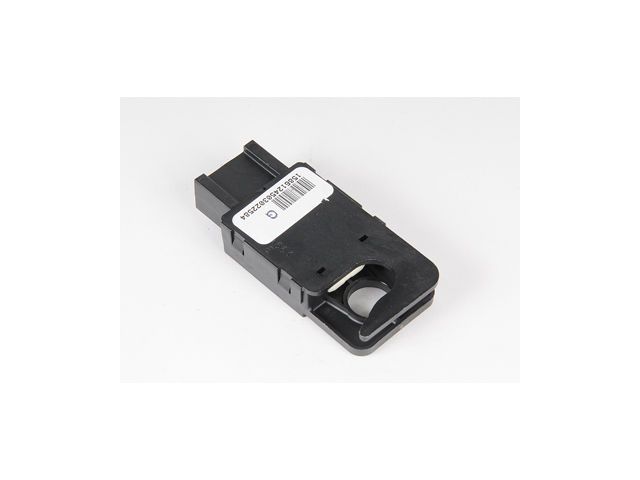

- Tier 1: ACDelco: As the original equipment manufacturer (OEM) for General Motors, ACDelco is the most trusted choice. Choosing an ACDelco "Professional" or "GM Genuine" part ensures you get a component designed to the original factory specifications. Many owners report that using the ACDelco part is the best way to solve intermittent electrical issues like cruise control failure.
- Tier 2: Standard Ignition (SMP): Standard Motor Products is a well-respected aftermarket manufacturer that produces reliable electronic components. Their switches are a solid alternative to the OEM part and often meet or exceed original quality.

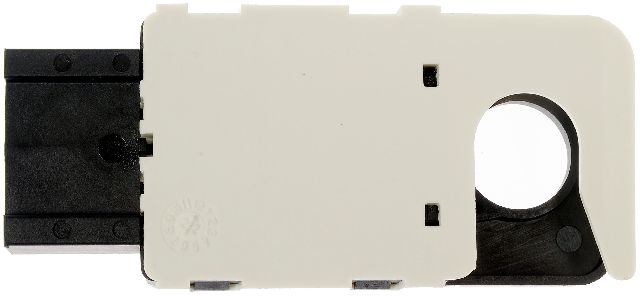

- Tier 3: Dorman: Dorman is a budget-friendly option. However, forum discussions among mechanics and vehicle owners often point to inconsistent quality control with this brand for electronic parts. It may work, but it is generally considered a lower-tier choice compared to ACDelco or Standard.
Pro Tip: Before replacing the switch, always check the simple things first. Make sure the "STOP LP" fuse isn't blown and that your brake light bulbs are good. On Express vans, wiring can sometimes chafe under the driver's side floor mat, causing a short that blows the fuse.
Brake Light Switch Replacement Cost
The cost to replace the brake light switch is reasonable, with the part itself being inexpensive. The main cost variable is labor if you have a shop perform the work.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $24 - $83 |
| New OEM (ACDelco) Switch | $15 - $45 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $65 - $183 |
Frequently Asked Questions (FAQ)
Can I replace the brake light switch myself?
Yes, this is a DIY-friendly repair for most people. The switch is located on the brake pedal bracket under the dashboard. The workspace is very cramped, which is the main difficulty. The process involves removing a retaining clip and possibly a 10mm bolt, unplugging the old switch, and installing the new one. 🎬 Watch this step-by-step guide on replacing the brake light switch. Remember, 2012 models require a scan tool for calibration after installation.
What happens if I don't replace a bad brake light switch?
You should not drive your vehicle with a faulty brake light switch. The most serious risk is that your brake lights won't work, which can easily cause a rear-end collision. Other issues include being stranded because you can't shift out of Park, having no cruise control, or draining your battery if the lights are stuck on.
My brake lights don't work, but the third brake light does. Is it the switch?
This specific symptom on many GM vehicles often points to a problem with the hazard flasher switch/turn signal multifunction switch, not the brake light switch. The main brake lights are routed through the multifunction switch, while the third brake light (Center High Mount Stop Lamp) often has a more direct circuit from the brake light switch. If only the two main lights are out, investigate the multifunction switch first.
Are there any recalls for this part on my van?
No, there are no specific recalls for the brake light switch on the 2008-2012 Chevrolet Express 2500. While GM did recall other cars around this time for similar issues, the Express van was not included in those campaigns.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15861245
The switch is located on the brake pedal support bracket under the driver's side dashboard. It is a plunger-style switch that is activated by the movement of the brake pedal arm. The 2012 model uses a variable resistance sensor instead of a simple on/off switch.
