Jeep Liberty (2008-2012) Door Window Switch Failure and Replacement
If your Jeep Liberty's windows are acting up, the driver's door master switch is the most likely reason.
- The master window switch is a very common failure item on 2008-2012 Jeep Libertys.
- Replacement is extremely easy, requires no special tools, and can be done in under 10 minutes without removing the door panel.
- Aftermarket switches are affordable and reliable for this part; just be sure to match the 8+13 pin connector.
- Symptoms almost always point to the switch itself, not the window motors.
Is Your Jeep Liberty Window Stuck?
A faulty master window switch is one of the most common problems on the 2008-2012 Jeep Liberty (also called the KK generation). If one or more of your power windows has stopped working, or only works sometimes, the driver's door switch is the first place to look. This part contains complex electronics that can fail over time, especially from moisture exposure when the door is opened in the rain or snow. Fortunately, this is one of the easiest and cheapest parts you will ever replace on your Liberty.
Symptoms of a Failing Window Switch
When the master switch starts to go bad, you might notice a few strange things happening. You don't need to panic; these are classic signs of switch failure.
- One or More Windows Won't Work: You might find that only the driver's window works, or that none of the passenger windows respond to the master switch controls.
- Window Goes Down But Not Up: A very common symptom is a window that lowers normally but struggles or refuses to go back up. You might have to pull up hard on the switch button to make it work.
- No Response at All: The entire switch panel may seem dead, with no control over any windows or the power locks.
- Passenger Switches Work, Master Switch Doesn't: If you can still operate a window from its own door switch but not from the driver's master panel, it points directly to a bad master switch.
An Important Note on Recalls
While the National Highway Traffic Safety Administration (NHTSA) investigated reports of fires in the driver's side door switch on some 2012 Liberty models, the investigation was closed without a formal recall due to the low rate of incidents. However, since moisture is a known cause of failure, replacing a faulty switch promptly is recommended to prevent potential short circuits.
Choosing a New Aftermarket Switch
For this specific part, there is little reason to pay the high price for an OEM Mopar switch. The aftermarket has developed quality replacements that are significantly cheaper and readily available. Many owners report using budget-friendly switches for years without issues.
- Tier 1 (Premium Aftermarket): Brands like Dorman, Standard Motor Products (SMP), and TRQ offer direct-fit replacements that are engineered to match OEM function and quality. They are a reliable choice and often come with a good warranty.
- Tier 2 (Budget-Friendly): A wide variety of brands like Switch Doctor, A-Premium, and others are available online. These are often the most affordable and are popular with owners, with many reporting positive results. The key is to verify the pin configuration before ordering. 🎬 See how to swap the switch in this quick video.
Check Your Pins!
The master switch for the 2008-2012 Liberty uses a two-plug connector with an 8-pin and a 13-pin configuration. Always confirm this matches the part you are ordering. While some aftermarket switches may offer dual auto up/down features, they may not function if your Liberty's computer is not programmed for it.
Cost of Replacing a Jeep Liberty Window Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $120 - $200+ |
| New Aftermarket | $25 - $70 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Is it difficult to replace the window switch myself?
No, this is one of the easiest repairs you can do. It requires no special tools, just a small flathead screwdriver or a trim removal tool. The entire job can be done in less than 10 minutes.
Do I need to remove the whole door panel?
No. The switch assembly is simply held in by clips and can be pried directly out of the top of the door panel. 🎬 Watch this step-by-step guide to replacing your master switch. Once it's out, you just unplug the two connectors, plug in the new switch, and snap it back into place.
My window is stuck down. How can I get it up before my new part arrives?
Sometimes, you can get the window to go up by pressing down on the back of the switch button while pulling up on the front. This can help the worn internal contacts make a connection. If that fails, you will likely need to wait for the replacement switch, as the problem is rarely the window motor itself.

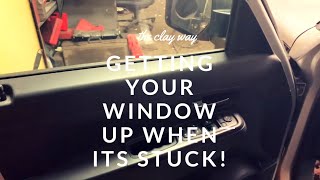

🎬 Try this free trick to get your window moving again.Can I upgrade to a switch with more features, like auto-up?
Some aftermarket switches are sold with auto up/down for both front windows. While installing one might give you passenger-side auto-down, the auto-up feature will likely not work because the vehicle's body control module isn't programmed for it. It's best to buy a switch that matches your vehicle's original features.

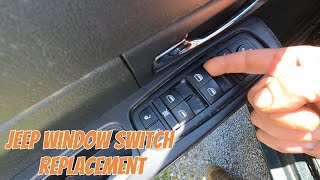

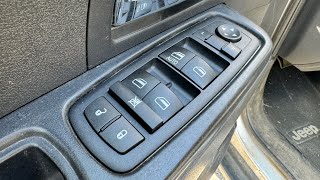

Helpful Videos
Technical Specifications
OEM Part Numbers: 4602632AG 4602632AH 4602632AF 4602632AE 4602632AD 4602632AC 4602632AB
Configuration: Driver Side Master Switch, Connectors: 1x 8-pin, 1x 13-pin, Controls: 4x Windows, Window Lock, Door Locks
