A Mechanic's Guide to 2008-2013 BMW 325i Brake Rotor Replacement
Stop the guesswork and choose the right new aftermarket brake rotors for your E90 325i.
- Vibration when braking is a clear sign of warped rotors.
- Zimmermann is a highly recommended OEM-equivalent brand for factory performance, while StopTech is a quality performance upgrade.
- Always replace the brake wear sensors (front-left and rear-right) when changing pads to reset the dashboard light.
- Verify the correct rear rotor part number with your VIN, as it can vary between RWD, AWD, and body styles.
Is Your BMW Telling You It Needs New Rotors?
Your 325i has a smart system called Condition Based Service (CBS) that estimates when your brakes need service, but you should also watch for physical signs. A vibrating steering wheel or pulsating brake pedal when you slow down is a classic sign of warped rotors. You might also hear a loud grinding noise, which often means the brake pads have worn down completely and are now metal-on-metal with the rotors, causing serious damage. A high-pitched squeal can also indicate it's time for a check-up. Finally, a solid red "BRAKE" light on your dashboard is the most direct warning; it means the brake pad wear sensor has been tripped, and your rotors should be inspected immediately along with the pads.
Don't Ignore the Red Brake Light
The red brake light means the physical wear sensor has contacted the rotor, indicating your pads are at their minimum thickness. You typically have about 1,000 miles to get them replaced before you risk severe, costly damage to the rotors. Always replace the single-use wear sensors with your pads to ensure the warning system works correctly.
Choosing the Right Aftermarket Rotors for Your 325i
You don't have to pay dealership prices for quality brakes. The aftermarket offers excellent options that meet or exceed BMW's original specifications. They generally fall into three tiers.
Tier 1: OEM-Equivalent Brands
These brands are often the original suppliers to BMW. You get the same quality part without the BMW logo and price tag. They are the best choice for owners who want to restore original performance and feel.
- Zimmermann: A German brand widely considered to be an OEM supplier for BMW. They are a top choice for a direct, high-quality replacement that will perform like the factory originals. Many owners choose Zimmermann for their excellent fit and anti-corrosion coatings.
Tier 2: Performance Aftermarket
These brands offer upgrades over stock, such as better cooling or improved bite, making them great for spirited driving.
- StopTech: This is Centric's premium brand, known for high-quality engineering. They offer options like slotted rotors that help reduce brake fade during repeated hard stops, making them a popular upgrade for enthusiasts. They are an excellent choice if you want a step up from stock performance without moving to a full big brake kit.
Tier 3: Standard Aftermarket
These brands provide reliable, budget-friendly replacements that meet safety standards for daily driving.

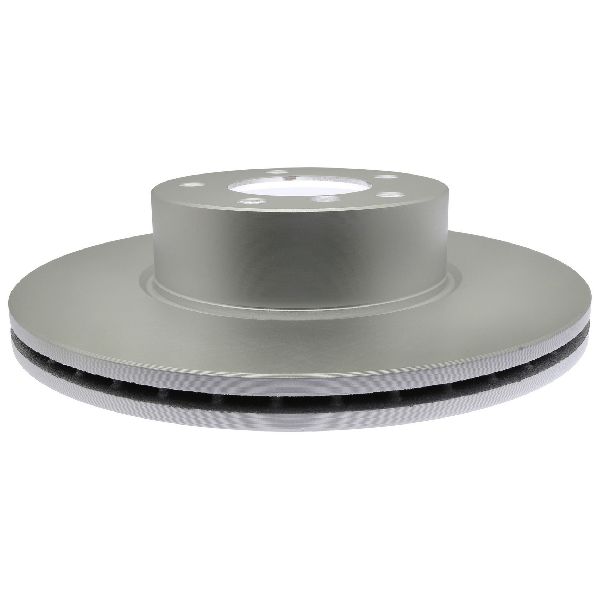

- Centric: A huge name in the aftermarket, Centric offers a range of rotors. Their premium coated rotors are a great value, offering good performance and rust protection on the hub and vanes. They are a solid, dependable choice for a daily driver.

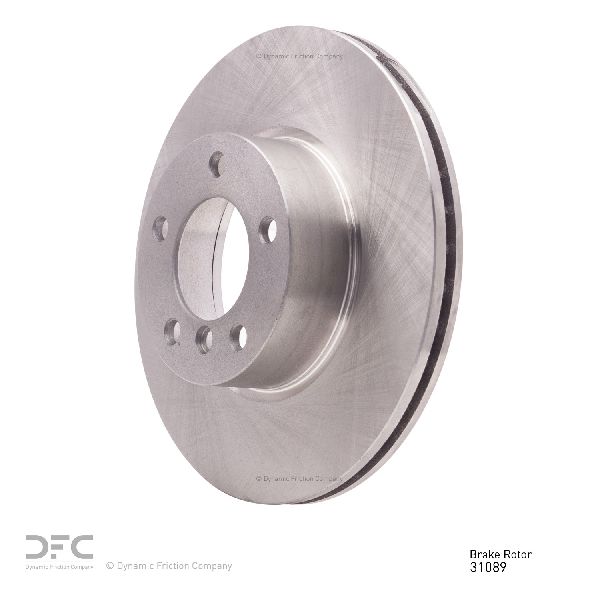

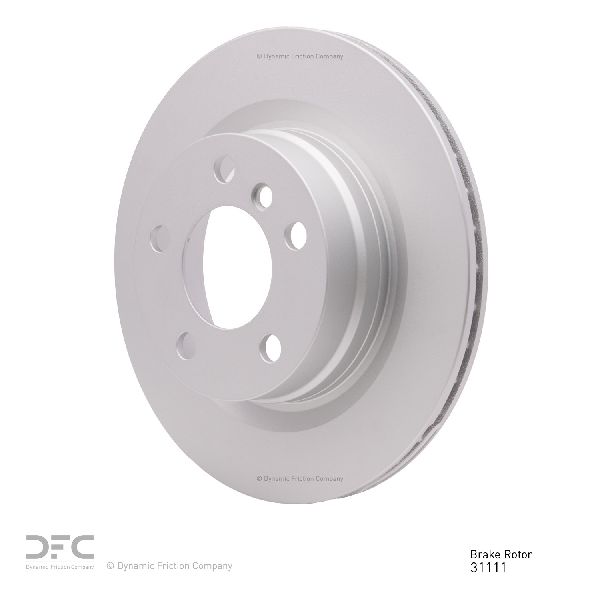

- Dynamic Friction: This brand offers affordable OE-style replacement rotors. User reviews suggest they are a decent budget-friendly option, though the finish quality may not be as high as premium brands.
A Note on Fitment
The E90-chassis BMWs had several brake variations. The standard front rotor for a 325i is 300x24mm. However, rear rotors can differ based on whether your car is rear-wheel-drive (RWD) or all-wheel-drive (AWD), and even between sedan and wagon/convertible models. Always verify the correct part numbers using your vehicle's VIN before ordering.
Known Issues for 2008-2013 BMW 325i Brakes
While the brake system is robust, there are a few known quirks. Some owners report brakes binding or sticking, especially at the rear. This can sometimes be caused by the parking brake shoes, which are housed inside the rear rotor, sticking after the car has been washed and left to sit. Additionally, a recall was issued for improperly tightened parking brake bracket screws, which could fall into the brake drum and cause issues. If you experience dragging from the rear, it's worth having the internal parking brake assembly inspected when you replace the rotors.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Rotors (Pair) | $110 - $475 |
| New OEM Rotors (Pair) | $190 - $260 |
| Shop Labor (Per Axle) | $150 - $250 |
| Total Independent Shop (Pads & Rotors, Per Axle) | $600 - $900 |
| Total at Dealership (Pads & Rotors, Per Axle) | $900 - $1,500 |
Frequently Asked Questions
Do I have to replace my rotors when I replace my brake pads?
Not always, but it is highly recommended on BMWs. Rotors have a minimum thickness stamped on them (e.g., 22.4mm for the front). If the rotor is below this thickness or is warped, it must be replaced. Replacing pads and rotors together ensures the best performance and a fresh, flat surface for the new pads to bed into.
Should I get drilled or slotted rotors?
For a daily-driven 325i, standard blank rotors from a quality brand like Zimmermann are more than enough. Slotted rotors, like those from StopTech, can offer better performance in wet conditions and reduce brake fade under heavy use, but they can also be slightly noisier and wear pads faster. Drilled rotors look great but are more prone to cracking under track conditions.
What is the small screw on the rotor for?
That is the rotor set screw (usually a 6mm Allen head). Its only job is to hold the rotor in place on the hub while the caliper and wheel are off. It makes assembly easier. It does not bear any of the braking load; the wheel's lug bolts do that.
Why are my new brakes squeaking?
New brakes can sometimes squeak during the first few hundred miles as they "bed-in." This process mates the pad material to the rotor surface. If the noise persists, it could be due to not using brake lubricant on the caliper contact points or choosing a very aggressive performance pad compound. Quality OEM-equivalent pads are typically very quiet.
Technical Specifications
OEM Part Numbers: 34116772669 34116854998 34216855007 34216764653 34216764651
Front Rotor Size: 300x24mm. Rear Rotor Size: Varies, commonly 300x20mm. Rotor Set Screw: 6mm Allen head. Caliper Bracket Bolts: 18mm (Front), 16mm (Rear).
