Chevrolet Silverado 1500 Windshield Washer Pump Replacement Guide (2008-2013)
Everything you need to know about diagnosing and replacing the windshield washer pump on your 2008-2013 Silverado 1500.
- A failed washer pump is a common issue, but always check for a blown fuse before ordering a new part.
- Replacement requires removing the driver's side front wheel and fender liner for access.
- An aftermarket pump from a brand like Trico provides a cost-effective and reliable repair for this truck.
- Some 2008-2009 models had a recalled heated washer system; this is separate from the main pump but good to be aware of.
Is Your Silverado's Washer Pump Failing?
A non-working windshield washer is more than an annoyance; it's a safety issue. Before you buy a new part, it's important to confirm the pump is the actual problem. The issue could be as simple as an empty fluid tank or a blown fuse.
Common Symptoms of a Bad Washer Pump
- No Spray at All: You press the button and nothing happens. You don't hear the pump motor running. This is the most common sign of a failed pump or an electrical issue.
- Pump Sound, But No Fluid: If you can hear the pump motor whirring but no fluid comes out, the pump's internal impeller might be broken, or your lines or nozzles are clogged. 🎬 Watch: How to clear and fix a clogged spray nozzle.
- Weak or Uneven Spray: If the fluid just dribbles out or doesn't reach the whole windshield, the pump may be getting weak and losing its ability to create enough pressure.
Pro Tip: Check the Fuse First!
Before spending money on a new pump, always check the fuse. A blown fuse is a very common reason for the washer system to stop working. On this generation of Silverado, the fuse is located in the under-hood fuse box on the driver's side. Check your owner's manual for the exact fuse number, but it is often a 15-amp fuse labeled "WSH" or "WASHER".
🎬 Watch: How to find and check your washer pump fuse.Choosing the Right Aftermarket Pump
When shopping for a replacement, you'll find Original Equipment (OEM) parts and aftermarket options. For the 2008-2013 Silverado, a quality aftermarket pump offers a great balance of performance and value.
- OEM (ACDelco): This is the original part your truck was built with. It guarantees a perfect fit and reliable performance but comes at a higher price. Sometimes the OEM replacement does not include a new rubber grommet, which is a critical seal.

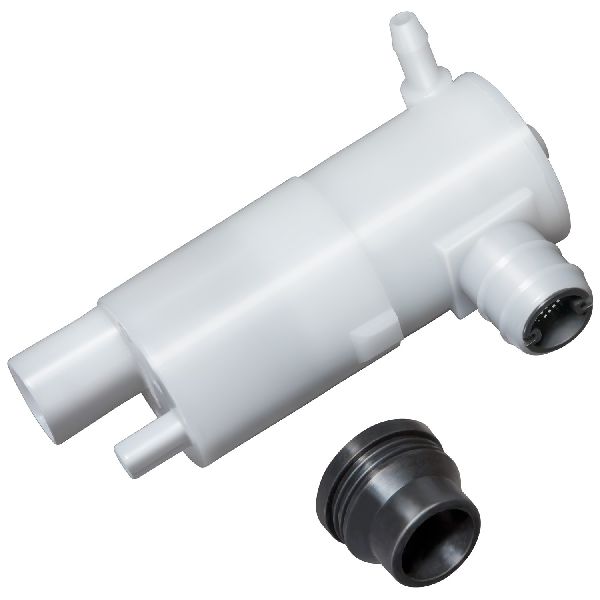

- Aftermarket (Trico and others): Brands like Trico are designed to match the fit and function of the original pump for a lower cost. They are a reliable choice for this repair and often come complete with the necessary grommet. For most owners, a quality aftermarket pump is the most practical solution.
A Note on the Heated Washer Fluid System Recall
Some 2008-2009 Silverado models were equipped with an optional heated windshield washer system (RPO code XA7). This system was recalled for being a fire hazard (NHTSA Recall 10153B). The official GM fix was to permanently disable the heating module and pay the owner for the loss of the feature. This recall does not affect the function of the standard washer pump itself, but be aware that your truck may have disabled components related to this old system.
DIY Replacement Guide
Replacing the washer pump on this Silverado is a manageable DIY job that takes about an hour. You'll need basic hand tools, a jack, and jack stands.
- Safety First: Park on a level surface, engage the parking brake, and chock the rear wheels.
- Access the Fender Liner: Safely jack up the front driver's side of the truck and remove the wheel.
- Remove Fender Liner Fasteners: Using a trim tool and a 10mm socket, remove the plastic push clips and bolts holding the front half of the plastic fender liner in place.
- Expose the Reservoir: Peel the fender liner back to get a clear view of the washer fluid reservoir and the pump at its base.
- Remove the Old Pump: Place a bucket underneath to catch spilling fluid. Disconnect the electrical plug and the fluid hose from the pump. Then, simply pull the old pump straight out 🎬 See this step-by-step walkthrough of the pump replacement process. of the rubber grommet in the reservoir.
- Install the New Pump: If your new pump came with a new grommet, it's best to replace the old one. Wet the new grommet with washer fluid to help it slide in. Push the new pump firmly into the grommet, reconnect the hose and electrical plug.
- Test and Reassemble: Before putting everything back together, have a helper activate the washer switch to ensure the new pump works. If it sprays, you can reinstall the fender liner and the wheel.
Cost of Windshield Washer Pump Replacement (2008-2013 Silverado 1500)
| Part Type | Part Cost |
|---|---|
| New Aftermarket (Trico) | $38.34 |
| New OEM (ACDelco) | $50 - $80 |
| Shop Labor | $100 - $150 |
Frequently Asked Questions
Can I drive my Silverado with a broken washer pump?
Yes, you can still drive the truck. However, a non-functional washer system can be a serious safety hazard if your windshield becomes obscured by dirt, mud, or road salt, so it should be repaired as soon as possible.
Why does my washer pump run but no fluid sprays out?
If you hear the motor running, the problem isn't electrical. The issue is likely a clog in the washer fluid lines or nozzles, a disconnected hose, or an internal failure in the pump itself where the motor spins but the impeller doesn't move fluid.
My washer pump won't turn off. Is the pump bad?
This is a rare but known issue. A pump that runs continuously, even with the key off, is usually not a bad pump. It is almost always caused by an electrical problem, such as a stuck relay or a fault in the Body Control Module (BCM). This requires advanced electrical diagnosis.
Do I need to drain the reservoir to replace the pump?
You don't have to, but it will make the job much cleaner. The pump is located at the bottom of the tank, so as soon as you pull it out, all the fluid above it will drain out. You can either run the pump until the tank is empty (if it works) or siphon the fluid out before you begin.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84993622 84801575 84409821
The pump is a 12-volt electric motor that press-fits into a rubber grommet at the base of the washer fluid reservoir.
