Ford Escape A/C Clutch Cycle Switch Guide (2008-2013)
If your Escape's air conditioning is blowing warm or not working at all, this small, easy-to-replace switch could be the reason.
- A faulty A/C clutch cycle switch is a common cause of A/C failure and often mimics more serious problems.
- Replacement is a simple DIY task that usually does not require recharging the A/C system.
- Always check A/C system pressure before replacing the switch to rule out low refrigerant as the root cause.
- For maximum reliability, Motorcraft (OEM) is the recommended brand, though aftermarket options offer significant cost savings.
Is Your Escape's A/C Failing? Check the Clutch Cycle Switch
When the air conditioning in your 2008-2013 Ford Escape stops blowing cold, it's easy to assume the worst, like a bad compressor or a major refrigerant leak. However, a common and much simpler point of failure is the A/C clutch cycle switch. This small sensor can fail over time, leading to several noticeable symptoms. Before you schedule an expensive A/C service, understanding this part can save you time and money.
Symptoms of a Bad A/C Clutch Cycle Switch
A failing A/C switch sends incorrect pressure readings to the computer, causing the whole system to malfunction. Look for these common signs:
- A/C Blows Warm Air: The most obvious symptom is a complete lack of cold air. If the switch fails, it won't allow the compressor to turn on and circulate refrigerant.
- Compressor Clutch Doesn't Engage: You can often hear a 'click' from the engine bay when the A/C compressor engages. If you turn the A/C on and hear nothing, and the center part of the compressor pulley isn't spinning, 🎬 Watch this quick diagnostic video to see the compressor clutch in action. the switch may not be sending the 'on' signal.
- Intermittent Cooling: The A/C might work for a few minutes and then stop, or cycle on and off very rapidly. This 'short cycling' can happen when the switch gives erratic readings.
Choosing the Right Aftermarket Switch: Motorcraft vs. Global Parts
For your Ford Escape, you have a choice between the original equipment manufacturer (OEM) part and various aftermarket options.

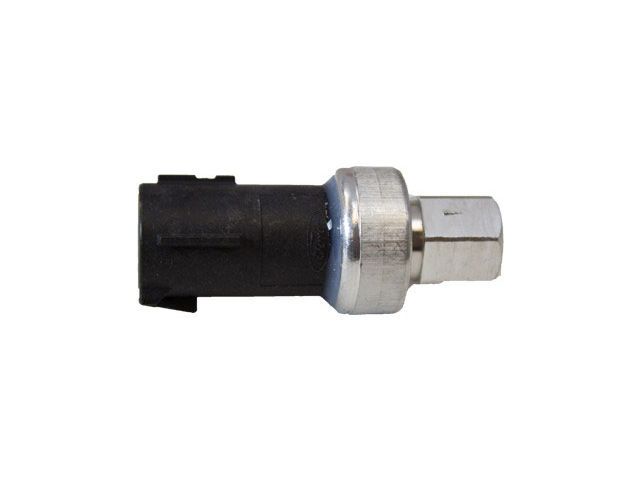

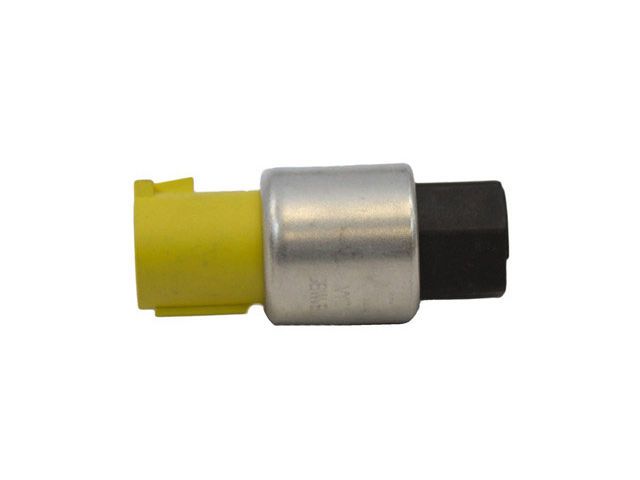

- Motorcraft: This is Ford's own parts brand and is the original equipment (OE) for your vehicle. Choosing Motorcraft guarantees the same fit, quality, and performance as the part that came with your Escape from the factory. For electrical components that communicate with the vehicle's computer, sticking with the OE brand is often the most reliable choice to avoid compatibility issues.

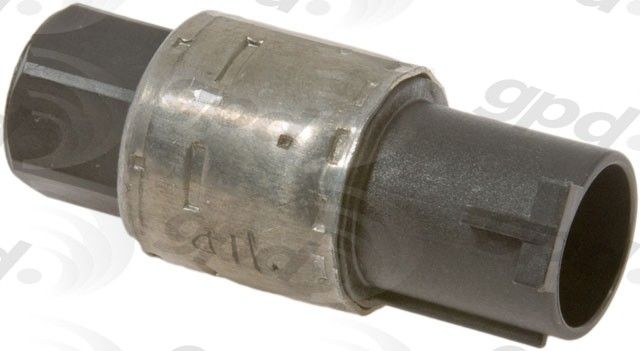

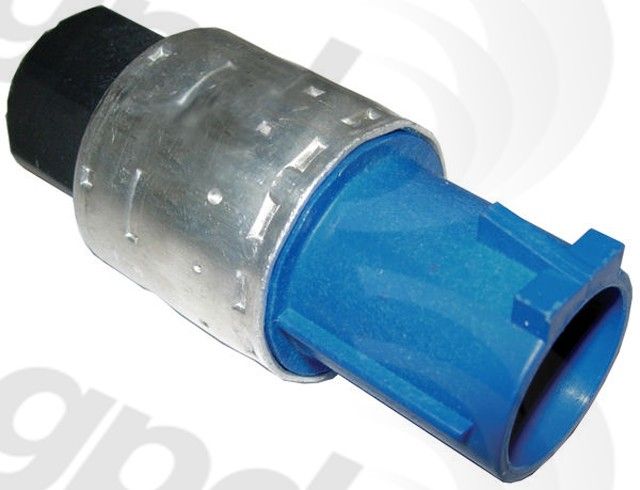

- Global Parts Distributors (GPD): GPD is a large, well-known aftermarket brand that specializes in A/C components. Their parts are a cost-effective alternative to OEM. While generally considered a reliable value brand, aftermarket electrical parts may not always have the same precise calibration or longevity as their Motorcraft counterparts. For a simple switch, many owners find this to be an acceptable trade-off for the lower price.
Cost of Replacing the A/C Clutch Cycle Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $70 - $150 |
| New Aftermarket (Global Parts, etc.) | $21 - $117 |
| Shop Labor | $50 - $125 |
DIY Savings: Because this part can often be replaced in under 30 minutes without special tools or evacuating the A/C system, doing it yourself can save you over $100 in labor costs.
Frequently Asked Questions (FAQ)
Where is the A/C clutch cycle switch located on a 2008-2013 Ford Escape?
The switch is typically found in the engine bay, screwed onto one of the metal A/C lines. On this generation of Escape, it is often located on the high-pressure line near the front of the vehicle, making it relatively easy to access after removing the plastic engine cover.

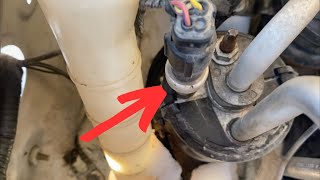

🎬 See exactly where the switch is located on the 3.0L engine.Can I replace the A/C clutch cycle switch myself?
Yes, this is a very DIY-friendly repair. The switch is mounted on a Schrader valve (similar to a tire valve), which prevents refrigerant from escaping when the switch is removed. The process involves unplugging the electrical connector, unscrewing the old switch with a wrench, and installing the new one. No A/C evacuation and recharge is typically needed.
🎬 Follow this step-by-step walkthrough to replace the switch yourself.What happens if I don't replace a faulty switch?
Your air conditioning will not work correctly, if at all. While it won't prevent you from driving the vehicle, you will not have A/C. In some cases, a faulty switch causing rapid cycling could put extra wear on the A/C compressor clutch over time.
Are there any recalls for this part on my Escape?
There are no specific recalls or Technical Service Bulletins (TSBs) from Ford for the A/C clutch cycle switch on the 2008-2013 Escape. There is a TSB for some 2013 models with the 1.6L engine related to a breaking A/C line, but this is a separate issue. No recalls were found for this specific component.
Helpful Videos
Technical Specifications
The A/C Clutch Cycle Switch is a pressure transducer that monitors refrigerant pressure. It is typically located on an A/C line and features an electrical connector and a threaded base that attaches to a Schrader valve.
