2008-2014 Audi A3 HVAC Heater Hose: A Guide to Leaks and Replacement
Addressing common coolant leaks and heating problems in your Audi A3 by understanding the HVAC heater hose.
- Heater hose failure on the 2008-2014 A3 is commonly caused by cracked plastic connectors, not the rubber hose itself.
- Before replacing parts for a 'no heat' issue, check for a clogged heater core as described in Audi's TSB.
- Quality aftermarket brands like CRP and Gates offer a reliable, cost-effective alternative to expensive OEM parts.
- Always verify your engine code (CCTA, CBFA, etc.) before ordering to ensure you get the correct hose assembly.
Common Failures in the A3 Heater Hose System
If you're dealing with a coolant leak or a heater that won't blow hot, the heater hoses are a primary suspect in the 2008-2014 Audi A3. While the rubber hoses themselves can degrade over many years, the most common point of failure is not the hose but the plastic connectors at the ends. These plastic fittings can become brittle from constant heat cycles and eventually crack or break, causing significant coolant leaks. A broken barb on the quick-connect coupler is a frequently reported issue.
Watch for Plastic Connectors
The original heater hoses on this generation of Audi A3 use plastic quick-connect fittings that attach to the heater core at the firewall. These are a known weak point. When a hose fails, it's almost always due to these plastic parts cracking, not the rubber hose splitting.
Symptoms of a Failing Heater Hose
- Puddles of Coolant: You may find pink or purple puddles of G12/G13 coolant under your car, typically towards the back of the engine bay near the firewall.
- Sweet Smell: Leaking coolant has a distinct sweet odor. You might smell it inside or outside the vehicle.
- No Cabin Heat: If the hose is leaking badly, there may not be enough coolant circulating through the heater core to warm the cabin.
- Engine Overheating: A significant coolant leak from any part of the system, including the heater hose, can lead to engine overheating, which is a critical issue.
Is Your Heater Core Clogged?
If your heat is weak or non-existent but you don't have a visible leak, you might have a clogged heater core. An Audi Technical Service Bulletin (TSB) addresses this issue, which can be caused by contamination in the cooling system. A common diagnostic check is to feel both heater hoses when the engine is hot (be careful). If the inlet hose is hot but the outlet hose is significantly cooler, the core is likely blocked. The TSB recommends a specific flushing procedure before you resort to replacing the expensive heater core.
Choosing the Right Aftermarket Heater Hose
When replacing your heater hose, you don't have to buy from the dealer. High-quality aftermarket parts offer a reliable and more affordable solution. For the Audi A3, two excellent brands are CRP and Gates.
Pro Tip: Pay close attention to your engine code (e.g., CCTA, CBFA) when ordering. Different engines may use different hose configurations. The correct part number is essential for a proper fit.
- CRP/Rein: CRP Automotive is a specialist in parts for European vehicles and has a strong reputation for OE-quality components. Their Rein brand hoses are designed to meet or exceed original specifications and are a trusted choice for many technicians.
- Gates: Gates is a global powerhouse in automotive parts and a direct supplier to many car manufacturers, including Audi's parent company, VW Group. Their products are known for matching OEM quality and reliability, making them a safe and dependable option.
Both brands produce molded hoses that replicate the exact shape and fit of the original part, which is crucial for avoiding kinks and ensuring an easy installation.
Estimated Cost Comparison
| Part Type | Price Range |
|---|---|
| New OEM (Dealer) | $85 - $150 |
| New Aftermarket (CRP, Gates) | $45.92 - $73.15 |
| Shop Labor | $180 - $300 |
Frequently Asked Questions (FAQ)
Why is my Audi A3 blowing cold air?
It could be a failing heater hose causing a coolant leak, but it's more likely a clogged heater core if you aren't losing coolant. Air trapped in the system after a coolant service can also be a cause. A mechanic can diagnose whether the issue is a blockage, a bad water pump, or a faulty blend door actuator.
Is an aftermarket heater hose as good as OEM?
For this part, yes, provided you choose a reputable brand. Companies like Gates and CRP/Rein are often OEM suppliers themselves and manufacture their aftermarket parts to very high standards. They offer a perfect fit and reliable performance at a lower cost than dealer parts.
Can I just replace the broken plastic connector?
Sometimes, but it's often not recommended. The heater hose assembly is typically sold as a single unit with the connectors pre-attached for a secure, factory-sealed fit. Trying to rig a new connector onto an old hose can create a new failure point. Given the reasonable cost of a full aftermarket assembly, replacing the entire hose is the safer, more reliable repair.
What is a Technical Service Bulletin (TSB)?
A TSB is a document issued by the manufacturer to its dealers detailing a known problem with a specific vehicle and providing a recommended repair procedure. It is not a recall, but it is an official recognition of a common issue. The TSB for the A3's heating system recommends flushing the heater core to fix clogging.
Technical Specifications

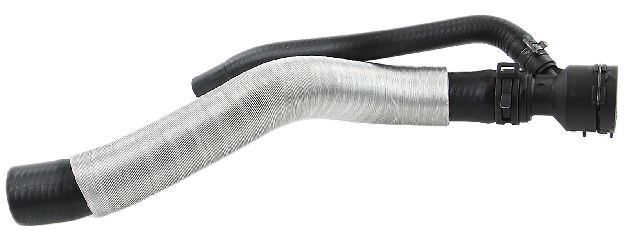

OEM Part Numbers: 1K0122157HH 1K0122073FN 1K0122157HE
Hoses are specific to engine code (e.g., CCTA, CBFA). Part is a molded assembly with integrated quick-connect fittings.
