A Guide to the Engine Coolant Reservoir for the 2008-2014 BMW X5 (E70)
Understand why the plastic coolant expansion tank is a common failure point and how to choose the right replacement for your X5.
- Coolant reservoir failure is a very common issue on the 2008-2014 X5 due to plastic aging from heat and pressure.
- Symptoms include low coolant warnings, visible leaks under the passenger side, and cracks on the tank seams.
- Always replace the reservoir cap when replacing the tank to ensure the system stays properly pressurized.
- Choosing an OEM-supplier brand like Mahle or CRP/Rein offers the best quality and reliability for the price.
Signs of a Failing Coolant Reservoir
The plastic used in your X5's original coolant tank becomes brittle over time due to constant temperature changes and pressure. This leads to cracks and leaks, which is a very common issue for these vehicles. Here’s what to look for:
- Low Coolant Warning Light: An obvious first sign is the low coolant warning on your dashboard. While this can mean you just need a top-off, frequent warnings point to a leak.
- Visible Cracks: Hairline cracks often form along the seams where the top and bottom halves of the tank are joined. You may also see cracks near the hose connections. 🎬 See exactly where these reservoirs tend to leak and crack.
- Coolant Puddles: Finding a puddle of green or blue fluid under the front passenger side of your X5 is a sure sign of a leak.
- Steam from the Engine Bay: If the tank has a significant crack, pressurized hot coolant can spray out as steam, especially when the engine is at operating temperature.
A Note on the Cap
Sometimes, a leak isn't the tank's fault. The reservoir cap is designed to hold a specific amount of pressure (2.0 bar). If the cap fails, it can either release pressure too soon, causing coolant to boil over, or not vent excess pressure, which can cause the tank or hoses to crack. It is highly recommended to replace the cap whenever you replace the reservoir.
Choosing the Right Aftermarket Reservoir
You don't need to buy a Genuine BMW part to get a reliable replacement. Many aftermarket brands offer quality parts, some of which are made by the same companies that supply BMW directly. Here’s a breakdown of brand quality tiers based on owner experiences:

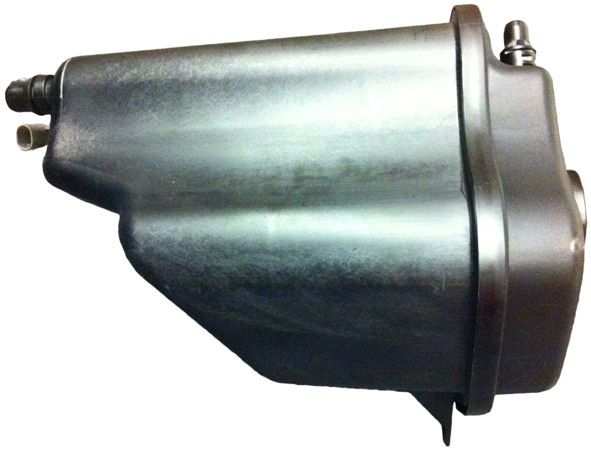

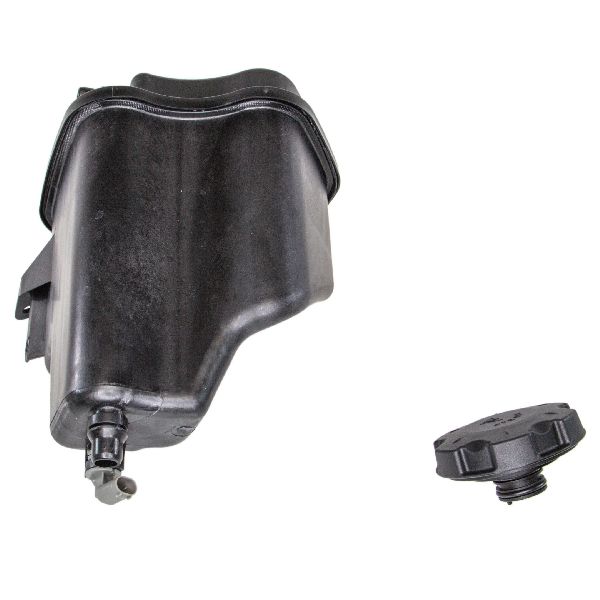

- OEM-Tier (Mahle, CRP/Rein): Brands like Mahle and CRP (under the Rein Automotive brand) are often Original Equipment Manufacturers (OEM) for BMW. This means their parts are virtually identical to the Genuine BMW part without the high dealership price. They are widely considered the best and most reliable aftermarket choice.

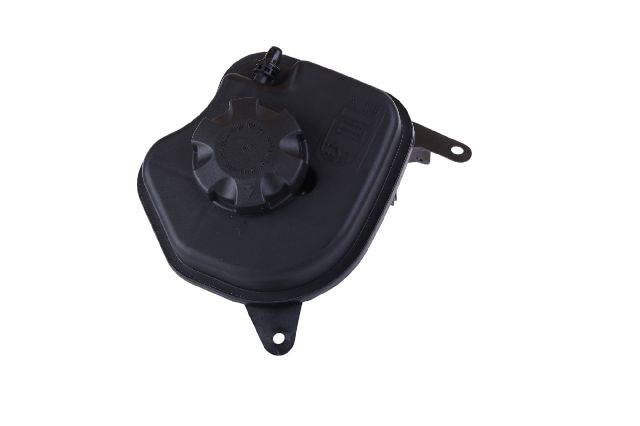

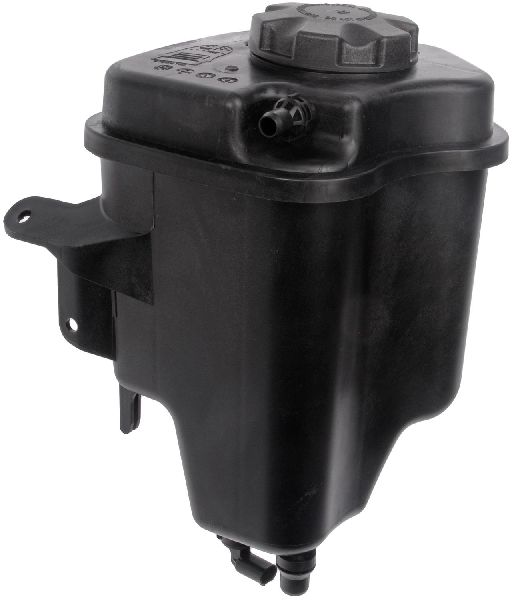

- Reputable Aftermarket (Dorman, Nissens): These brands are well-known in the aftermarket world. While generally reliable, some owners have reported occasional issues with fit or sensor quality compared to OEM-tier brands. They can be a good budget-friendly option if an OEM-tier part isn't available.
- Economy Brands (URO Parts, Vaico, Global Parts): These brands are typically the most affordable. However, owner reviews are mixed, with some reporting premature failures, leaks, or sensor issues. While they can get you back on the road, they may not have the same longevity as higher-quality options.
Pro Tip: Check for Inclusions
When ordering, check if the new reservoir comes with a new cap and a new coolant level sensor. Many kits include all three parts, which is the ideal way to perform the replacement. If not, you should purchase a new cap separately.
Installation Overview
Replacing the coolant reservoir on the E70 X5 is a straightforward DIY job that most owners can complete in under an hour. The tank is easily accessible in the engine bay. The basic steps involve draining the coolant from the tank, disconnecting two hoses and an electrical sensor, removing two mounting bolts, and swapping in the new tank.
🎬 Follow this step-by-step guide to replace your expansion tank.Known Issues, Recalls, and TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from BMW or the NHTSA for the coolant reservoir itself on the 2008-2014 X5. However, the part's tendency to fail from heat and age is a widely documented issue among owners. There have been recalls for other cooling system components, like the electric water pump on certain models, but these do not directly involve the reservoir.
Frequently Asked Questions
Why does the original BMW X5 coolant tank fail so often?
The tank is made of plastic and is constantly exposed to high pressure and extreme temperature swings from hot to cold. Over many years and miles, this causes the plastic to become brittle and crack, typically along the seams.
🎬 Watch this video to understand why these plastic tanks fail.Is the coolant level sensor included with aftermarket tanks?
Most quality aftermarket kits include the coolant level sensor already installed in the tank. However, you should always verify this in the product description before purchasing. If it's not included, you can often reuse your old one if it is still working, but it's wise to replace it for a complete repair.
Can I reuse my old coolant?
It is not recommended. Coolant degrades over time. Since you are replacing a key component of the cooling system, it is the perfect time to flush the system and refill with fresh, BMW-approved G48 blue coolant mixed 50/50 with distilled water.
My new tank makes a rattling sound. Is it broken?
No, this is normal. The rattling sound is the float for the coolant level sensor moving inside the tank.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17138621092 17137552546 17137647290
Material: Plastic, Pressure Rating: 2.0 Bar (Cap)
