Engine Coolant Thermostat Guide for 2008-2014 Chevrolet Express 1500 Vans
Keep your Express 1500's engine temperature in check by understanding thermostat failure and choosing the right replacement.
- The most common failure is the thermostat sticking open, causing a P0128 code, low temperature readings, and poor cabin heat.
- For best results and reliability, choose an ACDelco OEM-equivalent thermostat.
- Always replace the thermostat as a complete assembly with a new housing and gasket to prevent leaks.
- Do not use a lower-temperature 'performance' thermostat on a stock engine, as it can harm fuel economy and trigger engine codes.
Is Your Thermostat Failing?
A thermostat is a common wear item and will eventually need replacement. In the 2008-2014 Express 1500, which uses Gen IV Vortec V8 engines, a failing thermostat most often gets stuck open. This is a fail-safe design to prevent catastrophic overheating, but it creates its own set of problems.
Key Symptoms of a Bad Thermostat:
🎬 Watch: A quick guide to identifying common thermostat failure symptoms.- Engine Not Warming Up: The most common sign is the temperature gauge staying low, well below the normal 210°F mark, especially on the highway.
- Check Engine Light: A thermostat stuck open will almost always trigger a Check Engine Light with code P0128 (Coolant Temperature Below Thermostat Regulating Temperature).
- Poor Heater Performance: If the engine can't get up to temperature, the coolant won't be hot enough to provide good heat inside the van's cabin. This is especially noticeable in winter.
- Decreased Fuel Economy: An engine that runs too cool stays in its warm-up fuel enrichment mode longer, burning more gas than necessary.
- Overheating (Less Common): While less frequent, a thermostat can fail by sticking closed. This is a critical issue that will cause the engine to overheat quickly, leading to severe engine damage. If you see the temperature gauge spike into the red, pull over and shut off the engine immediately.
Warning: P0128 Isn't Just the Thermostat
While a bad thermostat is the number one cause of a P0128 code, other issues can trigger it. Always check your coolant level first, as low coolant can cause similar symptoms. A faulty coolant temperature sensor is another, less common, possibility.
🎬 See this video for troubleshooting and fixing the P0128 code.Choosing the Right Aftermarket Thermostat
For the Express 1500, you don't necessarily need to pay dealership prices for a reliable part. However, quality varies significantly among aftermarket brands. The thermostat is not a part you want to fail, so choosing a reputable brand is important.
Brand Quality Tiers:
- Tier 1 (OEM or Equivalent): ACDelco
ACDelco is GM's official parts brand and is widely considered the best choice for reliability and proper function. It ensures your engine operates at the correct temperature specified by the manufacturer. Some forum users report that even ACDelco boxes may contain parts made by other manufacturers like Motorad, but it's still the most recommended option. - Tier 2 (Reputable Aftermarket): Gates, Stant
Gates is a well-respected name in cooling systems. Their thermostats are a solid alternative to OEM. Stant is another long-standing brand, with their "SuperStat" line being a popular choice that is designed to fail in the open position. - Tier 3 (Budget Options): Motorad
Motorad is a very common budget-friendly brand found in many auto parts stores. While some find them acceptable, many professional mechanics and DIYers report higher failure rates or incorrect temperature regulation right out of the box. Given the relatively low cost of a quality thermostat and the labor involved, it's often worth spending a few extra dollars for a Tier 1 or Tier 2 brand. - Performance Option: Mishimoto
Mishimoto specializes in performance cooling parts. They may offer thermostats that open at a lower temperature (e.g., 160°F or 180°F). These are intended for modified, high-performance engines and are not recommended for a stock Express van, as running the engine too cool can negatively impact fuel economy and emissions.
Pro Tip: Replace as a Kit
The thermostat on these vans is often sold as a unit with the housing and a new gasket or O-ring. It is highly recommended to replace all components at once to ensure a leak-free seal. The original spring-style hose clamps can also weaken over time; consider replacing them with new worm-drive clamps for peace of mind.
Cost of Replacing an Engine Coolant Thermostat
| Item | Estimated Cost |
|---|---|
| New Aftermarket Thermostat (Part Only) | $14 - $70 |
| New OEM Thermostat (Part Only) | $35 - $80 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $135 - $280 |
Frequently Asked Questions
Can I drive my Express van with a bad thermostat?
If it's stuck open (engine running cool, P0128 code), you can drive it short-term to get to a repair shop, but you'll have poor heat and fuel economy. If it's stuck closed (engine overheating), do NOT drive the vehicle. Pull over immediately to prevent catastrophic engine damage.
Where is the thermostat located on the 2008-2014 Express 1500?
On the V8 engines (like the 5.3L), the thermostat is located at the front of the engine, on the driver's side, where the upper radiator hose connects to the water pump housing. On V6 models, it's in a similar location where the upper radiator hose meets the engine.

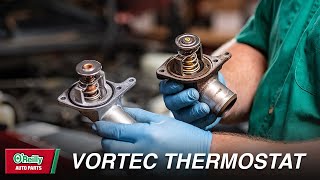

🎬 Watch: Step-by-step walkthrough for replacing the thermostat and housing.Are there any recalls for the thermostat on my van?
No. There are no specific recalls from GM or NHTSA for engine coolant thermostat failure on the 2008-2014 Chevrolet Express 1500. Problems with the thermostat are addressed through general service and repair.
What temperature thermostat should I use?
For a stock Chevrolet Express, you should use a thermostat with the factory-specified temperature, which is typically 187°F or 195°F. Using a lower-temperature thermostat can trigger a P0128 code and cause the engine to run inefficiently.
Helpful Videos

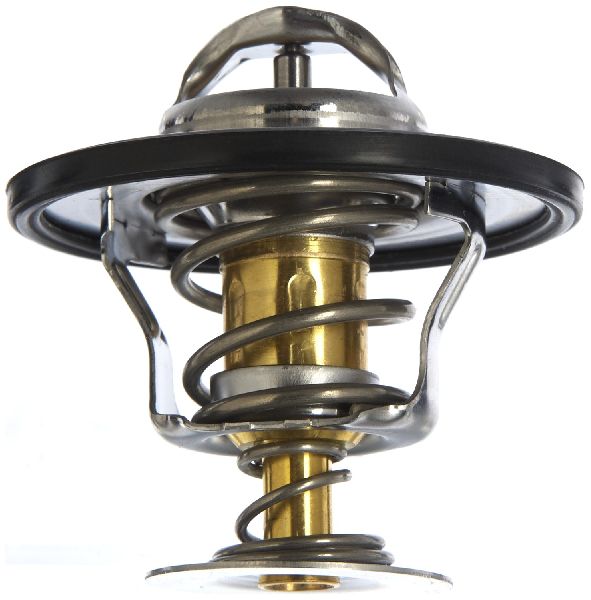

Technical Specifications
OEM Part Numbers: 12632948 15-11057
Standard Temperature: 187°F or 195°F. Includes thermostat, housing, and seal/gasket.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
