Replacing the Engine Oil Pan on Your 2008-2014 Chevrolet Express 1500
Dealing with an oil leak? Here’s what you need to know before buying a new oil pan for your Express van.
- The most common cause of an oil pan leak on these vans is a failed gasket, not a cracked pan.
- There are no major recalls or service bulletins for oil pan defects on the 2008-2014 Express 1500.
- Aftermarket brands like Dorman and Spectra offer a reliable and cost-effective replacement compared to more expensive OEM parts.
- Always check the drain plug and make sure the leak isn't coming from higher up on the engine before condemning the oil pan.
Signs of a Failing Oil Pan
The most obvious sign of a problem is an oil leak. Because the pan is at the very bottom of the engine, leaks are easy to spot.
- Oil Puddles: Dark brown or black spots on your driveway or parking spot are a classic sign of an oil pan or gasket leak.
- Low Oil Warning Light: If the leak is bad enough, your van's oil level will drop, triggering the low oil pressure or low oil level light on your dashboard. This is a serious warning that requires immediate attention to prevent engine damage.
- Burning Oil Smell: If oil leaks onto the hot exhaust pipes, you'll notice a distinct burning smell.
- Visible Damage: In some cases, you might see physical damage like cracks or dents from hitting road debris. A stripped or leaking drain plug is also a common failure point that requires pan replacement.
Common Causes of Oil Pan Leaks
For the 2008-2014 Chevrolet Express 1500, oil pan leaks are more often caused by a failed gasket or seal than a cracked pan. Over time, the gasket that seals the pan to the engine block can become hard and brittle, allowing oil to seep out. Another frequent issue is a leaking drain plug, which can be caused by a worn-out seal or from being over-tightened during an oil change. Before you replace the entire pan, make sure the leak isn't coming from a higher point on the engine, like the valve cover gaskets, and dripping down.
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database and technical service bulletins (TSBs) show no specific recalls or widespread TSBs for engine oil pan failure on the 2008-2014 Chevrolet Express 1500. While there are recalls for other components on these vans, the oil pan itself is not a known defect. Failures are typically due to age, gasket wear, or external damage.
Choosing the Right Aftermarket Oil Pan
When replacing your oil pan, you have the choice between an original equipment (OEM) part from a dealer or an aftermarket part. For a component like an oil pan, a quality aftermarket part offers excellent value and reliability.
OEM vs. Aftermarket
An OEM pan will be a direct replacement but comes at a higher cost. Aftermarket pans from reputable brands are designed to meet or exceed original specifications, often at a much lower price. For this specific part, where the primary failure is often a simple gasket, a new aftermarket pan with a fresh gasket and drain plug is a smart and cost-effective repair.
Brand Tiers: Dorman and Spectra

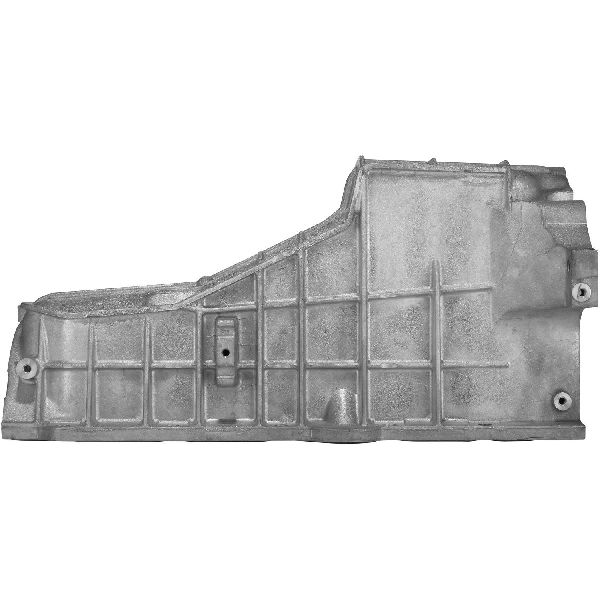

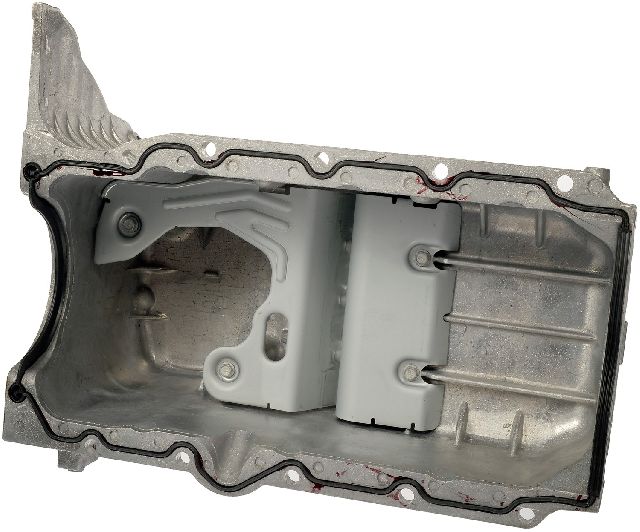

Dorman and Spectra are two common aftermarket brands available for your Express van. Both are considered solid, reliable choices for this part.
- Good / Standard Replacement (Dorman, Spectra): Both brands offer direct-fit replacement oil pans that are comparable in quality. Forum discussions show that mechanics and DIYers use both brands with success. Sometimes the parts are so similar they appear to be made in the same factory. When choosing between them, compare the price and what's included. Some kits come with a new drain plug and gasket, which can save you a separate purchase. Both brands typically use a corrosion-resistant coating to ensure durability.
How Much Does an Oil Pan Replacement Cost?
The cost of replacing an oil pan is mostly labor. The job requires draining the oil, removing components that are in the way, replacing the pan, and then refilling the oil.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $192 - $497 |
| New OEM Oil Pan | $250 - $450 |
| Shop Labor | $360 - $550 |
| Total Professional Replacement | $630 - $950 |
Note: Costs are estimates and will vary based on your location and the specific rates of your repair shop.
Frequently Asked Questions
Is the leak from the pan or just the gasket?
Most of the time, the leak is from the gasket between the pan and the engine block. However, if the pan's sealing surface is warped or corroded, or if the drain plug threads are stripped, you must replace the entire pan. Since the labor to remove the pan is the same, it's often a good idea to replace the pan and gasket together, especially on a high-mileage vehicle.
Can I install a new oil pan myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill and the right tools. You will need a good socket set, a torque wrench, a drain pan, and potentially some extensions to reach all the bolts. Access can be tight on a van. You must also be comfortable working safely under your vehicle. The replacement involves draining the oil, possibly moving oil cooler lines out of the way, unbolting the old pan, cleaning the engine block surface meticulously, and then installing the new pan and gasket.
What's the difference between steel and aluminum pans?
Both materials are used for oil pans. Steel pans are strong and can often withstand minor impacts by denting rather than cracking. Cast aluminum pans are more rigid and can help add strength to the engine block, but they are more likely to crack or break upon a sharp impact. Both aftermarket and OEM options are available in either material, and the replacement should match the design of the original.
Should I get a new drain plug with the pan?
Yes. It is highly recommended. Many aftermarket oil pans, including those from Dorman, come with a new drain plug and seal already installed. This eliminates a very common leak point and ensures you don't have to reuse an old, worn, or potentially damaged plug.
Technical Specifications
Pans are typically made of stamped steel or cast aluminum. Ensure the replacement part specifies compatibility with your van's engine (4.3L V6, 4.8L V8, 5.3L V8). Many aftermarket pans include a new drain plug and gasket.
