A Guide to the Engine Oil Pressure Switch for the 2008-2014 Nissan Rogue
Understand the signs of a failing oil pressure switch and how to choose the right replacement for your Rogue.
- A lit oil pressure light is a critical warning; always check your oil level immediately before assuming the switch is bad.
- The most common failures are false warnings (light on with good pressure) and oil leaks directly from the switch body.
- Replacement is a simple, DIY-friendly job that requires removing the passenger-side wheel for access.
- For this critical part, consider a reputable aftermarket brand like Beck Arnley or Standard Ignition over the cheapest option for better reliability.
Understanding the Role of Your Rogue's Oil Pressure Switch
The engine oil pressure switch in your Nissan Rogue is a small but vital component. It's a sensor that constantly checks the oil pressure inside your engine. When the engine is off, there's no pressure, and the switch is in one position. Once you start the engine and the oil pump builds pressure, the switch changes position. If that pressure ever falls to a dangerously low level while you're driving, the switch triggers the oil warning light on your instrument cluster. This is your cue to pull over immediately and check the situation. Ignoring this light can lead to severe engine damage.
Common Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can cause confusing symptoms. It can fail in a few ways: by leaking, by sending a false signal, or by not sending a signal at all. Here’s what to look for:
- Oil Pressure Light On: The most obvious sign is the oil pressure warning light illuminating on your dash, even when you know the oil level is correct.
- Flickering Oil Light: The light may flicker or come on intermittently, especially at idle or when the engine is hot. 🎬 Watch: What to do if your oil light is flickering. This can indicate a failing switch or a genuine oil pressure problem.
- Visible Oil Leak: The switch itself can develop a leak. Oil may seep from the plastic connector or the metal body of the switch, dripping onto the engine block or the ground. 🎬 See how a leaking sensor is diagnosed and fixed. This is a common failure point for these switches.
- No Oil Light When Key is On: Before you start the engine, the oil light should be on. If it doesn't illuminate with the key in the 'on' position, the switch or the bulb may have failed.
Is It the Switch or the Engine?
An oil pressure light is a serious warning. The first step is to immediately check your oil level. If the level is fine, the problem could be a faulty switch. However, it could also be a real, engine-damaging low-pressure problem. Never assume it's just the switch. It's wise to stop driving until the issue is properly diagnosed by checking the pressure with a mechanical gauge.
Choosing the Right Aftermarket Replacement Part
When replacing the oil pressure switch on your 2008-2014 Rogue, you have options ranging from budget-friendly to premium aftermarket. Since this part is critical for engine safety, quality matters.

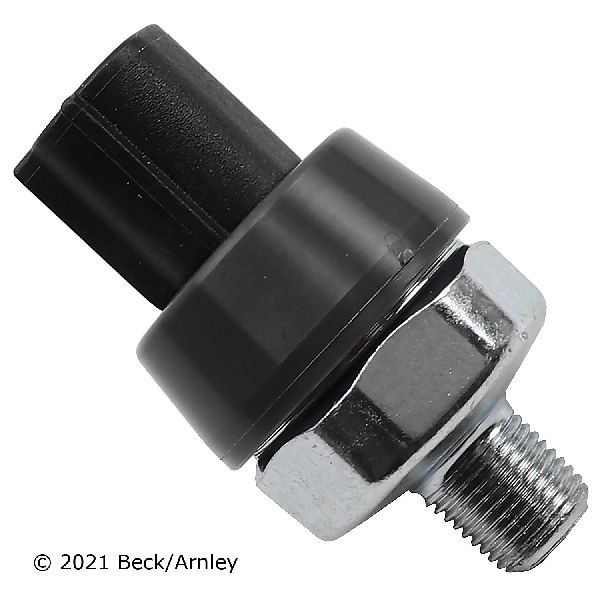

- Premium Aftermarket (e.g., Beck Arnley, some Standard Ignition): Brands like Beck Arnley have a long-standing reputation for sourcing parts from the original equipment (OE) manufacturers for Japanese vehicles. This often means you are getting a part of similar quality to the one from the dealer, sometimes even in OE packaging. However, be aware that sourcing can change, so quality can sometimes vary.
- Standard Replacement (e.g., Standard Ignition, Facet, Vemo): These brands offer a middle ground. They are generally reliable and meet standard specifications. Standard Motor Products (SMP) is a large manufacturer, but quality can sometimes be inconsistent, making it a bit of a gamble.
- Economy Brands (e.g., Global Parts, Rostra Powertrain): These are typically the most affordable options. While they can be a good choice for a tight budget, their longevity and reliability may not match that of more expensive brands. For a part this critical, it's often worth spending a few extra dollars for a better-quality switch.
Check the Threads
Some Nissan parts use a specific thread pitch that can be slightly different from generic aftermarket parts. When you get your new switch, compare it to the old one before trying to install it. A part that doesn't thread in smoothly by hand should not be forced. Also, check if the new switch has sealant pre-applied to the threads; if not, you may need to use a small amount of appropriate thread sealant or Teflon tape.
Cost of Replacing the Oil Pressure Switch
Replacing the oil pressure switch is not an expensive repair. The parts are affordable, and the labor is straightforward.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $40 - $70 |
| New Aftermarket Part | $15 - $125 |
| Shop Labor | $130 - $200 |
| Total Professional Repair | $175 - $325 |
Frequently Asked Questions (FAQ)
Is it safe to drive with a bad oil pressure switch?
No. If the switch is faulty, it cannot warn you of a genuine low oil pressure event, which could destroy your engine. If the switch is causing a false warning, you have no way of knowing if a real problem develops. It is best to replace the part as soon as possible.
Where is the oil pressure switch located on a 2008-2014 Nissan Rogue?
The oil pressure switch is located on the lower part of the engine block. To access it, you typically need to remove the front passenger-side wheel and a plastic splash guard behind it. The switch is screwed into the engine and has a single electrical connector attached.
Can I replace the oil pressure switch myself?
Yes, this is a DIY-friendly job for someone with basic mechanical skills and tools. You will need a floor jack, jack stands, a wheel lug wrench, and a deep socket (typically 1 1/16" or 27mm). The entire process should take less than an hour.
🎬 Follow this DIY guide to replace the switch with basic tools.Are there any recalls for the oil pressure switch on the 2008-2014 Rogue?
No, based on searches of the National Highway Traffic Safety Administration (NHTSA) database and other public records, there are no specific recalls or technical service bulletins (TSBs) for a faulty engine oil pressure switch on the 2008-2014 Nissan Rogue.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25240-4M40E
Connector: 1-Pin, Thread: Tapered, Socket Size: 1 1/16 inch or 27mm
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
